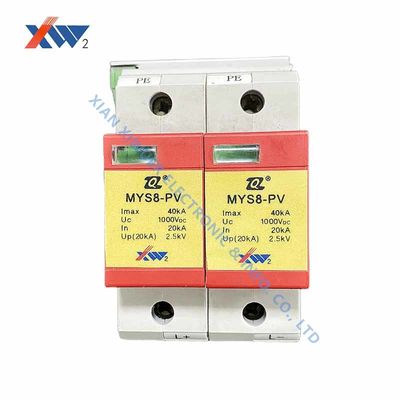

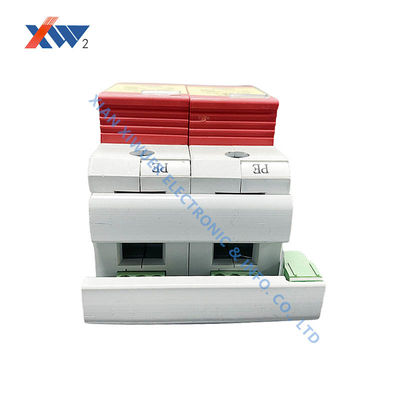

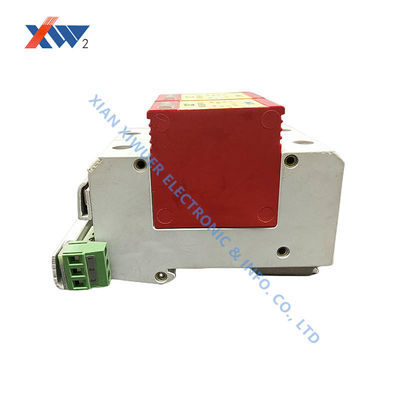

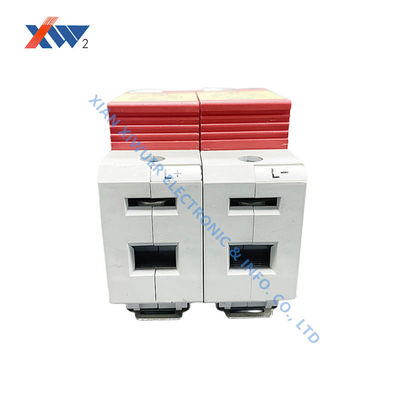

MYS8 PV Surge Protective Device , Small Solar Surge Protector

     MYS8-PV Type surge protector is applied specially to solar energy photovoltaic system, mainly used for the surge protection for solar energy photovoltaic power system, with paralleled connection, having no any affect on the normal work of the original system.

• Great absorbing capability , low clamping voltage.
• Fast response(≤100ns)

• Zero power consumption with no leakage current.

• With dual self-protection circuit of over current and over voltage.

• Available with remote monitoring alarm contacts.

• With indicators, green shows normal working, red shows failure.

• Modular design, with standard rail installation


Technical parameters


Note:
The section area of the positive and negative wire shall be not less than 10mm², not less than 16 mm² for that of the ground wire, and Maximum 1.5 mm² for that of the remote alarm wire.


Attention:
Protective device of less than 32A has to be set for the branch circuit of the product.

COMPANY OVERVIEW


      Xian Xiwuer Electronic & Info. Co., Ltd. is located in Beiguan, Xi'an city cover in an area of 4000 ㎡, with employees of 2300, and about 580 technicians, amongthem, there are 135 engineers, 21 senior engineers. The company has total assets of 315 million RMB Yuan, fixed assets of 137 million RMB Yuan, which is a large enterprise mainly engaged in producing electronic components. The company has the largest production scale of Varistor,SPD( Surge Protective Device)and HV Ceramic Capacitor in China, with the following main products :

1. Varistors & SPD

4. Thermistor

       The main production line and inspection equipment & instrument are imported from Japan, America, Belgium and Switzerland etc. The annual production capacity of the two leading products has been reached to 5 million pcs and 150 million pcs respectively, with the market holding rate in China of about 10% and 30% respectively by continually technical innovation. Varistors and SPD produced by the company enjoyed great reputation in the international market, being exported to many countries and areas such as Japan,USA, Hong Kong etc., with the customers like Philips India and GE in USA. are already sold to LG company in Korea with large quantity, and also to Spainand India etc.

       Not only the products quality and technical capacity, but also the completeness of the models are all in the leading place in China. The main products have got CCEE, UL, VDE & TUV approval. The quality system was set up according to the requirement of ISO9000 since 1992, and has passed ISO9002 approval by DNV International Organization in July 1994, then got ISO9001 certification by British organization in 2000, by then we are both the first one who are approved by ISO9000 certification in the North-west area of China and the same occupation. We passed all the successive periodical audit and smoothly get the new certificate registered in Holland in Aug.1997; the quality system is strengthened and completed constantly. And we also got ISO18000 certificate.

       We believe we are able to supply satisfied goods and service to customers home and abroad with the most reasonable price and the shortest delivery time, on basis of our excellent quality assurance capacity, technical development capacity and rich manufacturing experiences.
