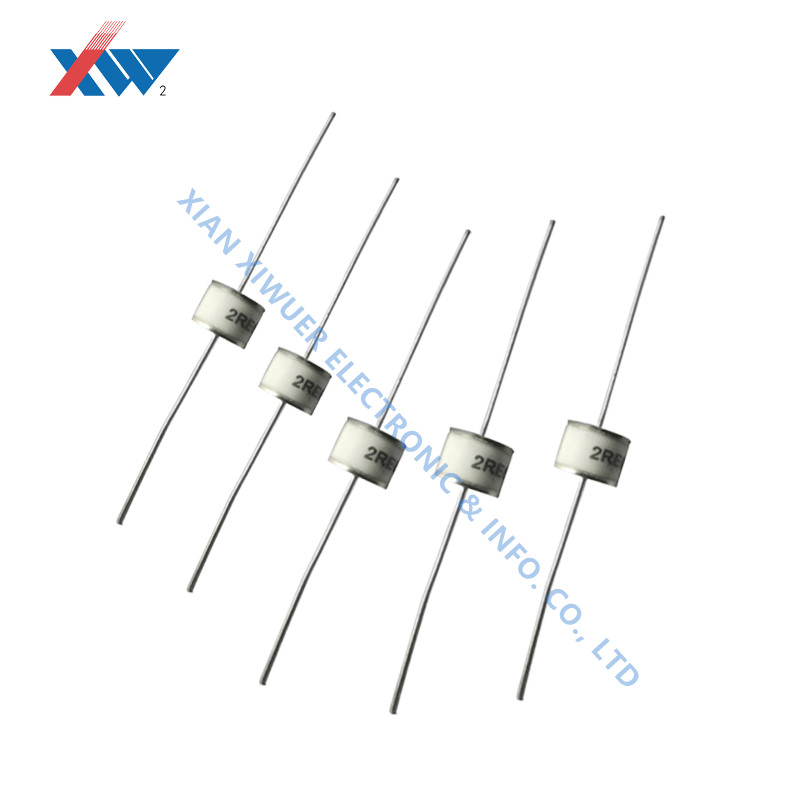

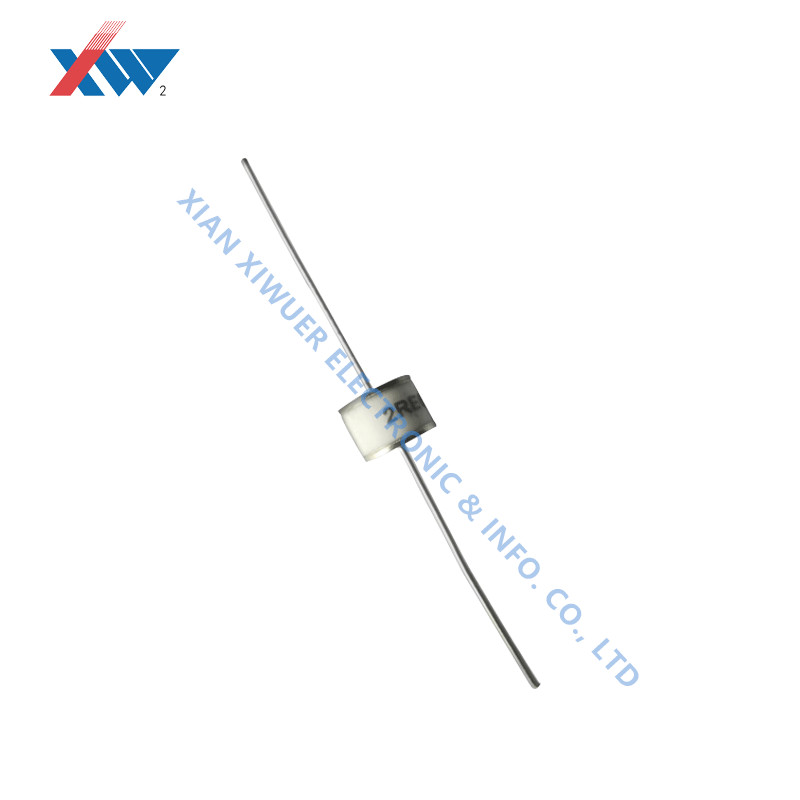

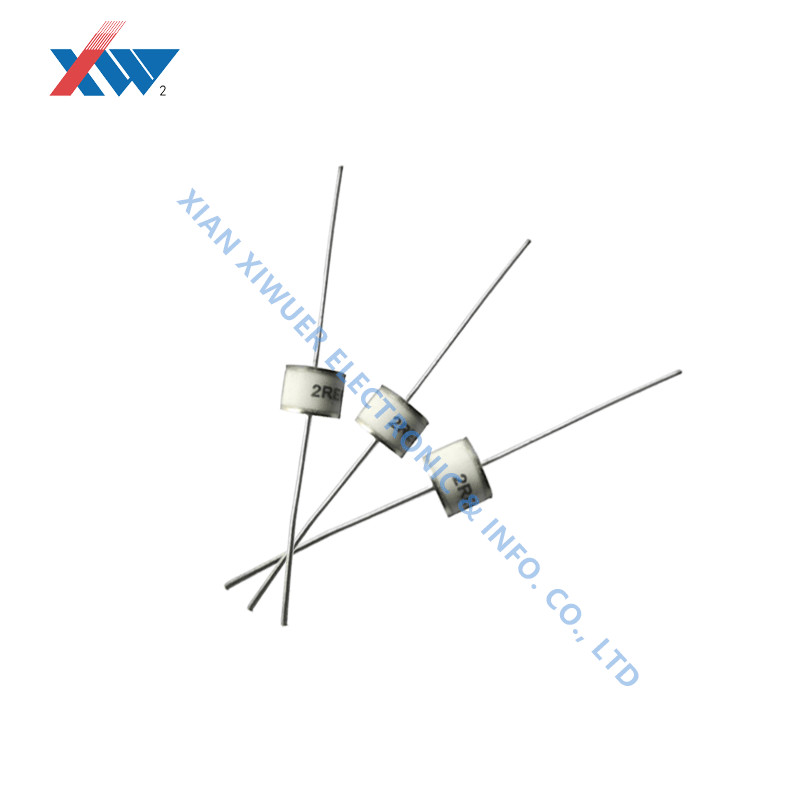

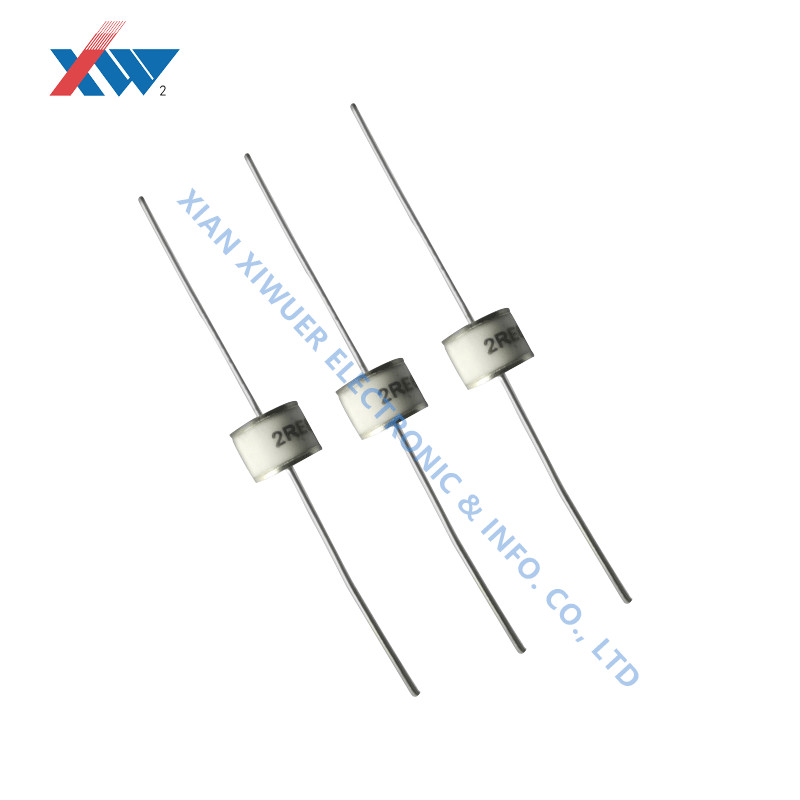

Through hole 2 pole GDT 600V 10KA 2RE600L-8 circuit protection gas discharge tube surge arresters

  • Through hole 2 pole GDT 600V 10KA 2RE600L-8 circuit protection gas discharge tube surge arresters
  • Through hole 2 pole GDT 600V 10KA 2RE600L-8 circuit protection gas discharge tube surge arresters
  • Through hole 2 pole GDT 600V 10KA 2RE600L-8 circuit protection gas discharge tube surge arresters
  • Through hole 2 pole GDT 600V 10KA 2RE600L-8 circuit protection gas discharge tube surge arresters
Place of Origin XIAN, CHINA
Brand Name XIWUER
Certification ISO9001,ISO14001,ISO45001
Model Number 2RE600L-8
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton
Delivery Time 5-7 days
Payment Terms L/C, T/T
Supply Ability 3,000,000 pcs a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
DC Spark-over Voltage 100V/S 600V±20% Maximum Impulse Spark-over Voltage 1KV/us 1300V
Impulse Life Test 10/1000us 100A 500 Times Minimum Insulation Resistance 250V Test Voltage
Nominal Impulse Discharge Current 10kA Alternating Discharge Current 10A
Leave a Message
Product Description

Through hole 2 pole GDT 600V 10KA 2RE600L-8 circuit protection gas discharge tube surge arresters



Features



  • No radioactivity
  • RoHS compliant
  • Low insertion loss
  • Excellent response to fast-rising transients
  • Ultra-low capacitance



Application

  • Test equipment
  • Power supplies
  • Telecom SLIC protection
  • Broadband equipment



 Technical Parameter



Part Number

DC

Spark-over

Voltage

Maximum

Impulse

Spark-over

Voltage

Impulse

Life

Test

Minimum

Insulation

Resistance

Maximum

Capacitance

Nominal

Impulse

Discharge

Current

Alternating

Discharge

Current

Device

Marking

Code
100V/S 1KV/us

10/1000us

100A

Test

Voltage

 (GΩ) (1MHz 1V) 8/20us 50Hz,1S
( V ) ( V ) (times) DC ( V) (pF) (KA) (A)
2RE075L-8 2RE075S-8 75±20% 600 500 25 1 1.5 10 10 2RE075-8
2RE090L-8 2RE090S-8 90±20% 600 500 50 1 1.5 10 10 2RE090-8
2RE120L-8 2RE120S-8 120±20% 600 500 50 1 1.5 10 10 2RE120-8
2RE150L-8 2RE150S-8 150±20% 700 500 100 1 1.5 10 10 2RE150-8
2RE230L-8 2RE230S-8 230±20% 700 500 100 1 1.5 10 10 2RE230-8
2RE250L-8 2RE250S-8 250±20% 800 500 100 1 1.5 10 10 2RE250-8
2RE300L-8 2RE300S-8 300±20% 900 500 100 1 1.5 10 10 2RE300-8
2RE350L-8 2RE350S-8 350±20% 900 500 100 1 1.5 10 10 2RE350-8
2RE400L-8 2RE400S-8 400±20% 1000 500 100 1 1.5 10 10 2RE400-8
2RE470L-8 2RE470S-8 470±20% 1100 500 250 1 1.5 10 10 2RE470-8
2RE600L-8 2RE600S-8 600±20% 1300 500 250 1 1.5 10 10 2RE600-8
2RE800L-8 2RE800S-8 800±20% 1500 500 250 1 1.5 10 10 2RE800-8



Dimension
