OEM Poles Distance Vacuum Interrupter Switch 12kV 275mm 1600A
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Voltage | 12kV 24kV | Rated Current | 630A, 1250A |
|---|---|---|---|
| Frequency | 50/60 Hz | Mechanical Life | 3000times |
| Highlight | OEM Vacuum Interrupter Switch,Poles Vacuum Interrupter Switch,275mm vcb interrupter |
||
Product Description

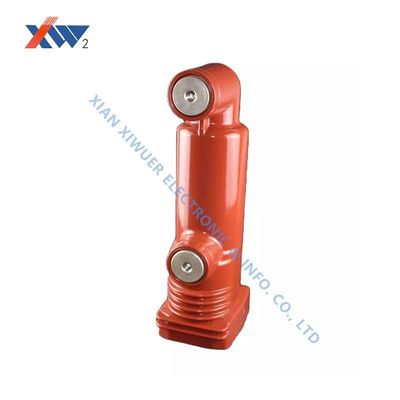

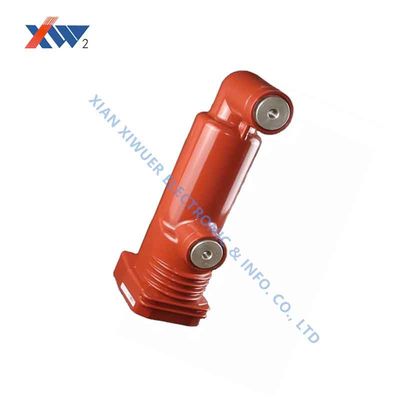

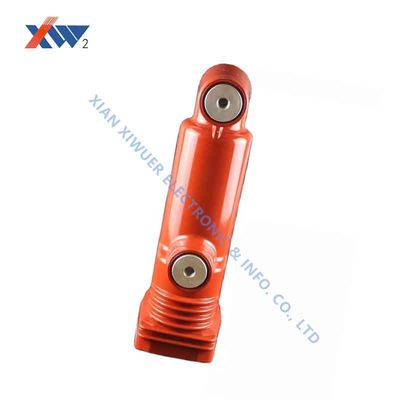

OEM 24KV 12kV 275mm 12kv 1250/1600A Poles Distance Vacuum Interrupter / Embedded Poles block type sensor with voltage divider inside
Technical Parameter
| Rated Voltage: | 12kv | |
| Rated current: | 1250/1600A | |
| Rate frequency: | 50Hz | |
| Rated short-time power frequency withstand voltage(1min) | 48kv | |
| Rated lighting implus withstand current | 85kv | |
| Rated short-time withstand current(4s) | 25/31.5kA | |
| Rated peak withstand current | 63/80kA | |
| Rated short-circuit current | 63/80kA | |
| Rated short-circuit breaking current | 25/31.5kA | |
| Breaking operations of rated short circuit breaking current | 30 times | |
| Rated single capacitor bank breaking current * | 630A | |
| Rated back-to-back cap acitor breaking current | 400A | |
| Mechanical life | 30000times | |
| Contact closing force due to bellows and atmosphere | 100±30N | |
| Counterforce at rated contact stroke | 200±30N | |
| ciruit resistance at rated contact force | ≤20μΩ | |
| Shelf life | 20 years | |
| Contact erosion limit | 3mm | |
| Part discharge | ≤2pC | |
| Mechanical Date Required for Matched Vacuum Switchgear | ||
| Rated contact strok | 9±1mm | |
| Contact connection stroke | 4±1mm | |
| Average opening speed | 1.1±0.2m/s | |
| Average closing speed | 0.8±0.2m/s | |
| Added contact force | 3000±200N | |
| contact bouncing duration at closing operation | ≤2ms | |
| Out of simultaneity of contact closing and opening | ≤2ms | |
| Max.overtravel | ≤2mm | |
| Note:* Rated characteristics be given on request | ||
