ODM ZW20 High Voltage Transformers Zero Sequence Voltage Circuit Breaker

  • ODM ZW20 High Voltage Transformers Zero Sequence Voltage Circuit Breaker
  • ODM ZW20 High Voltage Transformers Zero Sequence Voltage Circuit Breaker
Place of Origin XIAN,CHINA
Brand Name XIWUER
Certification ISO9001,ISO14001,ISO45001
Model Number ZW20
Minimum Order Quantity 1 unit
Price Negotiable
Packaging Details Carton
Delivery Time 7-10 days
Payment Terms L/C, T/T
Supply Ability 2,000,000 units a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Primary Input Voltage 10KV/√3 Accuracy Level 0.5P
Lightning Impulse Withstand Voltage (peak) 75KV Rated Load 1MΩ
Service Life ≥10 Years Frequency 50Hz
Highlight

ODM High Voltage Transformers

,

ZW20 High Voltage Transformers

,

Zero Sequence voltage circuit breaker
Leave a Message
Product Description

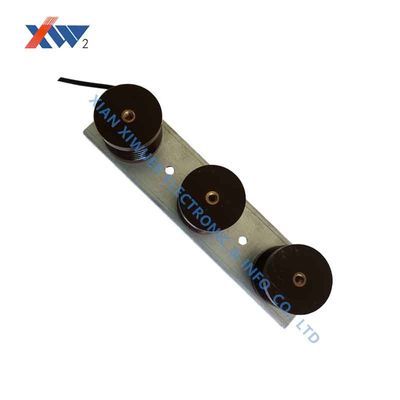

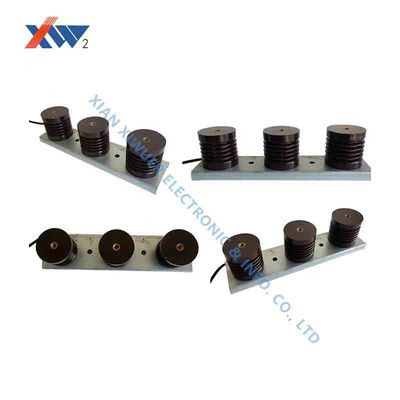

ODM ZW20 Circuit breaker voltage sensor Zero sequence electronic voltage sensor circuit breaker assembly



Features

  • The sensor adopts the principle of capacitive partial pressure and liquid independent packaging technology
  • The sensor consists of a three-phase independent sensor with a high voltage wire, which can be connected directly to the high voltage wire of the main switch

​
Technical parameters


Rated Voltage 10KV
Primary input voltage 10KV/√3
Secondary input voltage 6.5/3V(Zero sequence voltage)
Accuracy level (zero sequence voltage) 3P
Secondary input voltage 3.25/√3V(Phase sequence voltage)
Accuracy class (phase sequence voltage) 0.5 P
Rated frequency 50Hz
Withstand voltage level (1min power frequency withstand voltage) 42KV
Lightning impulse withstand voltage (peak) 75KV
Partial discharge ≤20pC 14.4KV
Executive standard T/CES018-2018; GB/T20840.7-2007; DL/T 1155-2012
Operating environment Ambient temperature -25℃~+40℃
Daily average temperature difference ≤30℃
Altitude ≤3000M
Relative humidity ≤60%
Maximum wind speed 34m/s
Rated load 1MΩ
Service life ≥10 years
