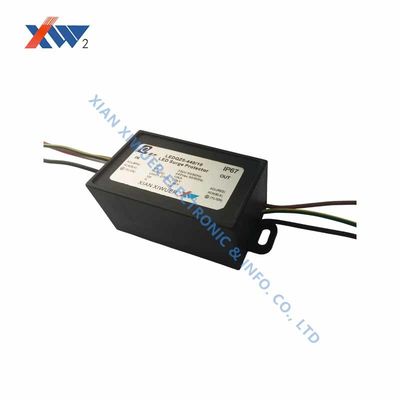

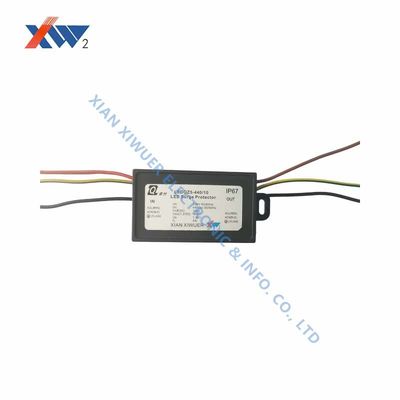

Outdoor LED Street Lighting Surge Protector 20KV IP67 Surge Arrester
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Uc（V） | 420V | IL （A） | 5A |
|---|---|---|---|
| Un （V） | 230VAC | Imax（8/20)（kA） | 20KA |
| Isc/Uoc | 10KA/20KV | Ta （ns） | 25NS |
| Highlight | 20KV Street Lighting Surge Protector,Outdoor LED Lighting Surge Protector 20KV,Lighting Surge Arrester |
||
Product Description
Outdoor lighting LED surge protector 20KV street light lightning protector IP67 surge arrester
Features
- Internal lightning protection system: The LED street lamp protects the equipment internally by grounding, setting voltage protection, etc. to prevent induction lightning and other forms of over-voltage intrusion from causing damage to the power supply.
- External lightning protection system: The outside of LED street lights is made of conductive material, which is equivalent to a lightning rod. The design must install down conductors and ground grids. These systems constitute an external lightning protection system, which can prevent LED street lights from causing fires and personal safety due to direct lightning strikes. ACCIDENT.
- Lightning protection equipotential connection: Completely eliminate the destructive potential difference caused by lightning. Power lines, signal lines, metal pipes, etc. must be equipped with overvoltage protectors for equipotential connection. The interfaces of each inner protection zone must also be partially connected. Equipotential connection, each local equipotential connection should be connected finally connected to the main equipotential point.
Technical Parameters
| Model | Uc(V) |
IL (A) |
Un (V) |
In(8/20) (kA) |
Imax(8/20) (kA) |
Up (kV) |
Isc/Uoc |
Ta (ns) |
||
| LEDQZ5 B2-420/10(BV2) | 420 | 5 | 230Vac | 10 | 20 | 1.90 | 10KA/20KV | 25 | ||
| TMOV | L/N: TMOVP25S420KB ( S25- 420/10,22*25mm) | |||||||||
| MOV |
L/PE: MOV MYL1- 420/10(Vac;420V ,Dia25mm) |
|||||||||
| GDT | 20kA | |||||||||
| Protection degree | IP67 | |||||||||
| Housing material | Nylon66 ( PA66 FR Grade) | |||||||||
| Potting Material | Silicon( Temperature Grade: Greater than 200 Degree C) | |||||||||
| Wire | FEP AF200 1.5 ( Wire 1.5mm2 , Fluoroplastic FEP Wire, Temp.: -65℃~+200℃ ) | |||||||||
| Inflammability class | V0 | |||||||||
| Wiring |
Connected in series |
|||||||||
| Size | 85mm×37mm×41mm | |||||||||
| Installation pitch of holes: | 78×19mm (M4) | |||||||||
| Test standards | UL1449(IEC61000-4-5-2014) | |||||||||
| Environment requirements | Temp. | Humidity | Atmospheric pressure | |||||||
| -40℃~+125℃ | ≤95%(25℃) | ≥74.8Pa | ||||||||
