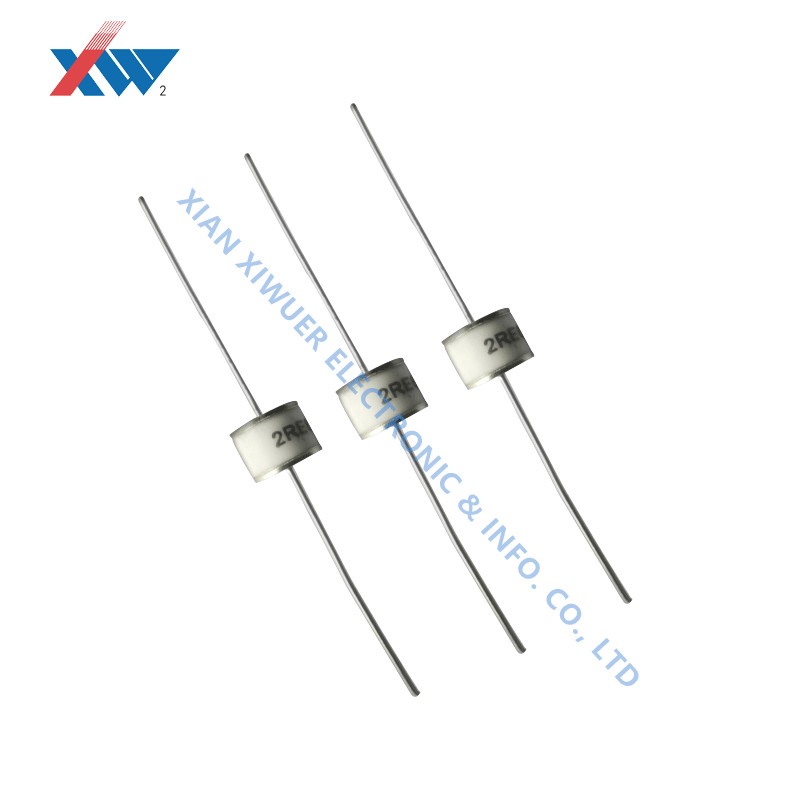

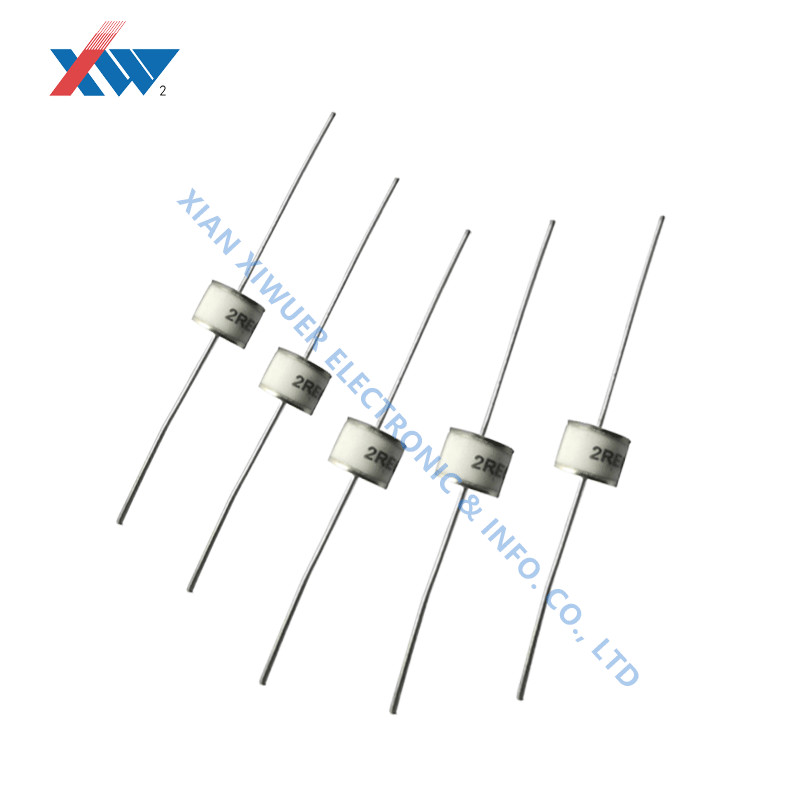

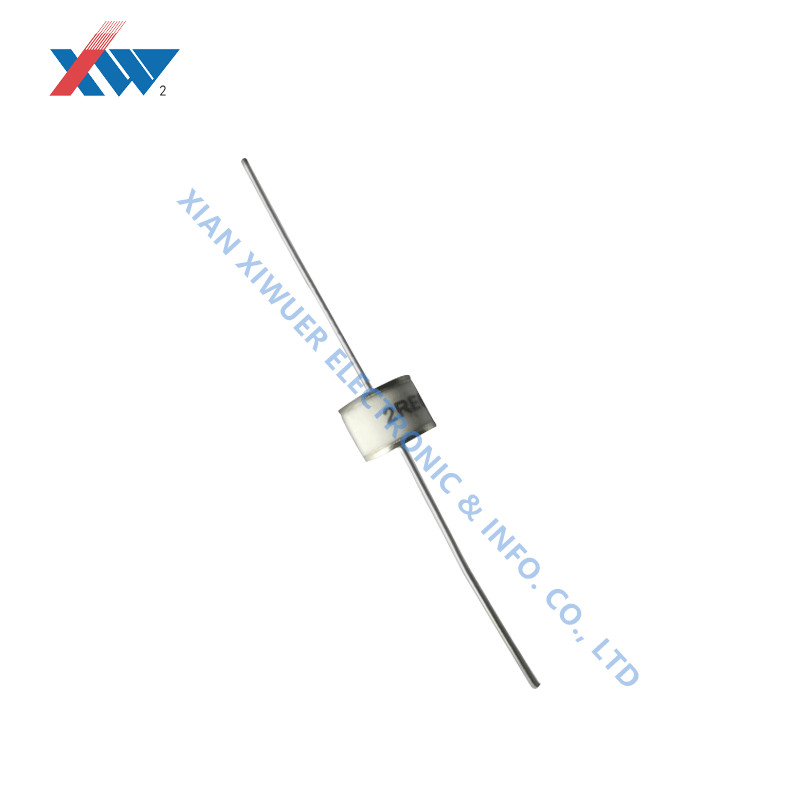

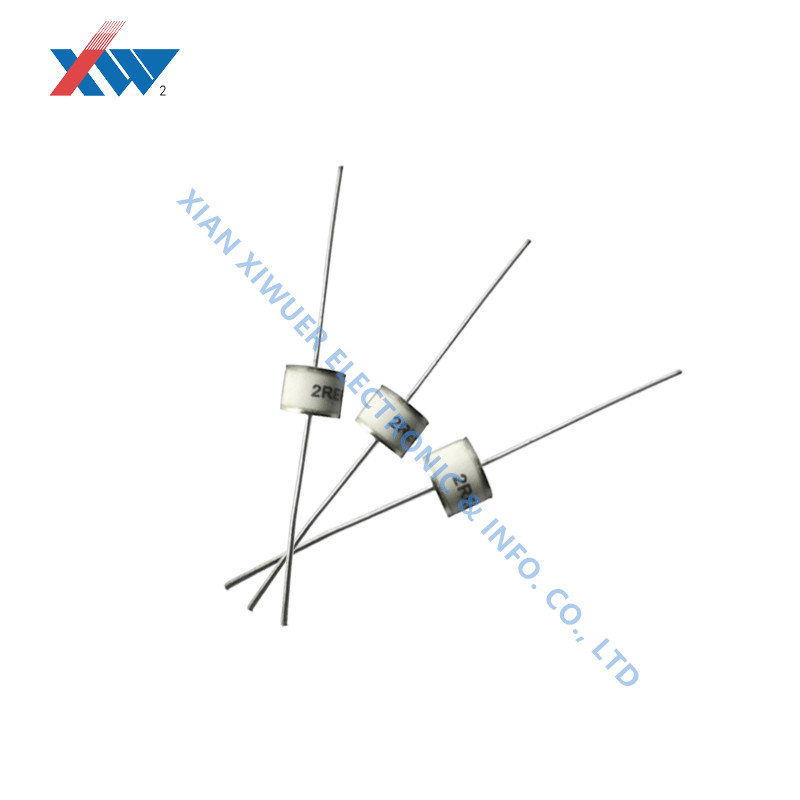

600V 10kA RoHS Compliant Gas Discharge Tube Surge Arrester for Circuit Protection
Product Details
| DC Spark-over Voltage 100V/S | 600V±20% | Maximum Impulse Spark-over Voltage 1KV/us | 1300V |
|---|---|---|---|
| Impulse Life Test 10/1000us 100A | 500 Times | Minimum Insulation Resistance | 250V Test Voltage |
| Nominal Impulse Discharge Current | 10kA | Alternating Discharge Current | 10A |
| Highlight | 10KA GDT surge arresters,2 pole GDT surge arresters,600V GDT surge arresters |
||
Product Description
Gas Discharge Tube Surge Arresters
Through hole 2 pole GDT 600V 10KA 2RE600L-8 circuit protection gas discharge tube surge arresters
Key Features
- No radioactivity
- RoHS compliant
- Low insertion loss
- Excellent response to fast-rising transients
- Ultra-low capacitance
Applications
- Test equipment
- Power supplies
- Telecom SLIC protection
- Broadband equipment
Technical Specifications
| Part Number | DC Spark-over Voltage (V) | Maximum Impulse Spark-over Voltage (V) | Impulse Life Test (times) | Test Voltage DC (V) | Minimum Insulation Resistance (GΩ) | Maximum Capacitance (pF) | Nominal Impulse Discharge Current (KA) | Alternating Discharge Current (A) | Device Marking Code |
|---|---|---|---|---|---|---|---|---|---|
| 2RE075L-8 | 75±20% | 600 | 500 | 25 | 1 | 1.5 | 10 | 10 | 2RE075-8 |
| 2RE090L-8 | 90±20% | 600 | 500 | 50 | 1 | 1.5 | 10 | 10 | 2RE090-8 |
| 2RE120L-8 | 120±20% | 600 | 500 | 50 | 1 | 1.5 | 10 | 10 | 2RE120-8 |
| 2RE150L-8 | 150±20% | 700 | 500 | 100 | 1 | 1.5 | 10 | 10 | 2RE150-8 |
| 2RE230L-8 | 230±20% | 700 | 500 | 100 | 1 | 1.5 | 10 | 10 | 2RE230-8 |
| 2RE250L-8 | 250±20% | 800 | 500 | 100 | 1 | 1.5 | 10 | 10 | 2RE250-8 |
| 2RE300L-8 | 300±20% | 900 | 500 | 100 | 1 | 1.5 | 10 | 10 | 2RE300-8 |
| 2RE350L-8 | 350±20% | 900 | 500 | 100 | 1 | 1.5 | 10 | 10 | 2RE350-8 |
| 2RE400L-8 | 400±20% | 1000 | 500 | 100 | 1 | 1.5 | 10 | 10 | 2RE400-8 |
| 2RE470L-8 | 470±20% | 1100 | 500 | 250 | 1 | 1.5 | 10 | 10 | 2RE470-8 |
| 2RE600L-8 | 600±20% | 1300 | 500 | 250 | 1 | 1.5 | 10 | 10 | 2RE600-8 |
| 2RE800L-8 | 800±20% | 1500 | 500 | 250 | 1 | 1.5 | 10 | 10 | 2RE800-8 |
Dimensions
Company Overview
Xian Xiwuer Electronic and Info. Co., Ltd is a wholly state-owned company established in 1976 with a registered capital of CNY 101.465 million (USD 15.85 million) and total assets of CNY 315 million (USD 49.22 million). The company employs approximately 460 staff and achieves annual sales of CN 280 million (USD 43.75 million).
The company operates from four production and business bases covering 43,052 square meters with over 50,000 square meters of construction area. Technical expertise includes 8 master's degree holders, over 80 senior engineers, 12 municipal technical experts, and 1 State Council special allowance expert.
Main Products
- Smart Embedded Epoxy Pole
- Integrated Instrument Transformer
- Capacitive Voltage Divider
- High Voltage Capacitor Rod
- High Voltage Film Capacitor
- High Voltage Resistor
- Primary and Secondary Integrated Intelligent assembly and components
- Medium-High Voltage components/parts/assembly
- Surge Protective Device for Power Supply System
- Chips for lightning devices
- Zinc Oxide Varistor
- Thermistor
Major Customers: ABB, Schneider, GE, ZTE, XD Electric, XJ Electric, PingGao Electric and others.
The company maintains a provincial Technical R&D Center with nearly 20 years of experience in developing key products including HV Ceramic Capacitor, SPD, Varistor, and Thermistor. The company holds 32 patented technologies, 4 invention patents, and 4 national key new products.
Quality management systems include ISO9001, ISO14001, and ISO45001 certifications. Products meet international standards with UL, VDE, TUV, CAS, CE, CQC, RoHS, and REACH certifications.
Advanced production equipment includes 26m sintering tunnel furnaces, 8 automatic assembly lines, impulse current generators, and comprehensive testing facilities. The company operates two routine test laboratories with advanced lightning and environmental testing equipment.
