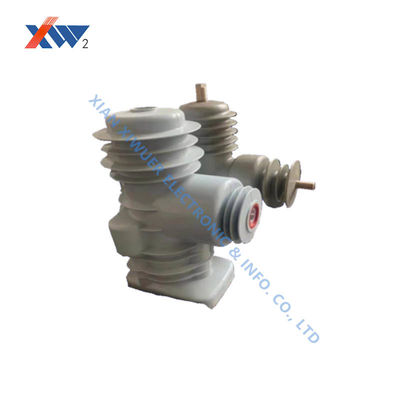

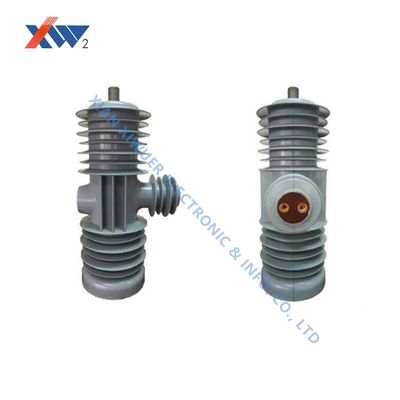

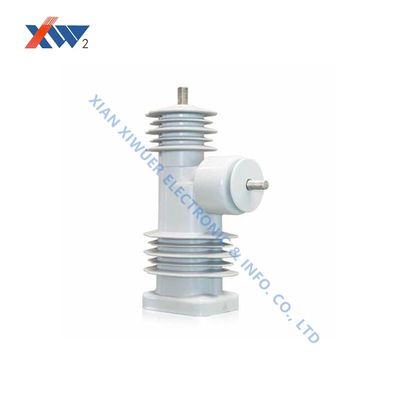

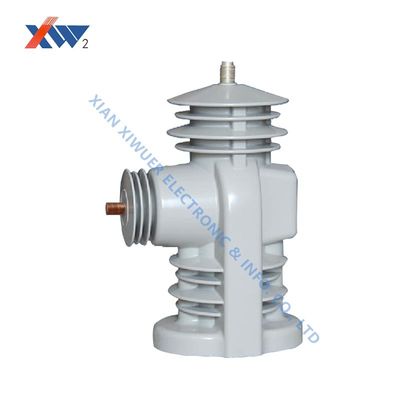

24KV 2000A Embedded Pole High Voltage Vacuum Circuit Breaker Smart Type

24KV 2000A Embedded Pole Smart Type High Voltage Vacuum Circuit Breaker

 Features of High Voltage Vacuum Circuit Breaker

      It embeds the conductive parts related to the vacuum arcing chamber and circuit breaker into the epoxy resin, which is a kind of solid insulation material that is easy to cure. Epoxy resin is poured on the outside for encapsulation, and the pole column is sealed to form an integral part of the whole circuit breaker pole column. Epoxy resin is not only the primary part of the main insulation, but also its mechanical support. Its electric field distribution is better than various forms of insulation diaphragm structure.

Application of High Voltage Vacuum Circuit Breaker

Difference between High Voltage Vacuum Circuit Breaker &traditional insulating cylinder

The embedded pole has the following advantages:

1. Modular design, simple structure, less detachable parts, simple installation and high reliability.

2. High insulating rod capacity. It turns surface insulation into volume insulation.

        In the past, the insulating shell of vacuum interrupter was exposed to the air, which was polluted by dust and humidity. In order to reduce this effect, the shell of the vacuum interrupter is required to have enough length, which not only affects the miniaturization of the vacuum interrupter, but also affects the performance and reliability of the vacuum interrupter.

      Compared with the insulating cylinder, the number of parts of the embedded pole is greatly reduced. The overlapping surface of the conductor is reduced from 6 groups to 3 groups, and the number of connecting bolts is reduced from 8 to 1-3. The simple structure greatly improves the reliability of the vacuum circuit breaker. Because the vacuum interrupter is embedded in the solid material, no further treatment is needed, and the embed pole can achieve high insulation strength. It is more conducive to the miniaturization design of vacuum circuit breaker and switchgear. When the vacuum interrupter is embedded in the solid material, the influence of the external environment on the vacuum interrupter is minimized. It is completely maintenance free in the service life of the product, which makes it have strong adaptability, and can be widely used in chemical industry, metallurgy, mining and other occasions.

COMPANY OVERVIEW

• Xian Xiwuer Electronic and Info. Co., Ltd is a wholly state-owned company with a registered capital of CNY 101.465 million (exchanged to USD15.85 million), owning total assets of CNY315 million (traded to USD 49.22 million). It was established in 1976. Currently, it has about 460 employees, with an annual sales income of CN280 million (exchanged to USD43.75 million). The company has four production and business bases covering an area of 43052 square meters, and a construction area of more than 50000 square meters. The company has 8 persons with master's degrees, more than 80 engineers with senior technical titles 12 technicians who have been awarded Experts with Outstanding Contributions by the Xian municipal government, and 1 expert who has been enjoying a special allowance from the State Council.

• The main products include

• Smart Embedded Epoxy Pole；

• Integrated Instrument Transformer

• Capacitive Voltage Divider；

• High Voltage Capacitor Rod；

• High Voltage Film Capacitor；

• High Voltage Resistor；

• Primary and Secondary Integrated Intelligent assembly and components with the function of voltage measurement, current measurement, protection, temperature monitoring, and power supply；

• Medium-High Voltage components/parts/ assembly；

• Surge Protective Device for Power Supply System；

• Chips for lightening devices；

• Zinc Oxide Varistor；Thermistor.

Major Customers: ABB, Schneider, GE, ZTE, XD Electric, XJ Electric, PingGao Electric, etc.

• The company has the provincial Technical R&D Center. The company has developing and manufacturing experiences of the key products HV Ceramic Capacitor, SPD, Varistor, Thermistor and for nearly 20 years. There have been 32 patented technologies, 4 invention patents, and 4 national key new products. The company is in the leading position in the same industry. The company has grown very fast with a unique management system which is the fundamental guarantee to the continuous development of the enterprise under the state-owned system. In Northwest China, the company is the first to implement ISO 9001 standards and the first to promote the use of ERP management systems, having achieved ISO9001, ISO14001, and ISO45001 approval, thus standardizing and improving the management level of the company.
• Through continuous technological innovation, product R&D, and quality improvement the main technical performance and reliability of the products are at the internationally advanced level as the same level as Panasonic and Siemens. The products have UL, VDE, TUV, CAS, CE, CQC, RoHS, and REACH certifications. The company has advanced production equipment among which the key production equipment and modern assembly lines are imported from Japan, the U.S.A, Germany, Korea, and Belgium including 26m large sintering tunnel furnaces8 automatic assembly lines, the largest energy impulse current generator and a series of special test equipment and environmental test equipment. In the same industry in China, the company has the largest production capacity and the highest degree of automation with the most complete testing methods. The company has two routine test laboratories with the most advanced lightning testing equipment and environmental testing equipment which comply with national standards for laboratory construction. They are the significant laboratories supported by Shaanxi Province with professional testing technicians undertaking part of the supervision and inspection of electronic products in Shaanxi Province at the same time.
• We believe we can supply satisfied goods and services to customers at home and abroad with the most reasonable price and the shortest delivery time. based on our excellent quality assurance capacity, technical development capacity, and rich manufacturing experiences.
