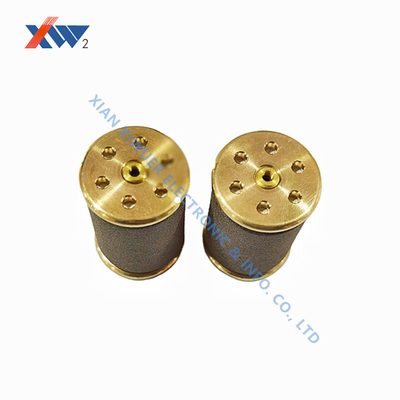

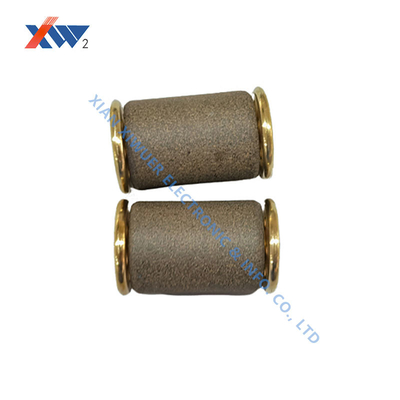

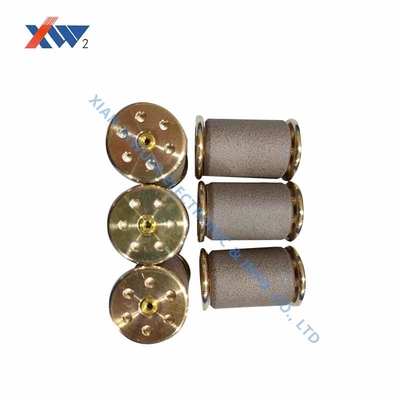

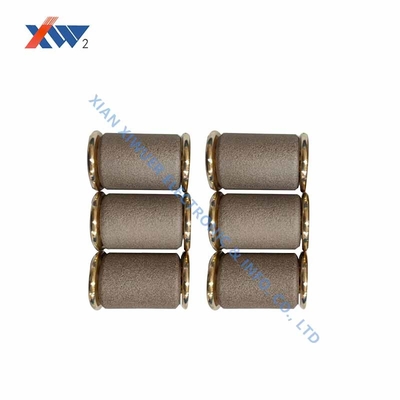

24KV 85PF High Voltage Capacitor Voltage Indicator axial leads capacitor

  • 24KV 85PF High Voltage Capacitor Voltage Indicator axial leads capacitor
  • 24KV 85PF High Voltage Capacitor Voltage Indicator axial leads capacitor
  • 24KV 85PF High Voltage Capacitor Voltage Indicator axial leads capacitor
  • 24KV 85PF High Voltage Capacitor Voltage Indicator axial leads capacitor
Place of Origin XIAN, CHINA
Brand Name XIWUER
Certification ISO9001,ISO14001,ISO45001
Model Number CT8-2-24KV-85PF
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details Carton
Delivery Time 5-7 days
Payment Terms L/C, T/T
Supply Ability 8,000,000 a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Manufacturing Material Ceramic Application General Purpose,insulator
High Light

85PF High Voltage Capacitor

,

Axial High Voltage Capacitor

,

85PF axial leads capacitor
Leave a Message
Product Description

24KV 85PF Voltage Indicator High Voltage Ceramic Capacitor 3.6KV-40.5KV condensator

Features

  • Excellent voltage characteristic
  • Molded type, Screw or Axial Leads available
  • Coated and uncoated devices available

Applications

  • Lightning arresters, voltage distribution systems
  • Electron microscopes, synchroscopes
  • Electrostatic coating machines



Voltage
Rating		 Nominal
Capacitance
(pF)		 Nominal Capacitance Range
Test Frequency:1kHz±20%
Test Voltage:1V±0.2V		 Power Frequency
Withstand Voltage
(in the insulation oil)		 Partial Discharge Lightning Impulse (kV)
(Maximum Peak Voltage)
(in the insulation oil)
3.6kVac 230 210~240 32kVAc/5min 3.96kVac≤10PC 40
7.2kVac 5 4~6 41kVAc/5min 7.92kVac≤10PC 60
40 36 ~44
150 140~170
12kVac 5 4~6 52kVAc/5min 13.2kVac≤10PC 75
20 18~22
40 36~44
50 45~55
125 110~140
200 180~210
300 270~330
24kVac 5 4~6 70kVAc/5min 26.4kVac≤10PC 125
15 13~17 26.4kVac≤10PC
35 35 ~42 26.4kVac≤4PC
50 45~50 26.4kVac≤10PC
80 70 ~90 26.4kVac≤10PC
150 125~180 26.4kVac≤5PC
200/400/500 180~220 26.4kVac≤10PC
40.5kVac 5 4~6 115kVAc/5min 44. 5kVac≤10PC 185
10 8.5~11.5 44.5kVac≤5PC
45 40~50 44. 5kVac≤10PC
100 90~110 44. 5kVac≤10PC





24KV 85PF High Voltage Capacitor Voltage Indicator axial leads capacitor 0

24KV 85PF High Voltage Capacitor Voltage Indicator axial leads capacitor 1


General Parameter of Voltage Indicator High Voltage Ceramic Capacitor 3.6KV-40.5KV:


  • Dielectric Loss: ≤0.0040;
  • Test Frequency:1kHz ± 20%;
  • Test Voltage:l V +0.2 V;
  • Insulation Resistance: ≥1.0x 105MΩ; Test Voltage: l VDC ± 50V; Test Time: lmin ± 5s;
  • Temperature Characteristics: 2D4 ( Y5T) ;2B4 ( Y5B ) ;DL;
  • Screw Thread on Brass Insert: M4;M5;M8;Ml0;Ml2;Ml6;
