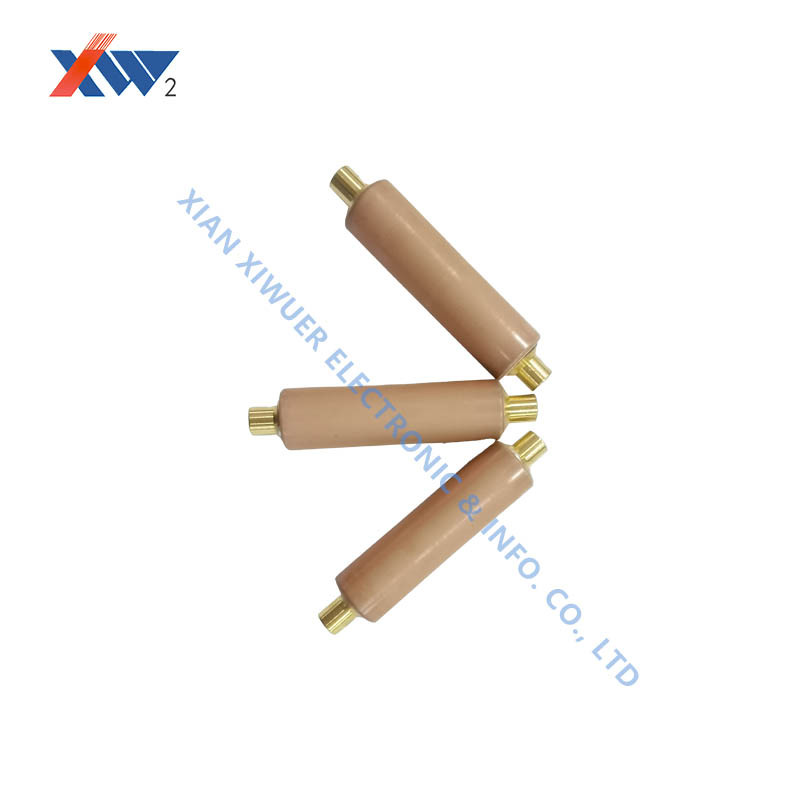

24KV 150PF Live Line Capacitors For Microwave Oven 227 Tantalum

24KV 150PF Live Line Capacitors For Microwave Oven 227 Tantalum

Brand Name: XIWUER
Model Number: CT8-2-24KV-150PF
MOQ: 1 piece
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 8,000,000 a year
Detail Information
Place of Origin:
XIAN, CHINA
Certification:
ISO9001,ISO14001,ISO45001
Manufacturing Material:
125~180
Tolerance:
±10%
Dissipation Factor:
≤0.0040
Application:
General Purpose,insulator
Packaging Details:
Carton
Supply Ability:
8,000,000 a year
Highlight:

24KV Live Line Capacitors

,

150PF Live Line Capacitors

,

150PF microwave oven capacitor

Product Description

24KV 150PF Live-Line Capacitor for microwave generator 227 tantalum capacitor rod shaped ceramic capacitor  for laser genenator

Features

  • Small size, high withstand voltage, low dissipation
  • Electrical performance index is much higher than the national standard

Applications



High voltage hot-line display device sensor





Technical Parameter



Voltage Nominal
Capacitance
(pF)
Nominal Capacitance Range
Test Frequency:1kHz±20%
Test Voltage:1V±0.2V
Power Frequency
Withstand Voltage
(in the insulation oil)
Partial Discharge Lightning Impulse (kV)
(Maximum Peak Voltage)
(in the insulation oil)
24kVac 150 125~180 70kVAc/5min 26.4kVac≤10PC 125



Dimension



D(mm) L1(mm) L2(mm) Thread(mm)
17.5 50 66 M4

24KV 150PF Live Line Capacitors For Microwave Oven 227 Tantalum



24KV 150PF Live Line Capacitors For Microwave Oven 227 Tantalum

COMPANY OVERVIEW



    Xian Xiwuer Electronic & Info. Co., Ltd. is located in Beiguan, Xi'an city cover in an area of 4000 ㎡, with employees of 2300, and about 580 technicians, amongthem, there are 135 engineers, 21 senior engineers. The company has total assets of 315 million RMB Yuan, fixed assets of 137 million RMB Yuan, which is a large enterprise mainly engaged in producing electronic components. The company has the largest production scale of Varistor,SPD( Surge Protective Device)and HV Ceramic Capacitor in China, with the following main products :

1. Varistors & SPD

2. HV Ceramic Capacitor
3. Capacitive Voltage Divider

4. Thermistor

       The main production line and inspection equipment & instrument are imported from Japan, America, Belgium and Switzerland etc. The annual production capacity of the two leading products has been reached to 5 million pcs and 150 million pcs respectively, with the market holding rate in China of about 10% and 30% respectively by continually technical innovation. Varistors and SPD produced by the company enjoyed great reputation in the international market, being exported to many countries and areas such as Japan,USA, Hong Kong etc., with the customers like India and GE in USA. are already sold to LG company in Korea with large quantity, and also to Spainand India etc.

      Not only the products quality and technical capacity, but also the completeness of the models are all in the leading place in China. The main products have got CCEE, UL, VDE & TUV approval. The quality system was set up according to the requirement of ISO9000 since 1992, and has passed ISO9002 approval by DNV International Organization in July 1994, then got ISO9001 certification by British organization in 2000, by then we are both the first one who are approved by ISO9000 certification in the North-west area of China and the same occupation. We passed all the successive periodical audit and smoothly get the new certificate registered in Holland in Aug.1997; the quality system is strengthened and completed constantly. And we also got ISO18000 certificate.

      We believe we are able to supply satisfied goods and service to customers home and abroad with the most reasonable price and the shortest delivery time, on basis of our excellent quality assurance capacity, technical development capacity and rich manufacturing experiences.
