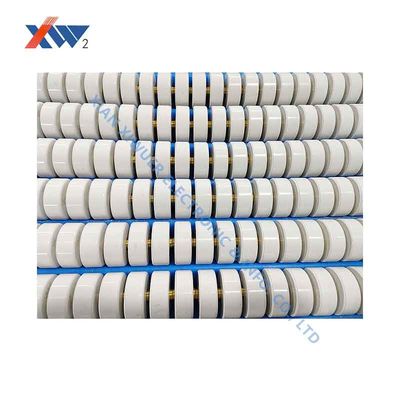

High voltage ceramic disk capacitor doorknob ceramic type used for laser generator

  • High voltage ceramic disk capacitor doorknob ceramic type used for laser generator
  • High voltage ceramic disk capacitor doorknob ceramic type used for laser generator
  • High voltage ceramic disk capacitor doorknob ceramic type used for laser generator
  • High voltage ceramic disk capacitor doorknob ceramic type used for laser generator
  • High voltage ceramic disk capacitor doorknob ceramic type used for laser generator
Place of Origin XIAN, SHANNXI CHINA
Brand Name XIWUER
Certification ISO9001,ISO14001,OHSAS18001
Model Number CT8-1-192K- 15KV
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details Carton
Delivery Time 10-15 days
Payment Terms L/C, T/T
Supply Ability 4,000,000 pcs a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 40KV Capacitance 1300PF
Type Doorknob Type Rated Frequency 50Hz
Power Frequency Voltage Withstanding 60KV Partial Discharge 14.4KV≤10pC
Highlight

Encapsulated Ceramic Disk Capacitor

,

Doorknob Ceramic Disk Capacitor

,

192K disk type capacitor
Leave a Message
Product Description

High voltage ceramic disk capacitor doorknob ceramic type used for laser generator

 Doorknob capacitor is one kind of high voltage ceramic capacitor, which mainly used in high peak current and high repetition rate circuit.Such as: high voltage doubler, voltage protection, decoupling circuits, laser generator, switching circuits, welding equipment, exchange limit, DC storage high-frequency coupling, AC, and DC filtering applications.

FEATURES

  • Low dissipation factor of 0.1 % at 20kHz to 1000kHz

  • N4700 (T3M) Class 1, strontium-based ceramic dielectric

  • Negligible piezoelectric/electrostrictive effect

  • Screw terminal mounting

APPLICATIONS

  •  High voltage power supplies

  • CO2 lasers

  •  X-ray equipment

  • Welding equipment

  •  Medical industrial equipment



Technical Parameter

Part No.

Capacitance

(pF)

 Voltage(KVDC)

Charge and discharge voltage

(KV)

 Dimension(mm) Operating temperature range
Working Voltage Testing Voltage D H L M d
CT8-1 390 15 22.5 10 20 19 28 4 8

－25℃

～

＋85℃
500 31 20 35 5 10
1000 31 18 33 5 10
2500 40 13 22 5 12
5600 60 21 27 4 12
68 20 30 15 20 25 29 4 8
1000 32 13 22 4 10
1800 45 22 32 4 12
3300 60 19 27 4 12
4000 50 15 24 / /
10000 80 23 32 / /
50 30 45 20 20 12 24 4 8
330 20 27 36 4 8
400 28 28 37 4 8
500 26 17 25 4 8
1000 45 23 32 / /
31 17 21 / /
2000 50 23 32 4 12
2700 60 20 29 / /
4000 60 19 28 5 12
5000 74 25 30 5 12
3800 35 52.5 20 74 23 32 / /
140 40 60 30 20 32 41 4 8
200 20 33 42 / /
300 26 33 42 4 8
820 38 27 31 / /
500 28 33 43 4 8
1000 40 27 36 4 12
3300 65 27 36 / /
4400 80 27 36 5 12
5600 80 23 28 5 12
7500 80 24 28 6 12
570 45 67.5 30 36 24 32 4 12
710 40 31 39 4 10
1000 50 32 36 4 12
330 50 75 35 26 31 39 4 8

－25℃ ～

＋85℃


600 45 34 43 4 12
1000 50 27 36 / /
2000 60 32 41 5 12
3000 74 29 38 5 12
4000 74 34 38 5 12
5000 80 34 38 5 12
500 60 55 40 38 40 44 4 12

  1000       50 39 47 5 12
