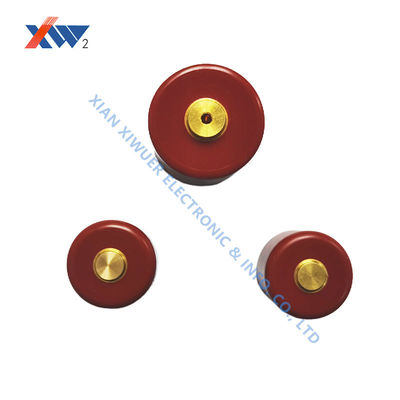

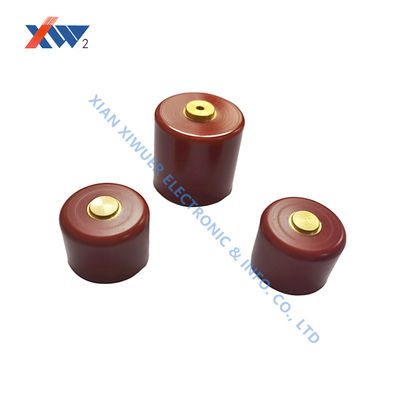

LIve Line Ceramic High Voltage Doorknob Capacitors used in switchgear 35KV 45PF
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Live Line Capacitors | Capacitance | 5PF-2000PF |
|---|---|---|---|
| Operating Temperature | -30C ~ 85C | Type | Low Frequency Ceramic Capacitor |
| Insulation Resistance | 100,000 MΩ Min | Rated Voltage | 24kv, 24KV |
| Application | Power, Hight Voltage | Long Life | 10 Years Min |
| High Light | LIve Line High Voltage Doorknob Capacitors,35KV High Voltage Doorknob Capacitors,45PF ceramic doorknob capacitor |
||
Product Description
LIve Line Ceramic High Voltage Doorknob Capacitors used in switchgear 35KV 45PF
High voltage ceramic capacitors are made of ceramic dielectric. The main features of high voltage ceramic capacitors is excellent withstand voltage, Excellent behavior on pulse and fast discharge conditions, Low dissipation factor, Very low partial discharge, Coated and uncoated devices available Used for various AC and DC high voltage circuit applications.
Main Technical Data
| Type | (pF) Capacitance | DC Vol.(KV) |
Charge ＆Discharge Vol.(KV) |
Dimension(mm) |
Operating Temp. Range |
|||||
| Operating Vol. |
Testing Voltage |
D | H | L | M | d | ||||
| CT8-1 | 2500 | 15 | 22.5 | 10 | 40 | 13 | 22 | 5 | 12 |
－25℃ ～ ＋85℃ |
| 1000 | 20 | 30 | 15 | 32 | 13 | 22 | / | / | ||
| 4000 | 50 | 15 | 24 | / | / | |||||
| 10000 | 80 | 23 | 32 | / | / | |||||
| 50 | 30 | 45 | 20 | 20 | 12 | 24 | 4 | 8 | ||
| 1000 | 45 | 23 | 32 | / | / | |||||
| 31 | 17 | 21 | / | / | ||||||
| 2000 | 50 | 23 | 32 | 4 | 12 | |||||
| 2700 | 60 | 20 | 29 | / | / | |||||
| 3800 | 74 | 23 | 32 | / | / | |||||
| 140 | 40 | 60 | 30 | 20 | 32 | 41 | 4 | 8 | ||
| 200 | 20 | 33 | 42 | / | / | |||||
| 820 | 38 | 27 | 31 | / | / | |||||
| 1000 | 40 | 27 | 36 | 4 | 12 | |||||
| 3300 | 65 | 27 | 36 | / | / | |||||
| 5600 | 80 | 23 | 28 | 5 | 12 | |||||
| 570 | 45 | 67.5 | 30 | 36 | 24 | 32 | 4 | 12 | ||
| 1000 | 50 | 32 | 36 | 4 | 12 | |||||
| 600 | 50 | 75 | 35 | 45 | 34 | 43 | 4 | 12 |
－25℃ ～ ＋85℃
|
|
| 1000 | 50 | 27 | 36 | / | / | |||||
| 2000 | 60 | 32 | 41 | 5 | 12 | |||||
| 3000 | 74 | 29 | 38 | 5 | 12 | |||||
Notes of High Voltage Live Line Capacitors Voltage Indicator:
Dimensions according to customer requirements.
PD not more than 5pC at 1.1 times rated voltage without special note.
Comply with the standard DL/T538-2006 (High Voltage Presence Indication Device).
Comply with the standard JBT10305- 2001 (Technical conditions for post insulator of organic material in the 3.6kV-40.5kV high voltage equipment at customers end).
It is used mainly in the area below 3000meter above sea level. Please mention and mark in the purchase order when it is used in high altitude area.
