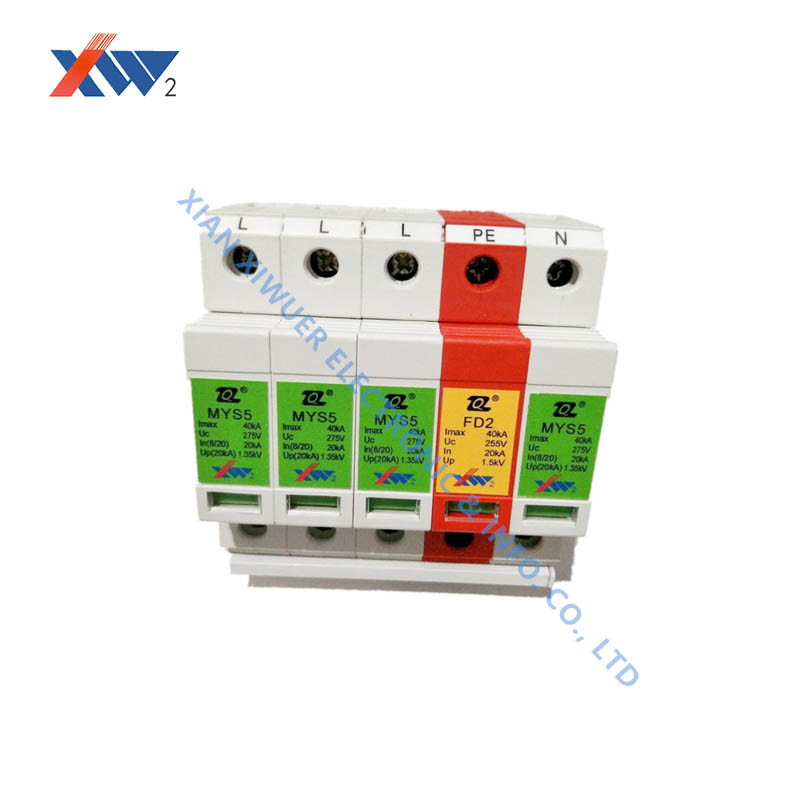

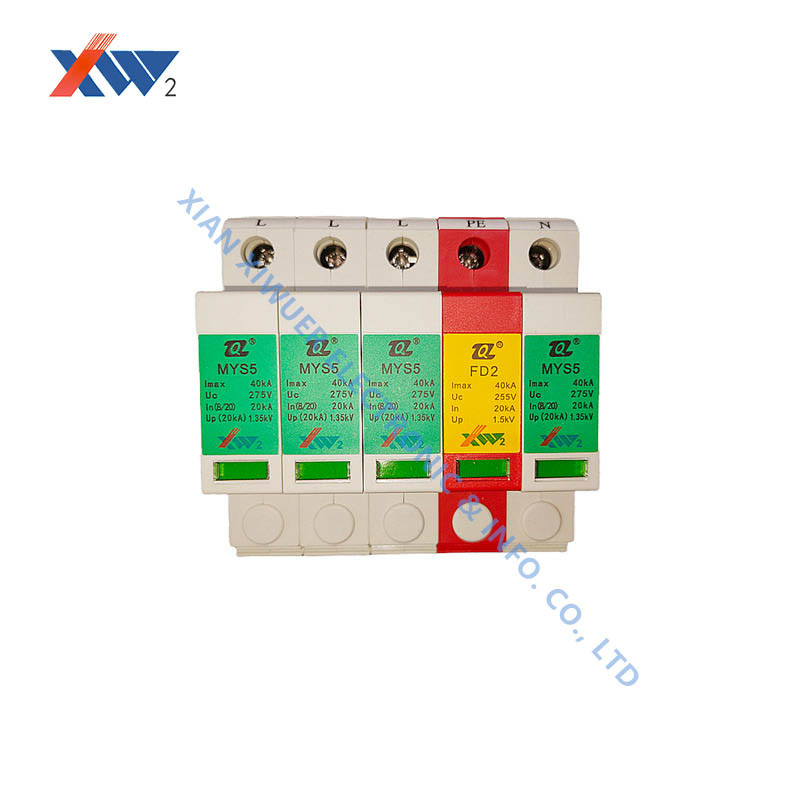

MYS5 275/20 4+1 Power Surge Arrester 275V 20KA 40KA Class C For DC Power System Line
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Structure | Zinc Oxide Arrester | Application | AC/DC System |
|---|---|---|---|
| Mounting Brackets | 35mm Standard Rail | Type Of Screw Hole | Cross (M6/M5) |
| Trademark | XIWUER | Protection Level | IP20 |
| Highlight | MYS5power surge arrester,275V power surge arrester,20KA dc surge arrester |
||
Product Description
MYS5 275/20 4+1 275V 20KA 40KA Class C power surge arrester used in the protection between the power system line
Application
MYS5-275/20(4+1) Class C power surge arrester is mainly used in the protection between the power system line and zero, zero and ground. Large energy absorption capacity and low limit voltage; any module can be replaced in thermal state: dual monitoring and isolation device for thermal fuse and current fuse; L-N and N-PE protections have automatic disengagement mechanisms: with remote monitoring and alarm terminals: window red is fault state.
Technical Parameters
| Protected mode | L-N | L-PE | N-PE | FD2 | |
| IEC category/VDE specification class/EN category | Ⅱ/C/T2 | ||||
| Nominal voltage | 220 | / | / | / | |
| Rated voltage/maximum continuous operating voltage Uc | 320 | / | / | 255 | |
| Lightning test | Impulse current Limp for Class I(waveform/electricity/characteristic energy) | / | / | ||
| Rated discharge current In(8/20 μ s) | 20000 | 20000 | |||
| Maximum discharge current lmax (8/20μ s) for class II test | 40000 | 40000 | |||
| Protection level at In | 3000V | 1500 | 1500 | ||
| Response time | 25 | 100 | |||
| Maximum backup protection strength | 32 | / | |||
| High fault current thermal stability | 50Arms | / | |||
| Freewheeling interruption capability without backup protection | / | 100Arms | |||
| Insulation shell material brand and specification | 420SE0 | 420SE0 | |||
| Flame retardant grade ( with UL94) | V0 | ||||
| Protection level | IP20 | ||||
| Safety certification type and certificate number | TUV/CEN8 11 05 64272 009 | ||||
| Test standard | EN61643-11:2002 | ||||
| Installation | Mounting brackets | 35mm standard rail | |||
| Installed conductor cross section | 4 | ||||
| Type of screw hole | Cross (M6/M5) | ||||
| Torque | 4.5Nm/0.25Nm | ||||
| Remote signaling contact type | |||||
| Contact performance | Maximum allowable working voltage Umax | 125VAC/30VDC | |||
| Maximum allowable working current AC ImaxAC | 1 | ||||
| Maximum allowable working current DC ImaxDC | 0.5 | ||||
| Remote Signal Terminal Conductor Cross Section | 0.2 | ||||
| Environmental requirements | Temperature | Humidity | Atmospheric pressure | ||
| -40℃~+70℃ | ≤ 95%(25℃) | ≥ 74.8Pa | |||
