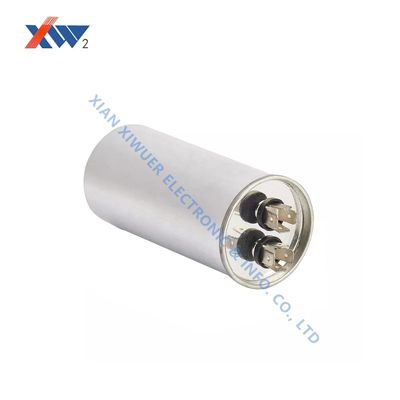

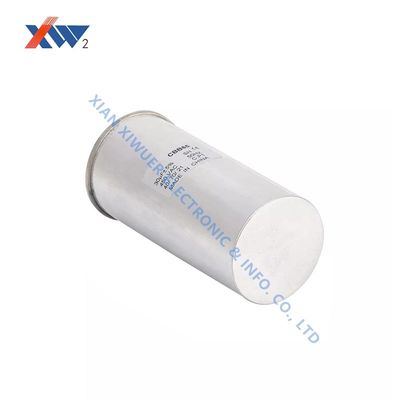

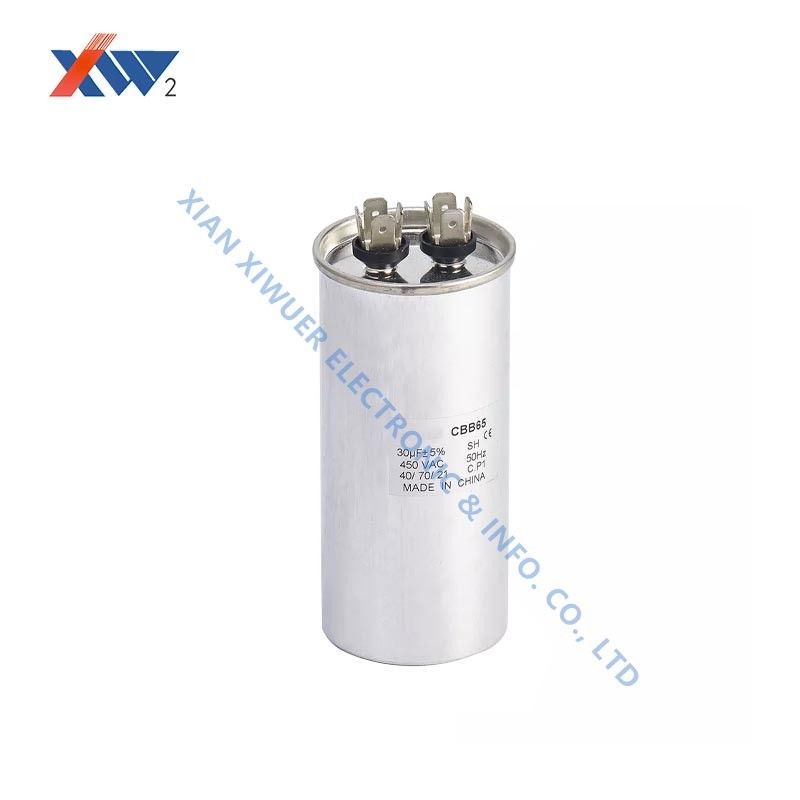

30 UF Polypropylene Film Dielectric Capacitor ，450 VAC Ac Capacitor CBB65

High Quality 450 VAC 30 uF±5% CBB65 Metallized Polypropylene Film Dielectric Capacitor

Features

• Cylindrical metal aluminum shell, small size and light weight.
• Excellent electrical properties, low loss, and good self-healing (SH) characteristics.
• There is a pressure explosion-proof device inside, which is safe and reliable to use.

Application

• It is used in AC power system to assemble automatic power factor compensation cabinet, local compensation device and UPS power supply.
• It is used for starting and running a single-phase motor with a frequency of 50Hz AC power supply, which can work continuously.
• It is suitable for places with high safety requirements, such as underground coal mines, railways, aerospace, etc.

• Widely used for starting and running of single-phase motors powered by AC power with a frequency of 50Hz/60Hz such as household air conditioners; and power factor compensation for high-power lighting fixtures.

Technical Parameters

• Executive Standard: GB/T3667-2005
• Climate Category:40/70/21 or 40/85/21
• Capacitance Tolerance: ±5%
• Insulated Resistance: ≥3000S(MΩ·µF)
• Dissipation Factor Tan: tgδ≤0.002(50Hz～100Hz)

Requirements for use

• Elevation: ≤2000m
• Residual voltage when put in: no more than 10% of rated voltage
• Maximum allowable voltage: no more than 1.1 times the rated voltage
• Maximum allowable current: no more than 1.3 times rated current:40/70/21

Note:

• Other capacity and size series can be negotiated according to the needs of users.
• The form of leading-out terminal can be made according to the requirements of user agreement.

After-sales service: The product is guaranteed for three years, and our company promises product quality within three years from the date of purchase by any company or individual.
