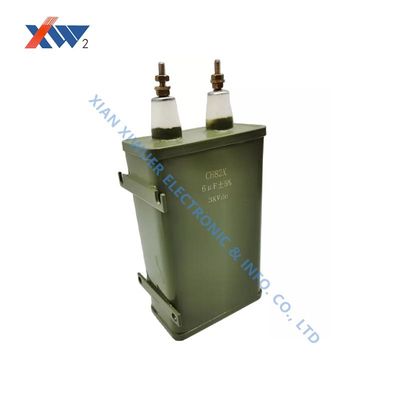

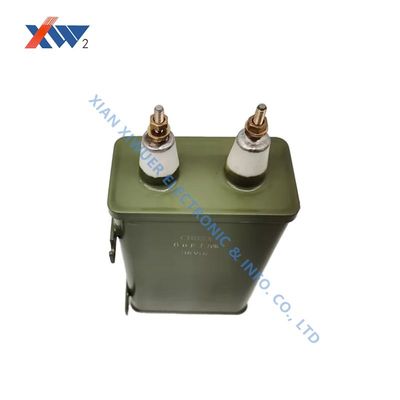

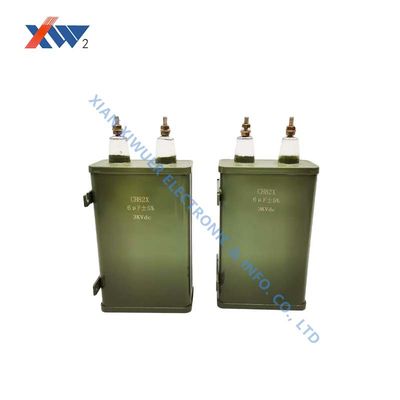

CH82X 3KVDC 6uF Pulse Power Capacitor Sealed Structure High Voltage

High Quality CH82X 3KVDC 6uF+5% High Voltage Pulse Power Sealed Capacitor

Features

• Using high-quality impregnating material, metal shell fully sealed structure, stable performance

Application

• Applicable to DC or pulsating circuits, such as automatic ignition devices of equipment, laser equipment, and lightning arrester test equipment

Technical Parameters

• Detailed Specification: Q/FLT286-2007
• Ambient Temperature: -55℃~+85℃
• Rated Voltage: 3KVdc
• Nominal Capacitance: 4UF,6UF,8UF
• Capacitance Tolerance: +5%, +10%
• Dissipation Factor Tan: ≤0.006(100Hz)
• Insulated Resistance: R≧2400 S
• Withstanding Voltage: 1.5Un

Note: The form of leading-out and capacity can be made according to the requirements of user.
