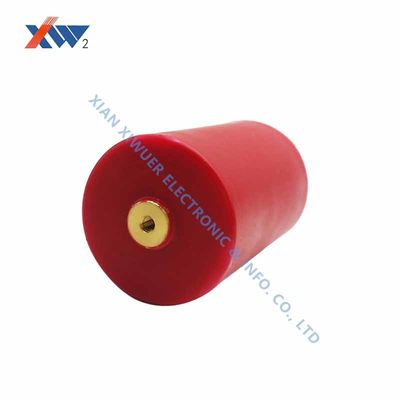

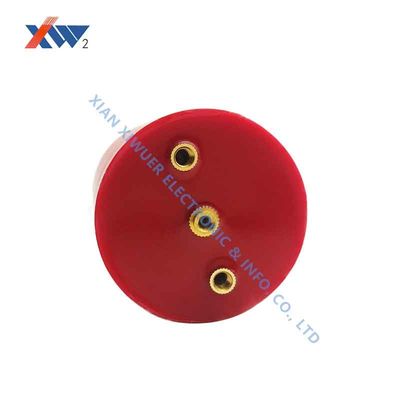

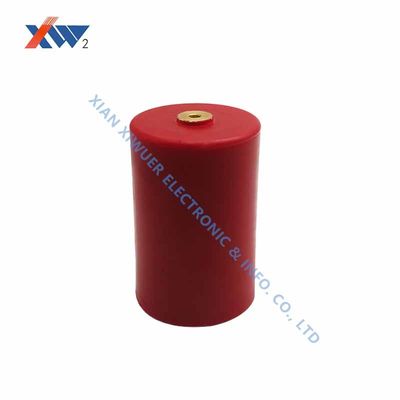

OEM Cylindrical Capacitive Voltage Detector 3P Zero Sequence Transformer

OEM/ODM Cylindrical 10KV zero sequence transformer (10/√3)KV/(6.5/3)V

Introduction

 The 10KV zero-sequence transformer adopts the principle of capacitive voltage division and uses temperature-stable ceramic dielectric GC as raw material. It is mainly suitable for 12KV on-column switches, ring network cabinets and other scenarios.

Electrical parameters

Electrical Principles

1. This series of products is based on the principle of capacitive voltage division. Each transformer is implanted with a group of high-voltage ceramic capacitors, which are connected to three-phase high-voltage respectively. This is the three-phase high-voltage input of Ua, Ub, and Uc;
2. On the low voltage side, the three phases are connected in parallel and then connected in series with the low voltage capacitor. The U0 terminal of the zero-sequence transformer is between the high voltage and low voltage capacitors;
3. The end of the low-voltage capacitor is directly connected to the ground wire;
4. A set of three, fixed on a metal base plate with screws;

Dimensions

• High pressure end nut: M5
• Fixing nut: M5
• Low pressure end nut: M4
• Diameter: 55mm
• Height: 88mm
