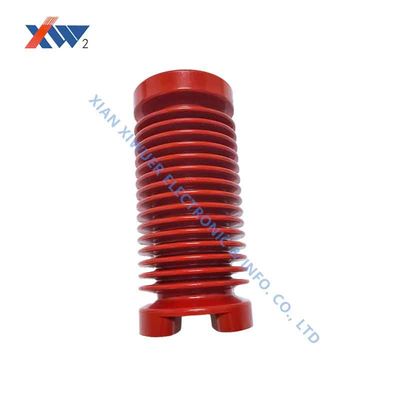

18kv 80pF Online Capacitive Voltage Detector Coupling Power Take Off Device

8/18kv 80pF±2pF online power take capacitor 80pf partial discharge coupling capacitor power take-off device OEM/ODM

Introduction

 The 10KV zero-sequence transformer adopts the principle of capacitive voltage division and uses temperature-stable ceramic dielectric GC as raw material. It is mainly suitable for 12KV on-column switches, ring network cabinets and other scenarios.

Electrical parameters

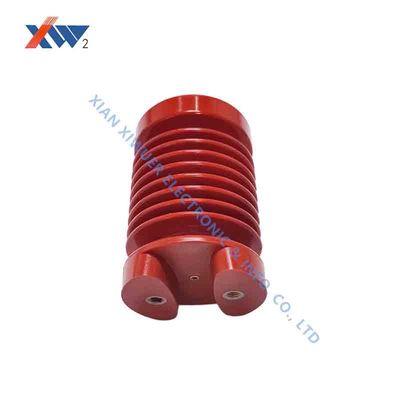

8KV Coupling Capacitor Dimensions:

18KV Coupling Capacitor Dimensions:

Dimensions

• High pressure end nut: M5
• Fixing nut: M5
• Low pressure end nut: M4
• Diameter: 55mm
• Height: 88mm
