High Voltage Protection Ceramic Doorknob Capacitor 40KV 10000pF
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Dielectric Loss | ≤0.004 | Tolerance | 20% |
|---|---|---|---|
| Operating Range | - 30 °C To + 85 °C | Rated Voltage | 40Kv |
| Capacitance | 3000pF | Operating Frequency | 50/60Hz |
| Highlight | 10000pF Ceramic Doorknob Capacitor,Voltage Protection Ceramic Doorknob Capacitor,Doorknob High Voltage Capacitor |
||
Product Description

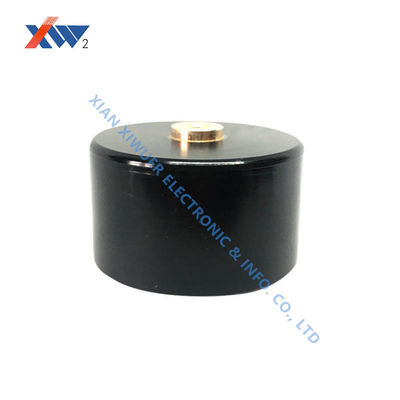

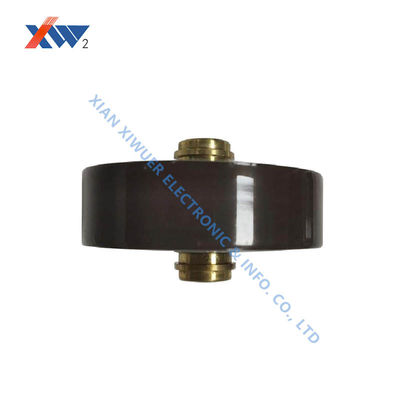

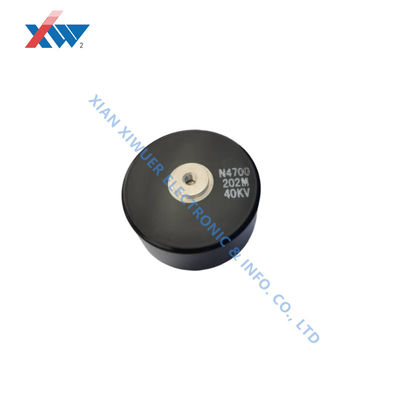

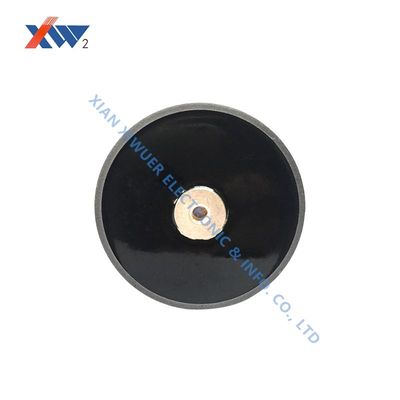

40KV 10000pF High Voltage Ceramic Doorknob Capacitors
Door handle capacitor is a kind of high-voltage ceramic capacitor, mainly used in high voltage frequency multiplier, voltage protection, decoupling circuit, laser generator, switching circuit, welding equipment, exchange limit, DC storage, and another high peak currents and high repetition rate circuit.
Features
• Low dissipation factor of 0.1 % at 20kHz to 1000kHz
• N4700 (T3M) Class 1, strontium-based ceramic dielectric
• Negligible piezoelectric/electrostrictive effect
•Screw terminal mounting
Application
-
Voltage protection, the decoupling circuit
-
Welding equipment
-
DC storage
-
High-frequency coupling
DIMENSIONS
Technical Parameter
| Typical model's electrical parameter: | |||||||||
| Sq | Model Number | Dielectric Loss | Withstand Voltage | Insulation Resistance | Dimension(mm) | ||||
| D | H | L | D | M | |||||
| 1 | 20kV-2000pF | ≤0.004 | 1.5Ur?60s | ≥1.0 x 106MΩ | 45 | 19 | 23 | 12 | 5 |
| 2 | 20kV-10000pF | 65 | 15 | 19 | 12 | 5 | |||
| 3 | 20kV-18000pF | 80 | 17 | 25 | 12 | 5 | |||
| 4 | 30kV-1000pF | 45 | 24 | 32 | 12 | 4 | |||
| 5 | 30kV-2700pF | 60 | 20 | 28 | 12 | 4 | |||
| 6 | 30kV-12000pF | 74 | 18 | 26 | 12 | 5 | |||
| 7 | 40kV-150pF | 20 | 33 | 41 | 8 | 4 | |||
| 8 | 40kV-500pF | 28 | 33 | 41 | 8 | 4 | |||
| 9 | 40kV-7500pF | 80 | 24 | 29 | 12 | 6 | |||
| 10 | 40kV-10000pF | 80 | 22 | 26 | 16 | 5 | |||
| 11 | 50kV-1000pF | 50 | 30 | 34 | 12 | 4 | |||
| 12 | 50kV-1000pF | 32 | 27 | 31 | 16 | 5 | |||
| 13 | 50kV-5600pF | 80 | 31 | 35 | 16 | 5 | |||
| 14 | 60kV-1500pF | 50 | 31 | 34 | 12 | 5 | |||
| 15 | 60kV-3000pF | 65 | 32 | 35 | 16 | 5 | |||
| 16 | 100kV-500pF | 50 | 54 | 58 | 12 | 5 | |||
| 17 | 100kV-2000pF | 51 | 32 | 35 | 16 | 5 | |||
| 18 | 100kV - 1500pF(Insulator Type) | 68 | 36 | 40 | 16 | 5 | |||
| 19 | 150kV-820pF | 65 | 95 | 100 | 12 | 5 | |||
| 20 | 200kV-600pF | 50 | 90 | 94 | 16 | 5 | |||
