High Frequency High Power Ceramic Capacitor 12KV-190pF High Voltage Doorknob Capacitors
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Operating Temperature | -30°C ~ 85°C | Nominal Working Voltage | 12KV |
|---|---|---|---|
| Capacitance Tolerance | 190pF | Withstanding Voltage | 5 0 H Z 4 2 KV ·1 M In （ In The Oil ） |
| Tolerance | ±20pF | Dielectric Losses | 1 V, 1 KHz, 2 0 ～ 2 5 ℃ ＜ 0 .4 ％ |
| Highlight | High Frequency High Power Ceramic Capacitor,High Power Ceramic Capacitor 12KV,190pF High Voltage Doorknob Capacitors |
||
Product Description

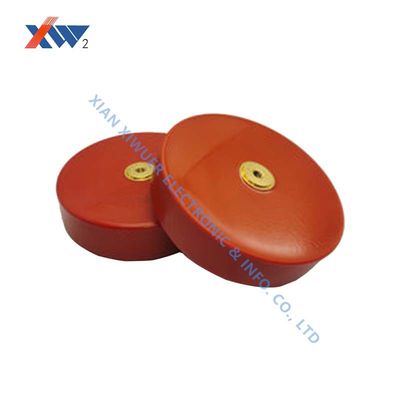

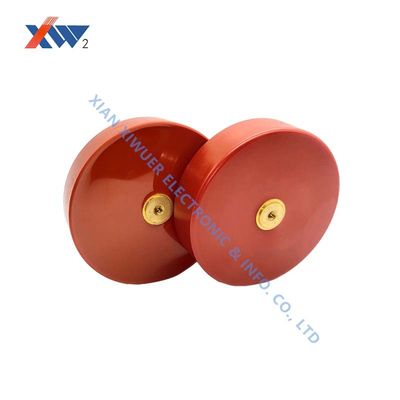

High Frequency High Power Ceramic Capacitor 12KV-190pF High Voltage Doorknob Capacitors
Capacitors are ceramic, fixed capacitors, and vacuum capacitors. The rating of 2200 pF capacitance at 7 KV peak voltage. These are brand-new units in factory boxes, many of which can be used for mass production.
Features
- High insulation resistance
- Epoxy coating
- Thread terminal installation
- Ceramic single-layer capacitor
- Material classification: Used to define compliance
Application
This capacitor powers electronics like a TV, computer, and home appliances using a wave-filtering return circuit.
Technical Parameter
| Part No | Dielectric | Capacity | Rated voltage | Rated power | Dielectric loss | D/H A(mm) | D/H B(mm) | Screw (mm) |
| 202RF | 280 | 2000PF | 50KV | 280KVA | 8% | 82*22 | 87*22 | M10 |
| 252RF | 280 | 2500PF | 40KV | 280KVA | 8% | 95*22 | 112*22 | M10 |
| 302RF | 280 | 3000PF | 30KV | 280KVA | 8% | 104*22 | 115*22 | M10 |
| 402RF | 320 | 4000PF | 30KV | 280KVA | 0.5% | 104*22 | 115*22 | M10 |
| 502RF | 320 | 5000PF | 30KV | 280KVA | 0.5% | 104*22 | 115*22 | M10 |
| 602RF | 320 | 6000PF | 30KV | 260KVA | 0.5% | 115*22 | 125*22 | M10 |
| 802RF | 850 | 8000PF | 20KV | 260KVA | 1% | 95*22 | 115*22 | M10 |
| 103RF | 850 | 10000PF | 15KV | 260KVA | 1% | 104*22 | 115*22 | M10 |
| 203RF | 850 | 20000PF | 10KV | 260KVA | 1% | 120*22 | 130*22 | M10 |
