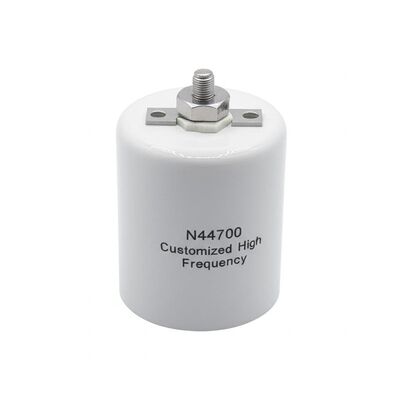

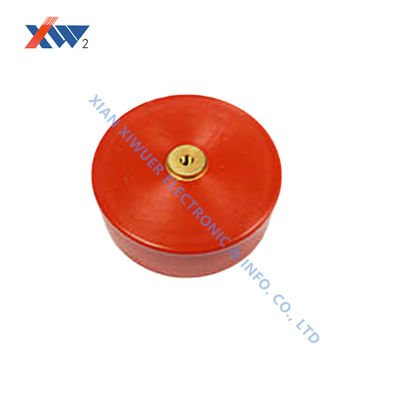

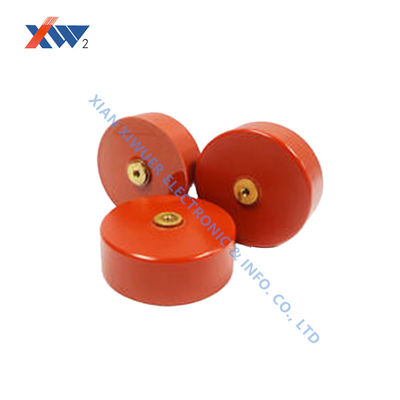

Ceramic High Voltage Doorknob Capacitor with N4700 Dielectric 20KVDC Rated Voltage for High Frequency Customized Applications
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Voltage | 20KVDC | Threaded Terminals | M5 |
|---|---|---|---|
| Ceramic Dielectric | N4700 (Class 1) | Application | Used In High-voltage DC Pulse Power Supply, Lasers |
| Capacitance | 2000pF | Capacitance Tolerance | 5%(J) |
| Highlight | 20KVDC High Voltage Ceramic Capacitor,High Voltage Doorknob Capacitor N4700,Customized High Voltage Doorknob Capacitor |
||
Product Description
Ceramic High Voltage Doorknob Capacitor With N4700 Customized High Frequency
High voltage doorknob capacitor with N4700 ceramic material customized for high frequency applications.
Key Features
- Excellent temperature stability
- High voltage pulse capability
- Standard mold production with short lead times
- High-temperature resistant resin, resistant to cracking
- Capacitance accuracy: 10%
- Customizable to meet specific customer requirements
Applications
- Voltage Converter
- Power Converter Inverter Transformer
- High Voltage Transformers
- Outdoor Voltage Transformers
Technical Parameters
Typical models electrical parameters:
| Sq | Model Number | Dielectric Loss | Withstand Voltage | Insulation Resistance | D (mm) | H (mm) | L (mm) | D (mm) | M (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 20kV-2000pF | ≤0.004 | 1.5Ur ≥60s | ≥1.0 x 10⁶MΩ | 45 | 19 | 23 | 12 | 5 |
| 2 | 20kV-10000pF | - | - | - | 65 | 15 | 19 | 12 | 5 |
| 3 | 20kV-18000pF | - | - | - | 80 | 17 | 25 | 12 | 5 |
| 4 | 30kV-1000pF | - | - | - | 45 | 24 | 32 | 12 | 4 |
| 5 | 30kV-2700pF | - | - | - | 60 | 20 | 28 | 12 | 4 |
| 6 | 30kV-12000pF | - | - | - | 74 | 18 | 26 | 12 | 5 |
| 7 | 40kV-150pF | - | - | - | 20 | 33 | 41 | 8 | 4 |
| 8 | 40kV-500pF | - | - | - | 28 | 33 | 41 | 8 | 4 |
| 9 | 40kV-7500pF | - | - | - | 80 | 24 | 29 | 12 | 6 |
| 10 | 40kV-10000pF | - | - | - | 80 | 22 | 26 | 16 | 5 |
| 11 | 50kV-1000pF | - | - | - | 50 | 30 | 34 | 12 | 4 |
| 12 | 50kV-1000pF | - | - | - | 32 | 27 | 31 | 16 | 5 |
| 13 | 50kV-5600pF | - | - | - | 80 | 31 | 35 | 16 | 5 |
| 14 | 60kV-1500pF | - | - | - | 50 | 31 | 34 | 12 | 5 |
| 15 | 60kV-3000pF | - | - | - | 65 | 32 | 35 | 16 | 5 |
| 16 | 100kV-500pF | - | - | - | 50 | 54 | 58 | 12 | 5 |
| 17 | 100kV-2000pF | - | - | - | 51 | 32 | 35 | 16 | 5 |
| 18 | 100kV-1500pF (Insulator Type) | - | - | - | 68 | 36 | 40 | 16 | 5 |
| 19 | 150kV-820pF | - | - | - | 65 | 95 | 100 | 12 | 5 |
| 20 | 200kV-600pF | - | - | - | 50 | 90 | 94 | 16 | 5 |
