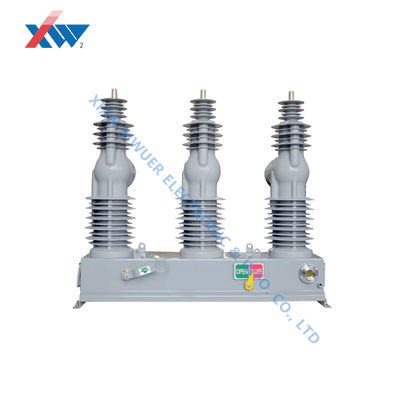

12kV 1250A Outdoor Solid-Sealed Pole Mounted Auto Circuit Recloser With Power Box

12kV 1250A outdoor poles solid-sealed poles with power box pole mounted auto circuit recloser

Introduction

    The MIS-12 outdoor pole-mounted pole is designed for the primary and secondary deep integration scheme of the ZW32 high-voltage vacuum circuit breaker pole type. It has built-in voltage sensors (1 set of incoming lines and 1 set of outgoing lines) and electromagnetic current transformers. (Phase sequence, combined zero sequence), take the capacitive component. Stable accuracy, reduced weight, and simplified installation realize the intelligent integration of ZW32 high-voltage vacuum circuit breaker.

Features

• The body is integrally cast with epoxy resin, and the high-voltage vacuum arc extinguishing chamber, conductive parts and sampling elements are simultaneously embedded into the epoxy resin to form an integrated component
• The outer surface is covered with outdoor silicone rubber, which has aging resistance, weather resistance, excellent hydrophobicity and anti-collision;
• Meet the requirements of pollution level IV and altitude of 4000 meters

Operating environment conditions

• Ambient air temperature +40℃ to -45℃, 24h average temperature ≤35℃
• Wind speed is not greater than 34m/s
• The altitude is not higher than 4000m
• Environmental humidity: the monthly average relative humidity is not greater than 90%: the daily average relative humidity is not greater than 95%
• The installation site should be a place free from flammable, explosive hazards, chemical corrosion and frequent severe vibrations.

Electrical Technical Parameter

Dimension

​
