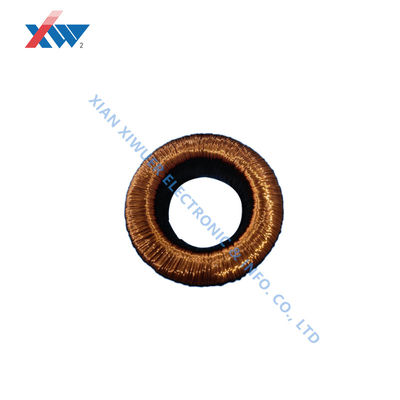

High Accuracy Rogowski Coils Wrapped In Copper Wire High Linearity Used For Switchgear

High accuracy Rogowski Coils high linearity used for switchgear current sensor with 4m high temperature resistant wire

Rogowski coils are typically installed in switchgear or an electrical panel. They can be connected directly or indirectly to an energy or power meter to obtain accurate amperage measurements. The coil works by measuring the induced voltage within the coil, which is proportional to the rate of change of the current being measured.


When choosing a Rogowski coil, you should consider accuracy, amperage range, unique installation site challenges, sensitivity, and frequency response.

Features

• Rogowski coils are more versatile than other types of current transformers because they don't have a core that saturates, which allows them to be used in a wider range of amperages.
• Rogowski coils have several advantages, including: Flexible, Reduced cost, High linearity, Fast responses to changing currents, and No inserted losses.

Application

Rogowski coils have many current monitoring applications, including precision welding systems, arc melting furnaces, Electromagnetic launchers, Electric power transmission, and Pulsed power.

This series of coils is mainly used for the conversion of phase sequence current and zero sequence current in combined sensors and sealed pole products.

Technical Parameter

Dimension

​
