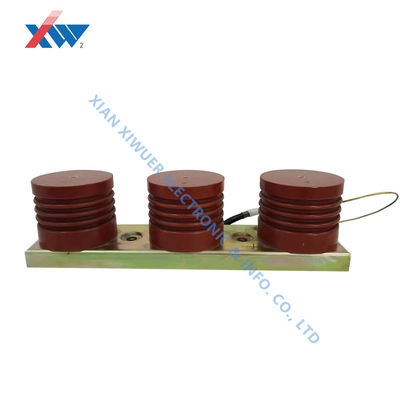

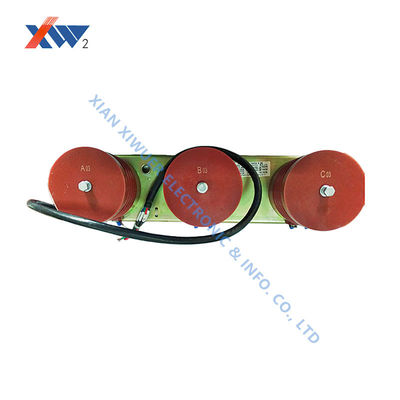

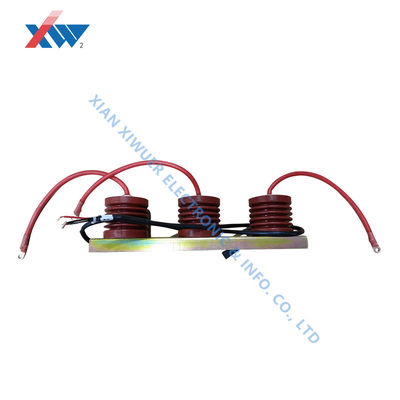

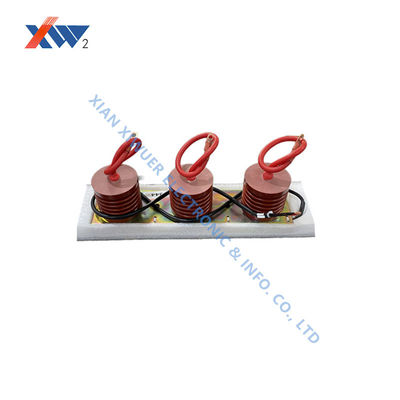

Indoor Three-phase Electric Medium Voltage Sensor 10kv Transformers For Voltage Measurement
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Secondary Input Voltage | 6.5V/3（Zero Sequence Voltage） | Withstand Voltage Level (1min Power Frequency Withstand Voltage) | 42KV |
|---|---|---|---|
| Relative Humidity | ≤60% | Installation Site | MV Switch |
| Lightning Impulse Withstand Voltage | 75KV | Color | Red |
| Highlight | Medium Voltage Sensor 10kv,Voltage Transformers For Voltage Measurement,Three-phase Medium Voltage Sensor |
||
Product Description
Voltage sensor 10kv transformers for voltage measurement indoor three-phase electric medium voltage
Features
- Small size and lightweight
- Can be connected to a computer to achieve multi-function and intelligence.
- Adapt to the large capacity and high voltage of power systems, the miniaturization and compactization of modern power grids, and the electronic digitization and automation of metering and transmission and distribution systems.
Application
Voltage sensors are used in voltage distribution lines in smart grids for voltage measurement, regulation and monitoring;
Technical Parameter
| Parameter Category | Technical Indicator | |
| Voltage level | 10KV | |
| Primary input voltage | 10KV/√3 | |
| Secondary input voltage | 6.5V/3(Zero sequence voltage) | |
| Accuracy level (zero sequence voltage) | ≤3P | |
| Rated frequency | 50Hz | |
| Withstand voltage level (1min power frequency withstand voltage) | 42KV | |
| Lightning impulse withstand voltage (peak) | 75KV | |
| Partial discharge | ≤20pC 14.4KV | |
| Executive standard | IEC 60044-7; GB/T20840.7-2007; GB/T20840.1-2010 | |
| Operating environment | Ambient temperature | -40℃~+70℃ |
| Daily average temperature difference | ≤30℃ | |
| Altitude | ≤3000M | |
| Relative humidity | ≤60% | |
| Maximum wind speed | 34m/s | |
| Rated load | ≥5MΩ | |
| Service life | ≥18years | |
Dimension
