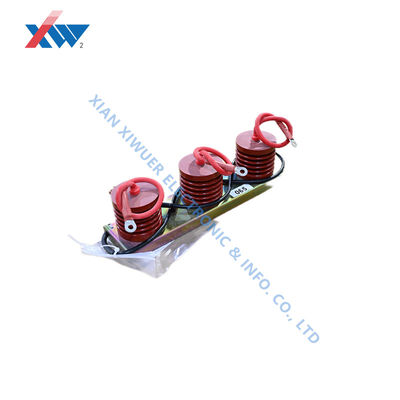

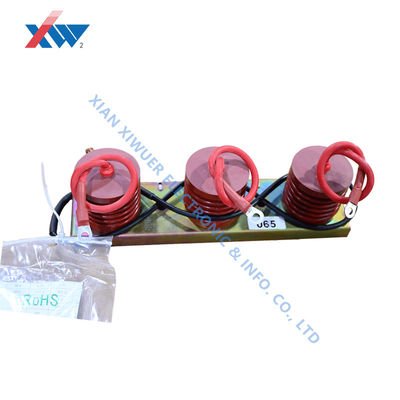

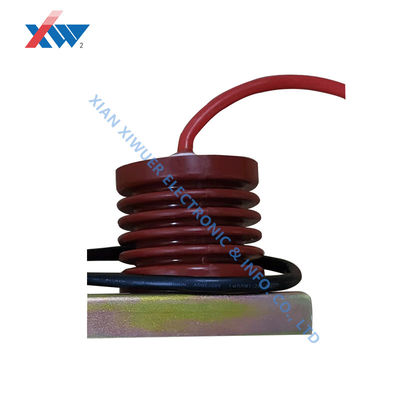

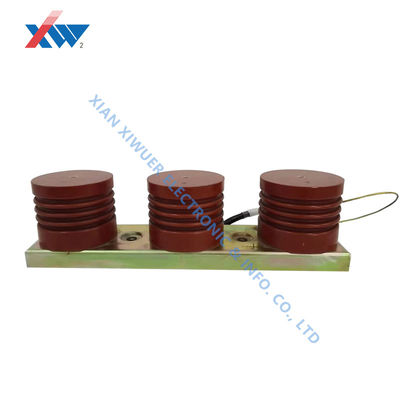

Intelligent 10kv Grid Voltage Dividing Capacitor High Voltage Sensor Used For Power Supply X-ray Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage Level | 10KV | Primary Input Voltage | 10KV/√3 |
|---|---|---|---|
| Secondary Input Voltage | 6.5V/3（Zero Sequence Voltage | Accuracy Level (zero Sequence Voltage) | 3P（-40℃~70℃） |
| Rated Frequency | 50/60Hz | Insulation Resistance | 1kV·1min ＞10000MΩ |
| Highlight | Intelligent grid voltage dividing capacitor,10kv grid voltage dividing capacitor,Power Supply X-ray Machine Capacitor |
||
Product Description
Intelligent 10kv grid voltage dividing capacitor high voltage generator high voltage used for power supply x-ray machine
Features
- With high accuracy, which can replace the high-cost zero-sequence voltage transformer
- The operation is stable and reliable
- The sensor adopts the Capacitive voltage divider principle and liquid independent packaging technology
Application
It is mainly used to test the zero-sequence voltage.
Technical Parameter
| Parameter Category | Technical Indicator | |
| Voltage level | 10KV | |
| Primary input voltage | 10KV/√3 | |
| Secondary input voltage | 6.5V/3(Zero sequence voltage) | |
| Accuracy level (zero sequence voltage) | 3P(-40℃~70℃) | |
| Rated frequency | 50/60Hz | |
| Withstand voltage level (1min power frequency withstand voltage) | 50Hz 42kV | |
| Lightning impulse withstand voltage (peak) | 1.2/50μs 75kV peak | |
| Partial discharge | 14.4kV≤10pC | |
| Insulation resistance | 1kV·1min ＞10000MΩ | |
| Executive standard | IEC 60044-7; GB/T20840.7-2007; GB/T20840.1-2010 | |
| Operating environment | Ambient temperature | -40℃~+70℃ |
| Daily average temperature difference | ≤30℃ | |
| Altitude | ≤3000M | |
| Relative humidity | ≤60% | |
| Maximum wind speed | 34m/s | |
| Rated load | ≥5MΩ | |
| Service life | ≥18 years | |
Dimension
