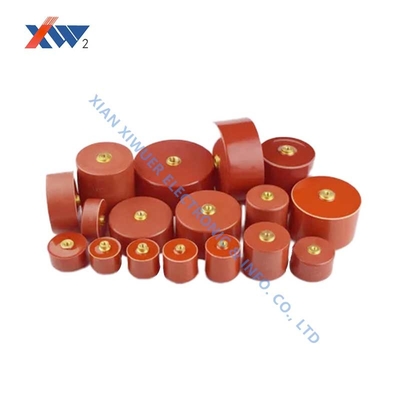

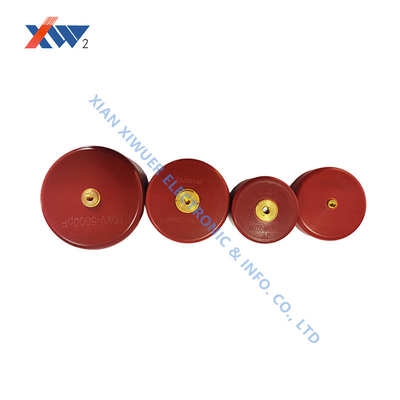

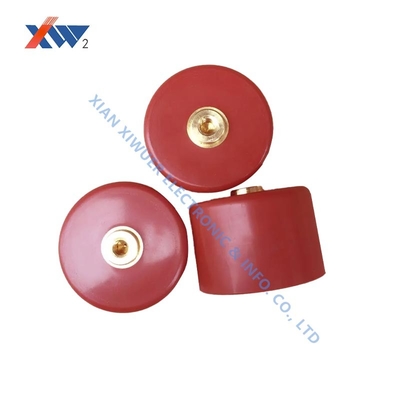

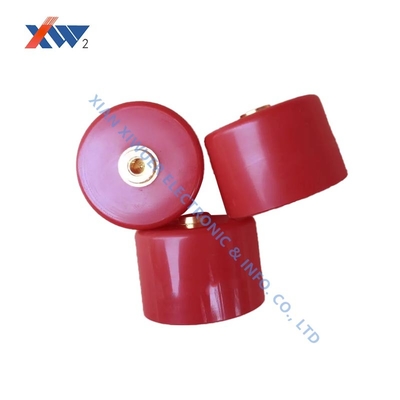

High Voltage Doorknob Capacitor 24kV 1100pF Non Polarized Capacitor Hv ceramic capacitor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Voltage | 24kVDC | Capacitance | 1100pF |
|---|---|---|---|
| Test Voltage (KVAC) | 24kV | Product Name | Cylindrical Ultra High Voltage Ceramic Capacitors 20kV 2000pF High Voltage Doorknob Capacitor |
| Insulation Resistance | ≥1.0 X 100000MΩ | Product Category | High Voltage Doorknob Capacitors |
| Operating Temperature Range | -25℃ To +85℃ | ||
| Highlight | 24kV High Voltage Doorknob Capacitor,1100pF High Voltage Doorknob Capacitor,hv ceramic High Voltage Doorknob Capacitor |
||
Product Description
high voltage doorknob capacitor supplier 24kV 1100pF non polarized capacitor hv ceramic capacitor
Product Description:
Our High Voltage Doorknob Capacitors are designed to withstand high voltage levels of up to 8kV, making it an ideal choice for customers who require reliable and safe components for their systems. Its low dielectric loss ensures minimal energy loss and maximum efficiency.
Our product is trusted by major customers such as ABB, Schneider, GE, ZTE, XD Electric, XJ Electric, PingGao Electric and more. This is a testament to the quality and reliability of our product.
Our High Voltage Doorknob Capacitors are commonly used in high voltage applications such as power supplies, circuit breakers, and high voltage transformers. With a rated voltage of 20kVDC, it is designed to meet the demands of high voltage systems.
Trust our Cylindrical Ultra High Voltage Ceramic Capacitors 20kV 2000pF High Voltage Doorknob Capacitor for your high voltage applications. Its superior design and reliable performance make it the ideal choice for your needs.
Features:
- Product Name: High Voltage Doorknob Capacitors
- Operating temperature range: -25℃ to +85℃
- Charge and discharge voltage (KV): 22.5
- Dielectric Loss: ≤0.8% (low dielectric loss)
- Rated Voltage: 8kV
- Diameter (D): 56mm
- Used for power inverter voltage converter
Technical Parameters:
| Product Name: | cylindrical ultra high voltage ceramic capacitors 20kV 2000pF high voltage doorknob capacitor |
| Product Category: | High Voltage Doorknob Capacitors |
| Part No.: | CT8-1 |
| Features: | Large capacity, High operating frequency, High withstand impulse voltage, ultra low partial discharge |
| Test Voltage (KVAC): | 24kV |
| Diameter (D): | 56mm |
| Length (L): | 19mm |
| Insulation Resistance: | ≥1.0 X 100000MΩ |
| Dielectric Loss: | ≤0.8% |
| Operating temperature range: | -25℃ to +85℃ |
These High voltage doorknob capacitors are used for power inverter and voltage converter applications due to their large capacity and high operating frequency. They have low dielectric loss and can withstand high impulse voltage.
Applications:
The High Voltage Doorknob Capacitors from XIWUER are ideal for various applications, including power supplies, high voltage generators, and X-ray equipment. They have a dimension of D56mm and length of 19mm. With a capacitance of 2000pF, the CT8-1-50KVDC-5600pF model offers large capacity and high operating frequency. It also has a high withstand impulse voltage and ultra-low partial discharge, making it a reliable choice for demanding industries.
As a vacuum casting ceramic capacitor supplier, XIWUER ensures the highest quality of their products. Their High Voltage Doorknob Capacitors are designed and manufactured to meet strict industry standards. They are suitable for use in a wide range of occasions and scenarios, including medical equipment, telecommunications, aviation, and military applications.
Support and Services:
Our High Voltage Doorknob Capacitors are designed to provide reliable performance in a variety of high voltage applications. Our technical support team is available to assist with any product-related inquiries and to provide guidance on installation and usage. Additionally, we offer a range of services to ensure proper maintenance and functioning of our capacitors, including testing and repair services. Contact us today to learn more about how we can support your high voltage capacitor needs.
Packing and Shipping:
Product Packaging:
- Each high voltage doorknob capacitor will be individually wrapped in anti-static packaging to prevent any damage during shipping.
- All capacitors will be packed in a sealed box to prevent any moisture or dust from entering.
- The box will be clearly labeled with the product name, quantity, and any relevant safety warnings.
Shipping:
- All orders will be shipped via a reputable courier service to ensure timely and safe delivery.
- Customers will be provided with a tracking number so they can monitor the progress of their shipment.
- Shipping costs will be calculated based on the destination and weight of the order.
FAQ:
Here are five frequently asked questions and answers about our XIWUER High Voltage Doorknob Capacitors:
Q: What is the model number of this capacitor?
A: The model number is CT8-1-50KVDC- 5600pF.
Q: Where are these capacitors made?
A: These capacitors are made in Xian, Shannxi China.
Q: What is the minimum order quantity for these capacitors?
A: The minimum order quantity is 1 piece.
Q: What is the price of these capacitors?
A: The price is negotiable. Please contact us for a quote.
Q: What certifications do these capacitors have?
A: These capacitors are certified with ISO9001, ISO14001, and OHSAS18001.
