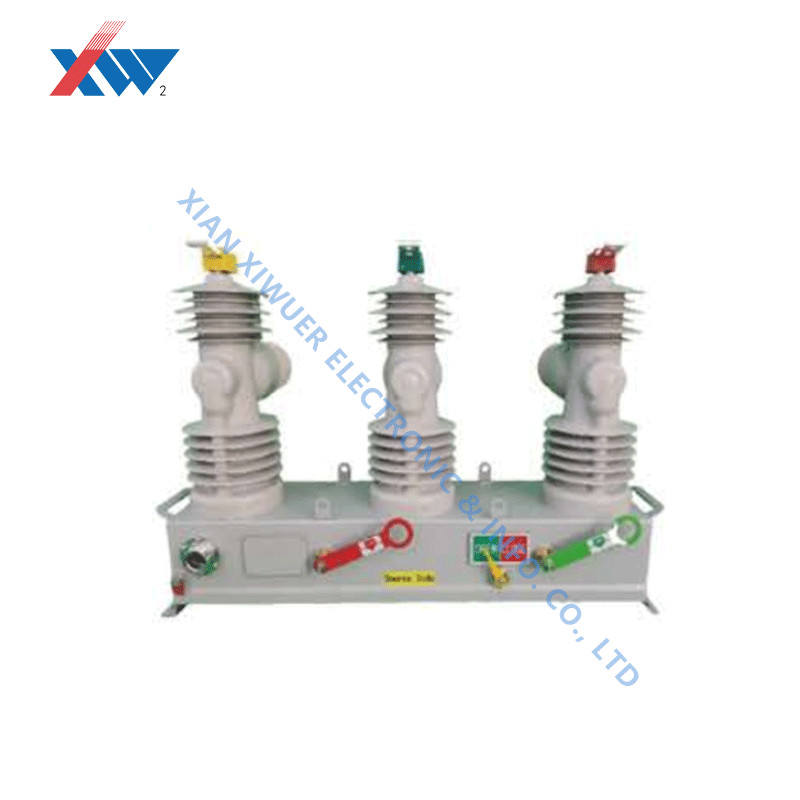

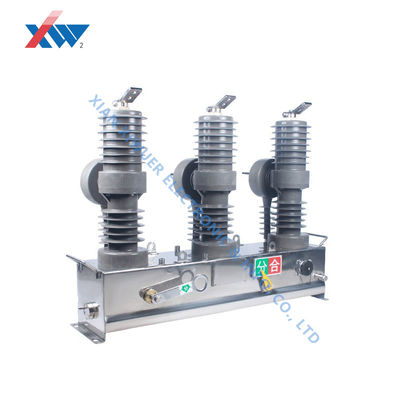

38kV Outdoor Pole Mounted Permanent Magnet Vacuum Circuit Breaker Vacuum Auto Recloser

38kV outdoor pole mounted permanent magnet vacuum circuit breaker vacuum auto recloser

Introduction

  Permanent magnet mechanism is adopted, with timely response and more accurate breaking capacity. Vacuum arc extinguishing and epoxy resin solid insulation are applied, reducing maintenance costs and environmental pollution. After the fault is detected, it is automatically disconnected and tries to close, which can restore the power supply in a short time and reduce the power off time. The overall size is small, easy to install. It is designed with whole sealing structure, with a high level of protection, suitable for various harsh environmental conditions.

Features

• The body is integrally cast with epoxy resin, and the high-voltage vacuum arc extinguishing chamber, conductive parts and sampling elements are simultaneously embedded into the epoxy resin to form an integrated component
• The outer surface is covered with outdoor silicone rubber, which has aging resistance, weather resistance, excellent hydrophobicity and anti-collision;
• Meet the requirements of pollution level IV and altitude of 4000 meters

Operating environment conditions

• Ambient air temperature +40℃ to -45℃, 24h average temperature ≤35℃
• Wind speed is not greater than 34m/s
• The altitude is not higher than 4000m
• Environmental humidity: the monthly average relative humidity is not greater than 90%: the daily average relative humidity is not greater than 95%
• The installation site should be a place free from flammable, explosive hazards, chemical corrosion and frequent severe vibrations.

Electrical Technical Parameter

Dimension

​
