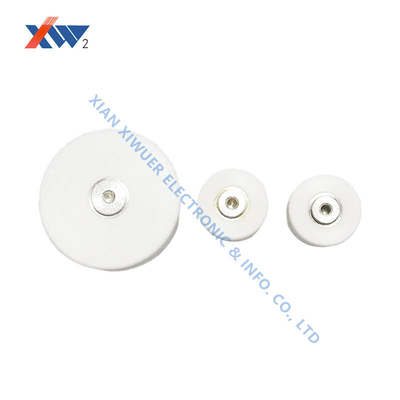

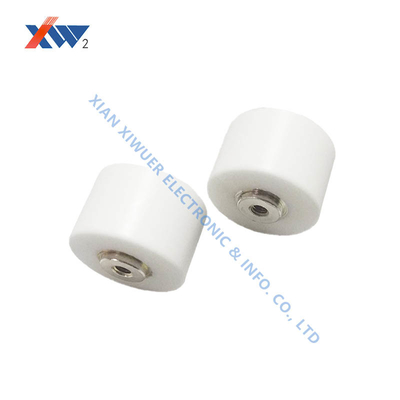

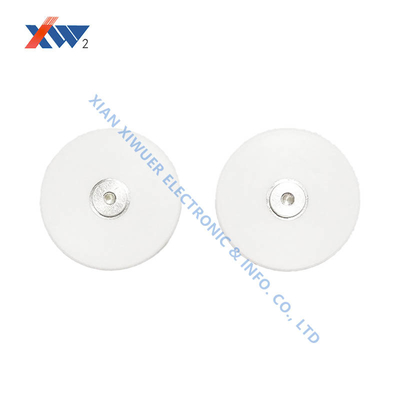

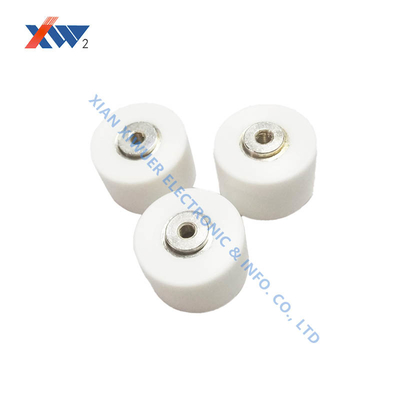

20kV-2000pF/High Voltage Doorknob Capacitors For Gas Laser DC HV Power Supplies

Detail Information

Place of Origin:

XIAN, CHINA

Certification:

ISO9001,ISO14001,ISO45001,CCC

Document:

Rated Voltage:

20kV

Capacitance:

2000pF

Dielectric Loss:

≤0.004

Withstand Voltage:

1.5Ur ≥60s

Insulation Resistanceorrange:

≥1.0 X 10 5MΩ

Screw:

Packaging Details:

Carton

Supply Ability:

3,000,000 pcs a year

Highlight:

Product Description

20kV-2000pF/High Voltage Doorknob Capacitors/Used for Gas laser
DC HV power supplies

Features

Application

Typical models electrical parameter:
Sq	Model Number	Dielectric Loss	Withstand Voltage	Insulation Resistance	Dimension(mm)
Sq	Model Number	Dielectric Loss	Withstand Voltage	Insulation Resistance	D	H	L	d	M
1	20kV-2000pF	≤0.004	1.5Ur ≥60s	≥1.0 x 10 5MΩ	45	19	23	12	5
2	20kV-10000pF				65	15	19	12	5
3	20kV-18000pF				80	17	25	12	5
4	30kV-1000pF				45	24	32	12	4
5	30kV-2700pF				60	20	28	12	4
6	30kV-12000pF				74	18	26	12	5
7	40kV-150pF				20	33	41	8	4
8	40kV-500pF				28	33	41	8	4
9	40kV-7500pF				80	24	29	12	6
10	40kV-10000pF				80	22	26	16	5
11	50kV-1000pF				50	30	34	12	4
12	50kV-1000pF				32	27	31	16	5
13	50kV-5600pF				80	31	35	16	5
14	60kV-1500pF				50	31	34	12	5
15	60kV-3000pF				65	32	35	16	5
16	100kV-500pF				50	54	58	12	5
17	100kV-2000pF				51	32	35	16	5
18	100kV - 1500pF(Insulator Type)				68	36	40	16	5
19	150kV-820pF				65	95	100	12	5
20	200kV-600pF				50	90	94	16	5
