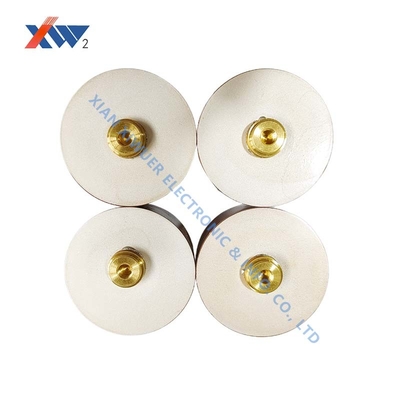

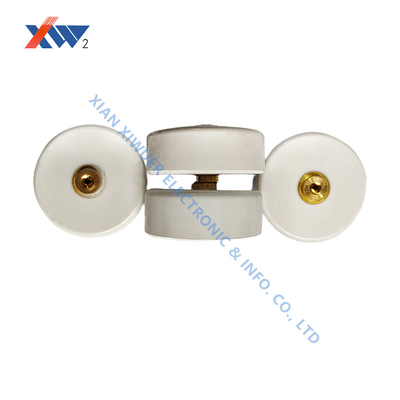

10KV High Voltage Doorknob Capacitors 5600pF for Both High and Low Frequency Applications

Place of Origin	XIAN, CHINA
Brand Name	XIWUER
Certification	ISO9001,ISO14001,ISO45001,CCC
Model Number	CT8-1-15kV-5600pF
Document	High Voltage Ceramic Capaci...25.pdf
Minimum Order Quantity	1pcs

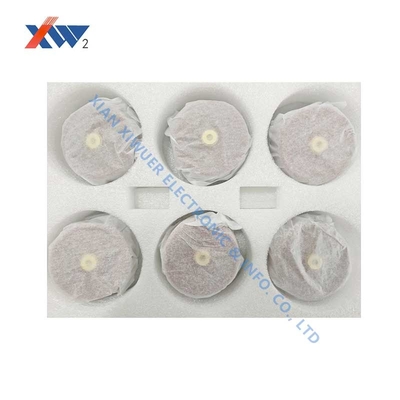

Packaging Details	Carton
Delivery Time	5-7days
Payment Terms	L/C,T/T
Supply Ability	3,000,000 pcs a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Rated Voltage	15kV	Capacitance	5600pF
Charge And Discharge Voltage （KV）	10	Operating Temperature Range	－25℃ ～＋85℃
Screw	M4
Highlight	Low Frequency High Voltage Doorknob Capacitors , 5600pF High Voltage Doorknob Capacitors , 10KV High Voltage Doorknob Capacitors

Leave a Message

Product Description

15kV-5600pF.../High Voltage Doorknob Capacitors/both high frequency and low frequency products
remark:
We can customize products according to your requirements.
10KV High Voltage Doorknob Capacitors 5600pF for Both High and Low Frequency Applications 0 Professional manufacturer ~ SPD, HV Ceramic Capacitor, TMOV, Varistor and Thermistor.

Part No.	Capacitance (pF)	Rated Voktage(KVDC)	Charge and discharge voltage (KV)	Dimension(mm)					Operating temperature range
Part No.	Capacitance (pF)	Working voltage	Charge and discharge voltage (KV)	D	H	L	M	d	Operating temperature range
CT8-1	390	15	10	20	19	28	4	8	－25℃ ～＋85℃
	500			31	20	35	5	10
	1000			31	18	33	5	10
	2500			40	13	22	5	12
	5600			60	21	27	4	12
	68	20	15	20	25	29	4	8
	1000			32	13	22	4	10
	1800			45	22	32	4	12
	3300			60	19	27	4	12
	4000			50	15	24	/	/
	10000			80	23	32	/	/
	50	30	20	20	12	24	4	8
	330			20	27	36	4	8
	400			28	28	37	4	8
	500			26	17	25	4	8
	1000			45	23	32	/	/
	1000			31	17	21	/	/
	2000			50	23	32	4	12
	2700			60	20	29	/	/
	4000			60	19	28	5	12
	5000			74	25	30	5	12
	3800	35	20	74	23	32	/	/
	140	40	30	20	32	41	4	8
	200			20	33	42	/	/
	300			26	33	42	4	8
	820			38	27	31	/	/
	500			28	33	43	4	8
	1000			40	27	36	4	12
	3300			65	27	36	/	/
	4400			80	27	36	5	12
	5600			80	23	28	5	12
	7500			80	24	28	6	12
	570	45	30	36	24	32	4	12
	710			40	31	39	4	10
	1000			50	32	36	4	12
	330	50	35	26	31	39	4	8	－25℃ ～＋85℃
	600			45	34	43	4	12
	1000			50	27	36	/	/
	2000			60	32	41	5	12
	3000			74	29	38	5	12
	4000			74	34	38	5	12
	5000			80	34	38	5	12
	500	60	40	38	40	44	4	12
		60	40
	1000			50	39	47	5	12
