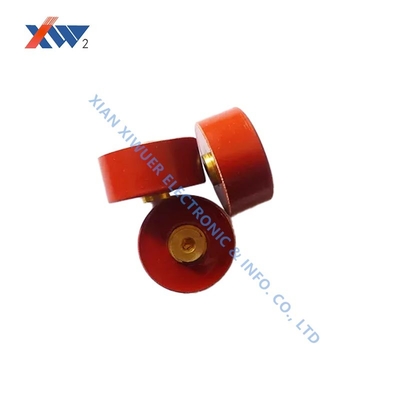

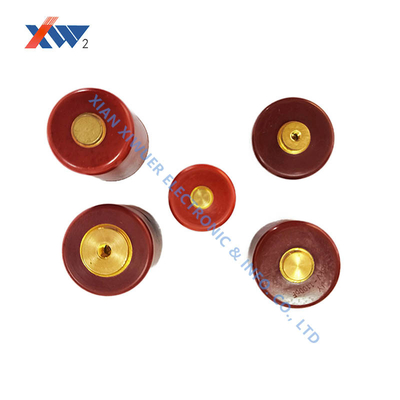

Doorknob Capacitors with High Voltage Capacitance and Wide Operating Temperature Range Withstand Voltage 1.5Ur·1min
| Place of Origin | XIAN, CHINA |
|---|---|
| Brand Name | XIWUER |
| Certification | ISO9001,ISO14001,ISO45001,CCC |
| Model Number | CT8-1 |
| Document | High Voltage Ceramic Capaci...25.pdf |
| Minimum Order Quantity | 1pcs |
| Packaging Details | Carton |
| Delivery Time | 5-7days |
| Payment Terms | L/C,T/T |
| Supply Ability | 3,000,000 pcs a year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Operating Temperature Range | －40℃ ～ ＋85℃ | Dielectric Loss | ≤0.0040 |
|---|---|---|---|
| Withstand Voltage | 1.5Ur·1min | Insulation Resistance | ≥1.0X100000MΩ |
| Highlight | Wide Operating Temperature Range Doorknob Capacitors,1.5Ur·1min Doorknob Capacitors,High Voltage Doorknob Capacitors |
||
Product Description
Capacitors and High Voltage Components, High Voltage Components
Doorknob Capacitors
Professional manufacturer ~ SPD, HV Ceramic Capacitor, TMOV, Varistor and Thermistor.
Please download the document to learn more about the product and we can customize products according to your requirements.
Description
These high voltage ceramic capacitors are made from a ceramic dielectric and are then encapsulated in epoxy resin. The terminal threads on the capacitors are either M4 or M5, depending on model, with a thread depth of 4mm.
As a high power capacitor they are designed for applications which require a low dissipation factor and a small voltage coefficient, they have excellent temperature characteristics a low partial discharge and a large capacitance.
The operating temperature range of the capacitors is between -40 to +85°C
Some common applications are:
Gas laser
DC HV power supplies
Lightning arresters
Voltage distribution systems
Electron Microscopes
Synchroscopes
Electrostatic Coating Machines
|
Part No. |
Capacitance (pF) |
Rated Voktage(KVDC) |
Charge and discharge voltage (KV) |
Dimension(mm) |
Operating temperature range |
|||||
|
Working voltage |
D |
H |
L |
M |
d |
|||||
|
CT8-1 |
390 |
15 |
10 |
20 |
19 |
28 |
4 |
8 |
－40℃ ～ ＋85℃ |
|
|
500 |
31 |
20 |
35 |
5 |
10 |
|||||
|
1000 |
31 |
18 |
33 |
5 |
10 |
|||||
|
2500 |
40 |
13 |
22 |
5 |
12 |
|||||
|
5600 |
60 |
21 |
27 |
4 |
12 |
|||||
|
68 |
20 |
15 |
20 |
25 |
29 |
4 |
8 |
|||
|
1000 |
32 |
13 |
22 |
4 |
10 |
|||||
|
1800 |
45 |
22 |
32 |
4 |
12 |
|||||
|
3300 |
60 |
19 |
27 |
4 |
12 |
|||||
|
4000 |
50 |
15 |
24 |
/ |
/ |
|||||
|
10000 |
80 |
23 |
32 |
/ |
/ |
|||||
|
50 |
30 |
|
20 |
20 |
12 |
24 |
4 |
8 |
||
|
330 |
20 |
27 |
36 |
4 |
8 |
|||||
|
400 |
28 |
28 |
37 |
4 |
8 |
|||||
|
500 |
26 |
17 |
25 |
4 |
8 |
|||||
|
1000 |
45 |
23 |
32 |
/ |
/ |
|||||
|
31 |
17 |
21 |
/ |
/ |
||||||
|
2000 |
50 |
23 |
32 |
4 |
12 |
|||||
|
2700 |
60 |
20 |
29 |
/ |
/ |
|||||
|
4000 |
60 |
19 |
28 |
5 |
12 |
|||||
|
5000 |
74 |
25 |
30 |
5 |
12 |
|||||
|
3800 |
35 |
|
20 |
74 |
23 |
32 |
/ |
/ |
||
|
140 |
40 |
|
30 |
20 |
32 |
41 |
4 |
8 |
||
|
200 |
20 |
33 |
42 |
/ |
/ |
|||||
|
300 |
26 |
33 |
42 |
4 |
8 |
|||||
|
820 |
38 |
27 |
31 |
/ |
/ |
|||||
|
500 |
28 |
33 |
43 |
4 |
8 |
|||||
|
1000 |
40 |
27 |
36 |
4 |
12 |
|||||
|
3300 |
65 |
27 |
36 |
/ |
/ |
|||||
|
4400 |
80 |
27 |
36 |
5 |
12 |
|||||
|
5600 |
80 |
23 |
28 |
5 |
12 |
|||||
|
7500 |
80 |
24 |
28 |
6 |
12 |
|||||
|
570 |
45 |
|
30 |
36 |
24 |
32 |
4 |
12 |
||
|
710 |
40 |
31 |
39 |
4 |
10 |
|||||
|
1000 |
50 |
32 |
36 |
4 |
12 |
|||||
|
330 |
50 |
35 |
26 |
31 |
39 |
4 |
8 |
－40℃ ～ ＋85℃
|
||
|
600 |
45 |
34 |
43 |
4 |
12 |
|||||
|
1000 |
50 |
27 |
36 |
/ |
/ |
|||||
|
2000 |
60 |
32 |
41 |
5 |
12 |
|||||
|
3000 |
74 |
29 |
38 |
5 |
12 |
|||||
|
4000 |
74 |
34 |
38 |
5 |
12 |
|||||
|
5000 |
80 |
34 |
38 |
5 |
12 |
|||||
|
500 |
60 |
|
40 |
38 |
40 |
44 |
4 |
12 |
||
|
|
|
|
|
|
|
|||||
|
|
1000 |
|
|
|
50 |
39 |
47 |
5 |
12 |
|
