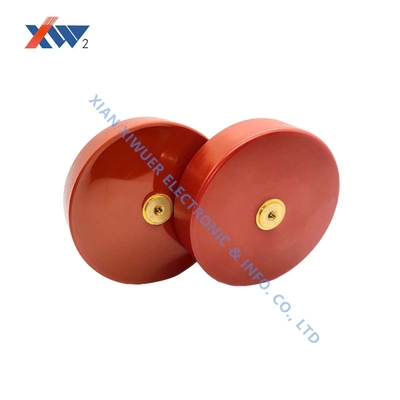

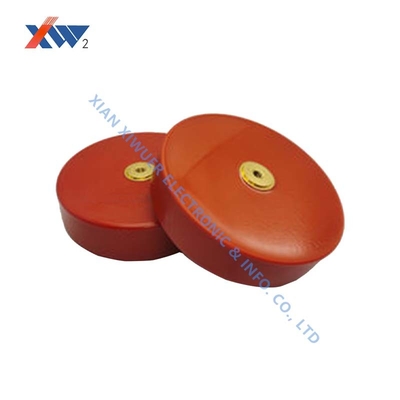

20kHz To 1000kHz High Voltage Doorknob Capacitors For High Repetition Rate Circuit
| Place of Origin | XIAN, CHINA |
|---|---|
| Brand Name | XIWUER |
| Certification | ISO9001,ISO14001,ISO45001,CCC |
| Model Number | CT8-1 |
| Document | High Voltage Ceramic Capaci...25.pdf |
| Minimum Order Quantity | 1pcs |
| Packaging Details | Carton |
| Delivery Time | 5-7days |
| Payment Terms | L/C,T/T |
| Supply Ability | 3,000,000 pcs a year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Operating Temperature Range | －40℃ ～ ＋85℃ | Dielectric Loss | ≤0.0040 |
|---|---|---|---|
| Withstand Voltage | 1.5Ur·1min | Insulation Resistance | ≥1.0X100000MΩ |
| Highlight | 1000kHz High Voltage Doorknob Capacitors,20kHz High Voltage Doorknob Capacitors |
||
Product Description
Manufacture Of High Voltage Doorknob Capacitors
Professional manufacturer ~ SPD, HV Ceramic Capacitor, TMOV, Varistor and Thermistor.
The document has detailed parameters you can download. If it does not meet your requirements, please rest assured that we can customize the product according to your requirements.
USAGE:
Mainly used in high peak current and high repetition rate circuit.Such as:
high voltage doubler, voltage protection,decoupling circuits,laser generator,
switching circuits, welding equipment, exchange limit, DC storage
high frequency coupling, AC and DC filtering applications.
FEATURES:
• Low dissipation factor of 0.1 % at 20kHz to 1000kHz
• N4700 (T3M) Class 1, strontium-based ceramic dielectric
• Negligible piezoelectric/electrostrictive effect
•Screw terminal mounting
|
Part No. |
Capacitance (pF) |
Rated Voktage(KVDC) |
Charge and discharge voltage (KV) |
Dimension(mm) |
Operating temperature range |
|||||
|
Working voltage |
D |
H |
L |
M |
d |
|||||
|
CT8-1 |
390 |
15 |
10 |
20 |
19 |
28 |
4 |
8 |
－40℃ ～ ＋85℃ |
|
|
500 |
31 |
20 |
35 |
5 |
10 |
|||||
|
1000 |
31 |
18 |
33 |
5 |
10 |
|||||
|
2500 |
40 |
13 |
22 |
5 |
12 |
|||||
|
5600 |
60 |
21 |
27 |
4 |
12 |
|||||
|
68 |
20 |
15 |
20 |
25 |
29 |
4 |
8 |
|||
|
1000 |
32 |
13 |
22 |
4 |
10 |
|||||
|
1800 |
45 |
22 |
32 |
4 |
12 |
|||||
|
3300 |
60 |
19 |
27 |
4 |
12 |
|||||
|
4000 |
50 |
15 |
24 |
/ |
/ |
|||||
|
10000 |
80 |
23 |
32 |
/ |
/ |
|||||
|
50 |
30 |
|
20 |
20 |
12 |
24 |
4 |
8 |
||
|
330 |
20 |
27 |
36 |
4 |
8 |
|||||
|
400 |
28 |
28 |
37 |
4 |
8 |
|||||
|
500 |
26 |
17 |
25 |
4 |
8 |
|||||
|
1000 |
45 |
23 |
32 |
/ |
/ |
|||||
|
31 |
17 |
21 |
/ |
/ |
||||||
|
2000 |
50 |
23 |
32 |
4 |
12 |
|||||
|
2700 |
60 |
20 |
29 |
/ |
/ |
|||||
|
4000 |
60 |
19 |
28 |
5 |
12 |
|||||
|
5000 |
74 |
25 |
30 |
5 |
12 |
|||||
|
3800 |
35 |
|
20 |
74 |
23 |
32 |
/ |
/ |
||
|
140 |
40 |
|
30 |
20 |
32 |
41 |
4 |
8 |
||
|
200 |
20 |
33 |
42 |
/ |
/ |
|||||
|
300 |
26 |
33 |
42 |
4 |
8 |
|||||
|
820 |
38 |
27 |
31 |
/ |
/ |
|||||
|
500 |
28 |
33 |
43 |
4 |
8 |
|||||
|
1000 |
40 |
27 |
36 |
4 |
12 |
|||||
|
3300 |
65 |
27 |
36 |
/ |
/ |
|||||
|
4400 |
80 |
27 |
36 |
5 |
12 |
|||||
|
5600 |
80 |
23 |
28 |
5 |
12 |
|||||
|
7500 |
80 |
24 |
28 |
6 |
12 |
|||||
|
570 |
45 |
|
30 |
36 |
24 |
32 |
4 |
12 |
||
|
710 |
40 |
31 |
39 |
4 |
10 |
|||||
|
1000 |
50 |
32 |
36 |
4 |
12 |
|||||
|
330 |
50 |
35 |
26 |
31 |
39 |
4 |
8 |
－40℃ ～ ＋85℃
|
||
|
600 |
45 |
34 |
43 |
4 |
12 |
|||||
|
1000 |
50 |
27 |
36 |
/ |
/ |
|||||
|
2000 |
60 |
32 |
41 |
5 |
12 |
|||||
|
3000 |
74 |
29 |
38 |
5 |
12 |
|||||
|
4000 |
74 |
34 |
38 |
5 |
12 |
|||||
|
5000 |
80 |
34 |
38 |
5 |
12 |
|||||
|
500 |
60 |
|
40 |
38 |
40 |
44 |
4 |
12 |
||
|
|
|
|
|
|
|
|||||
|
|
1000 |
|
|
|
50 |
39 |
47 |
5 |
12 |
|
