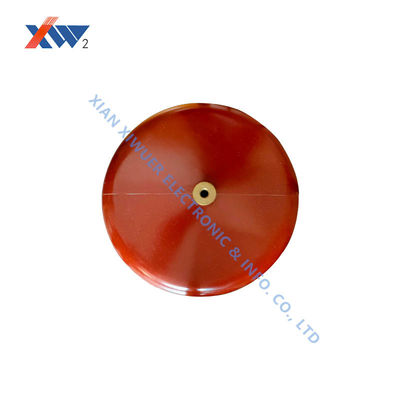

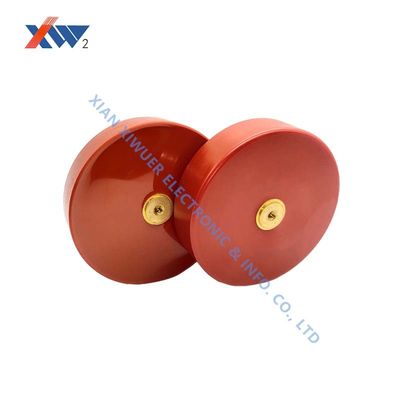

High Voltage Door Knob Transmitting Capacitors 50KV4000pF Support Customization
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | Customization door knob transmitting capacitors,50KV4000pF door knob transmitting capacitors,Door handle door knob transmitting capacitors |
||
|---|---|---|---|
You can tick the products you need and communicate with us in the message board.
Product Description
Important Properties
Description High Voltage Pulse Capacitor
Operating Temperature -20℃ ~ 85℃
Capacitance Tolerance ±10%
Rated Voltage 50KV
Capacitance 4000pF
Description Ceramic Capacitor Screw Type
High Frequency ≥ 550KHZ
Dimension D60 * T28 * H32 (mm)
Application High Voltage Power Supply
Operating Temperature -25-85C
Material N4700
High Insulation Resistance ≥ 100000MΩ
Supply Ability
Supply Ability Other specifications can be provided upon request
