30kv 2700pF Doorknob Capacitor High Voltage Pulsed Ceramic Capacitor For Laser As Dumping Capacitor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Voltage | 30kV | Capacitance | 1kV·1min>100000MΩ |
|---|---|---|---|
| Dielectric Loss | 25℃ Tg δ≤ 0.0020 | Withstand Voltage | 60KVDC·60S (in Insulating Oil) |
| Capacity Temperature Change Rate | -40℃-80℃ |
You can tick the products you need and communicate with us in the message board.
Product Description

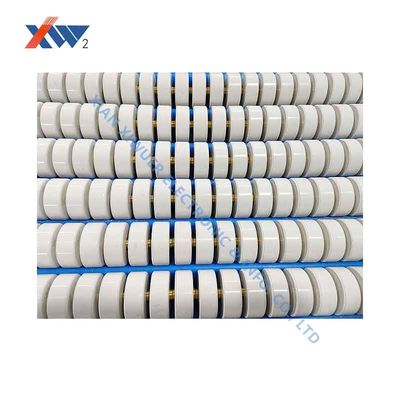

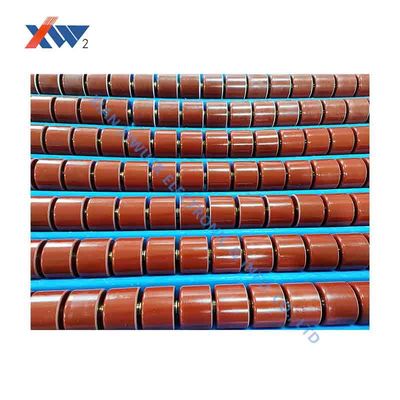

30kv 2700pF Doorknob Capacitor High Voltage Pulsed Ceramic Capacitor For Laser As Dumping Capacitor
PRODUCT DESCRIPTION
In high voltage ceramic capacitors application field, requiring a small, high voltage and high frequency characteristics. With the progress of materials, electrodes and manufacturing technology, great progress has been made in the development of high-voltage ceramic capacitors, and has been widely used. High-voltage ceramic capacitors have become an indispensable component of high-power high-voltage electronic products.
Name: doorknob style high voltage ceramic capacitor
Appearance of small size
Relative to other material more portable and reliable
Rapid pulse charge and discharge performance
Capacity with low temperature gradient
Under high or low temperature applications
Different shapes can be customized
DIMENSIONS
L=25±2mm H=21±2mm
D=80±2mm d=12±0.2mm M5 thread
Technical Parameter
| Typical models electrical parameter: | |||||||||
| Sq | Model Number | Dielectric Loss | Withstand Voltage | Insulation Resistance | Dimension(mm) | ||||
| D | H | L | D | M | |||||
| 1 | 20kV-2000pF | ≤0.004 | 1.5Ur?60s | ≥1.0 x 106MΩ | 45 | 19 | 23 | 12 | 5 |
| 2 | 20kV-10000pF | 65 | 15 | 19 | 12 | 5 | |||
| 3 | 20kV-18000pF | 80 | 17 | 25 | 12 | 5 | |||
| 4 | 30kV-1000pF | 45 | 24 | 32 | 12 | 4 | |||
| 5 | 30kV-2700pF | 60 | 20 | 28 | 12 | 4 | |||
| 6 | 30kV-12000pF | 74 | 18 | 26 | 12 | 5 | |||
| 7 | 40kV-150pF | 20 | 33 | 41 | 8 | 4 | |||
| 8 | 40kV-500pF | 28 | 33 | 41 | 8 | 4 | |||
| 9 | 40kV-7500pF | 80 | 24 | 29 | 12 | 6 | |||
| 10 | 40kV-10000pF | 80 | 22 | 26 | 16 | 5 | |||
| 11 | 50kV-1000pF | 50 | 30 | 34 | 12 | 4 | |||
| 12 | 50kV-1000pF | 32 | 27 | 31 | 16 | 5 | |||
| 13 | 50kV-5600pF | 80 | 31 | 35 | 16 | 5 | |||
| 14 | 60kV-1500pF | 50 | 31 | 34 | 12 | 5 | |||
| 15 | 60kV-3000pF | 65 | 32 | 35 | 16 | 5 | |||
| 16 | 100kV-500pF | 50 | 54 | 58 | 12 | 5 | |||
| 17 | 100kV-2000pF | 51 | 32 | 35 | 16 | 5 | |||
| 18 | 100kV - 1500pF(Insulator Type) | 68 | 36 | 40 | 16 | 5 | |||
| 19 | 150kV-820pF | 65 | 95 | 100 | 12 | 5 | |||
| 20 | 200kV-600pF | 50 | 90 | 94 | 16 | 5 | |||
Widely used in high power pulse power, particle accelerators, electromagnetic microwave equipment, laser photoelectric equipment, electronic equipment, radar detection, nondestructive testing, material, electrostatic dust removal electric field, all kinds of special pulse power supply, ect
