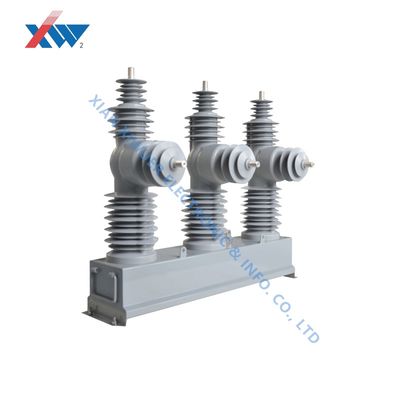

40.5kV High Voltage AC Automatic Recloser-2//Customization is supported

  • 40.5kV High Voltage AC Automatic Recloser-2//Customization is supported
Place of Origin XIAN,CHINA
Brand Name XIWUER
Certification ISO
Model Number 40.5kV High Voltage AC Automatic Recloser-2
Document Vacuum Circuit Breaker Cata...25.pdf
Minimum Order Quantity 1
Price Negotiable
Packaging Details Wooden Box
Delivery Time 25~30days
Payment Terms L/C,T/T
Supply Ability Available in Large Quantities

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

40.5kV High Voltage AC Automatic Recloser-2//Customization is supported

Specifications:

Product Name 40.5kV High Voltage AC Automatic Recloser-2

Rated voltage 40.5 kV Rated lightning impulse withstand voltage peak 200 kV
Rated current 1200 A Rated breaking current 29 kA
Frequency 60 Hz Signal acquisition: Dual-side voltage signal sampling


Product description:

A vacuum circuit breaker is a high-voltage electrical device that uses vacuum as an arc-extinguishing medium and an insulating medium to break and close the current in a circuit. It is particularly suitable for frequent operations and harsh environments such as high altitudes and low temperatures.Vacuum circuit breakers are mainly used to open and close load current, overload current and short-circuit current in power systems, and are important protection and control equipment in distribution networks.

Features:

High reliability: vacuum arc extinguishing, good breaking performance, high safety and reliability.
Long life: It has the characteristics of long life and maintenance-free, and the maintenance workload is small.
Small size and light weight: Compared with other types of circuit breakers, vacuum circuit breakers are smaller in size and lighter in weight, which is easy to install and maintain.
Good insulation performance: Vacuum silicone grease is used to fill the arc extinguishing chamber and the insulating cylinder, which has good sealing, anti-aging, high voltage resistance, and high insulation level.
Strong adaptability: It is suitable for harsh environments such as high altitude and low temperature, and effectively solves the condensation problem, avoiding defects caused by inflation and oil filling.
Wide application: It is suitable for substations, industrial and mining enterprises distribution systems, and places where the power grid is frequently operated. It can be matched with controllers and has excellent recloser functions to meet the requirements of distribution automation systems.
