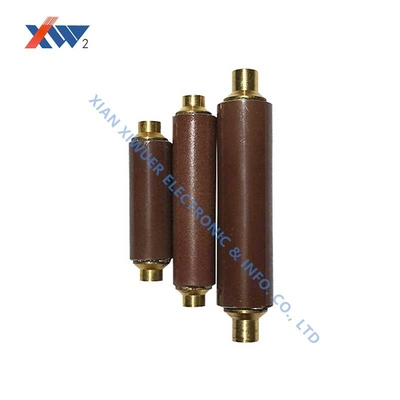

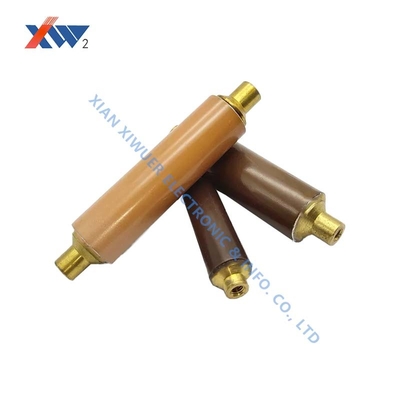

High voltage ceramic capacitor core rod 12kv 5pF

  • High voltage ceramic capacitor core rod 12kv 5pF
  • High voltage ceramic capacitor core rod 12kv 5pF
Place of Origin XIAN, CHINA
Brand Name XIWUER
Certification ISO9001,ISO14001,ISO45001
Model Number 12kv 5pF
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton
Delivery Time 5-7 days
Payment Terms L/C,T/T
Supply Ability 8,000,000 a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
You can tick the products you need and communicate with us in the message board.
Leave a Message
Product Description
High Voltage Ceramic Capacitor Core Rod 12kV 5pF
Product Description

High voltage ceramic capacitor core rod designed for 3.6kV to 40.5kV high voltage presence indicating devices.

Key Features
  • Rated Voltage: 12kV AC
  • Nominal Capacitance: 5pF
  • Test Frequency: 1kHz ±20%
  • Test Voltage: 1V ±0.2V (4~6 range)
  • Withstand Voltage (in insulating oil): 52kV AC/5min
  • Partial Discharge: ≤10pC at 13.2kV AC
  • Lightning Impulse (1.2/5μs): 75kV
Technical Specifications
• Partial discharge not exceeding 5pC at 1.1 times rated voltage (unless otherwise specified)
• Complies with standard DL/T538-2006 (High Voltage Presence Indication Device)
• Complies with standard JB/T10305-2001 (Technical conditions for post insulator of organic material)
Customization & Notes
Dimensions can be customized according to customer requirements.
Special attention required to prevent product damage, moisture, and contamination.
For installations below 100 meters or in high altitude areas, please specify in order notes.
