High Voltage Ceramic Capacitor Core Rod 12kv 5pF Essential Component For High Voltage Applications

Name: High Voltage Ceramic Capacitor Core Rod 12kv 5pF Essential Component For High Voltage Applications
Brand: XIAN XIWUER ELECTRONIC AND INFO. CO., LTD
SKU: 12kv 5pF
Price: negotiable USD
Availability: InStock

Brand Name:	XIWUER
Model Number:	12kv 5pF
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	8,000,000 a year

Detail Information

Product Description

Detail Information

Place of Origin:

XIAN, CHINA

Certification:

ISO9001,ISO14001,ISO45001

Packaging Details:

Carton

Supply Ability:

8,000,000 a year

Highlight:

12kv Ceramic Capacitor Core Rod

High Voltage Ceramic Capacitor Core Rod

Essential Component High Voltage Ceramic Capacitor

Product Description

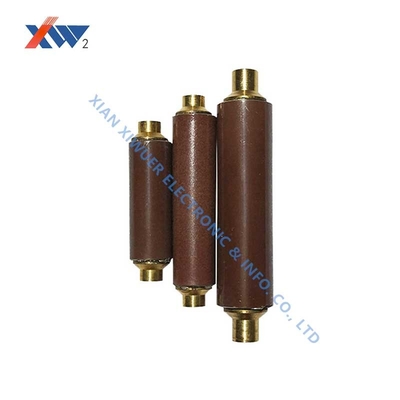

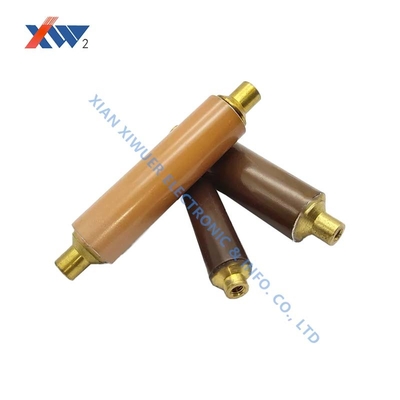

High Voltage Ceramic Capacitor Core Rod 12kV 5pF

Product Description

High voltage ceramic capacitor core rod designed for 3.6kV to 40.5kV high voltage presence indicating devices.

Key Features

Rated Voltage: 12kV AC
Nominal Capacitance: 5pF
Test Frequency: 1kHz ±20%
Test Voltage: 1V ±0.2V (4~6 range)
Withstand Voltage (in insulating oil): 52kV AC/5min
Partial Discharge: ≤10pC at 13.2kV AC
Lightning Impulse (1.2/5μs): 75kV

Technical Specifications

• Partial discharge not exceeding 5pC at 1.1 times rated voltage (unless otherwise specified)

• Complies with standard DL/T538-2006 (High Voltage Presence Indication Device)

• Complies with standard JB/T10305-2001 (Technical conditions for post insulator of organic material)

Customization & Notes

Dimensions can be customized according to customer requirements.
Special attention required to prevent product damage, moisture, and contamination.
For installations below 100 meters or in high altitude areas, please specify in order notes.
