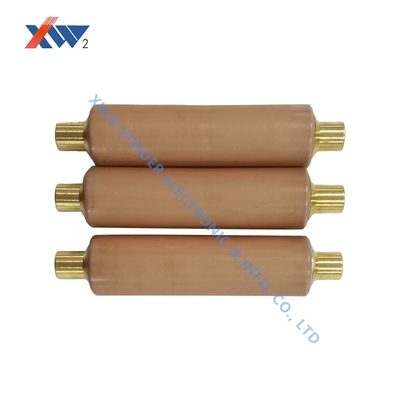

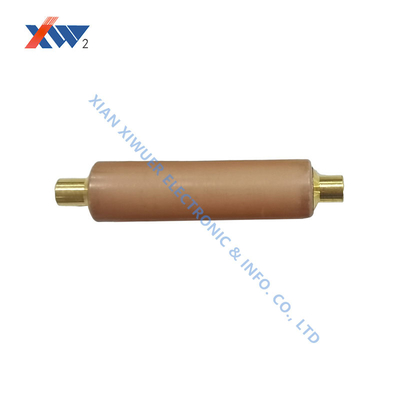

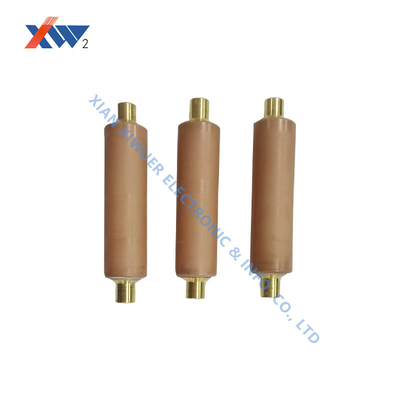

24kV High Voltage Ceramic Capacitor Core Rod 200pF
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Voltage | 24kv | Nominal Capacitance(pF) | 200 |
|---|---|---|---|
| Nominal Capacitance RangeTest Frequency1kHz+20%TestVoltage1V+0.2V | 180~220 | Withstand Voltage(In The Insulating Oil) | 70kVAC/5min |
| Partial Discharge | 26.4kVAC≤5pC | Lightning Impulse KV1.2/5μs | 125 |
| Highlight | 24kV ceramic capacitor core rod,high voltage ceramic capacitor 200pF,ceramic capacitor core with warranty |
||
You can tick the products you need and communicate with us in the message board.
Product Description
High Voltage Ceramic Capacitor Core Rod 24kV 200(400/500)pF
Product Specifications
| Attribute | Value |
|---|---|
| Rated Voltage | 24kV |
| Nominal Capacitance (pF) | 200 |
| Nominal Capacitance Range (Test Frequency: 1kHz±20%, Test Voltage: 1V±0.2V) | 180~220 |
| Withstand Voltage (In insulating oil) | 70kV AC/5min |
| Partial Discharge | 26.4kV AC ≤5pC |
| Lightning Impulse (kV 1.2/5μs) | 125 |
Key Features
- High voltage ceramic capacitor core rod with 24kV AC rating
- Nominal capacitance of 200pF (options for 400pF/500pF available)
- Withstands 70kV AC for 5 minutes in insulating oil
- Low partial discharge (≤5pC at 26.4kV AC)
- Excellent lightning impulse withstand (125kV 1.2/5μs)
Application Areas
Vacuum Interrupter (Circuit Breaker Core): Metalized ceramic core rods (alumina-based) are used to manufacture vacuum interrupter cavities, providing airtight sealing and electrical insulation for high-voltage current interruption. Applications include mining circuit breakers and generator protection systems.
Live Display Device: Used in 10kV-40.5kV power systems to provide real-time indication of high-voltage conductor status, circuit breakers (SF6 and vacuum types), lightning arresters, or instrument transformers, ensuring operator safety.
Typical Parameters: Capacitance ranges from 10pF-230pF (e.g., 90pF at 24kV), with withstand voltage of 68kV (power frequency) and 125kV (lightning impulse).
Usage Instructions
- Partial discharge not to exceed 5pC at 1.1 times rated voltage unless otherwise specified
- Complies with standard DL/T538-2006 (High Voltage Presence Indication Device)
- Custom dimensions available per customer requirements
- Special attention required to prevent product damage, moisture, and contamination
- Complies with standard JB/T10305-2001 (Technical conditions for post insulator of organic material in 3.6kV-40.5kV high voltage equipment)
- For installations below 100 meters or in high altitude areas, please specify in order notes
