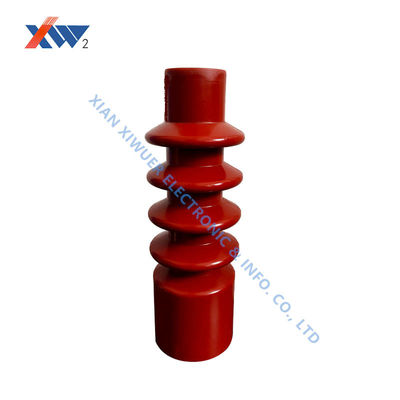

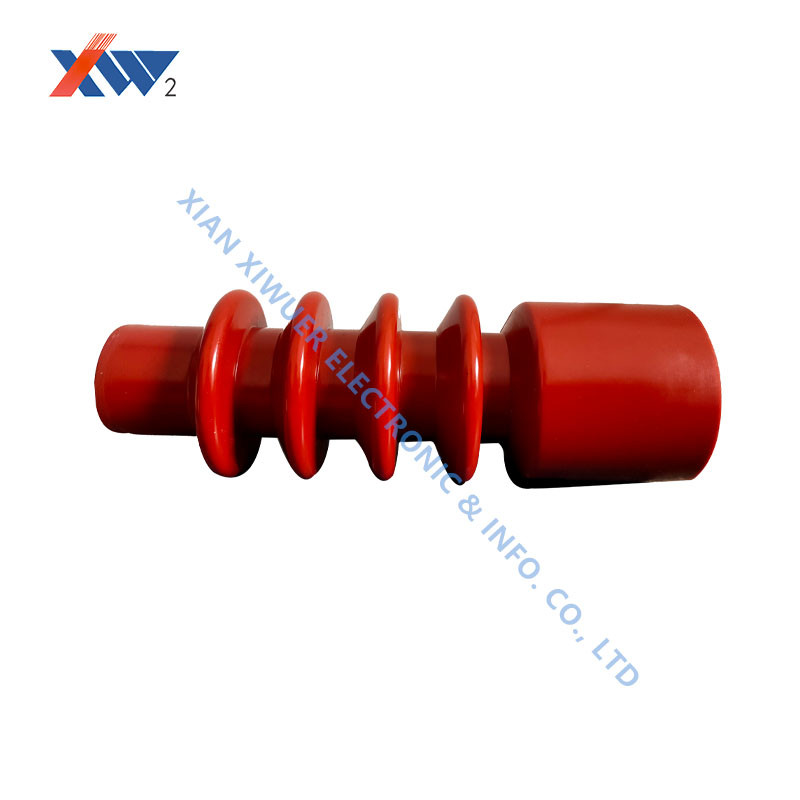

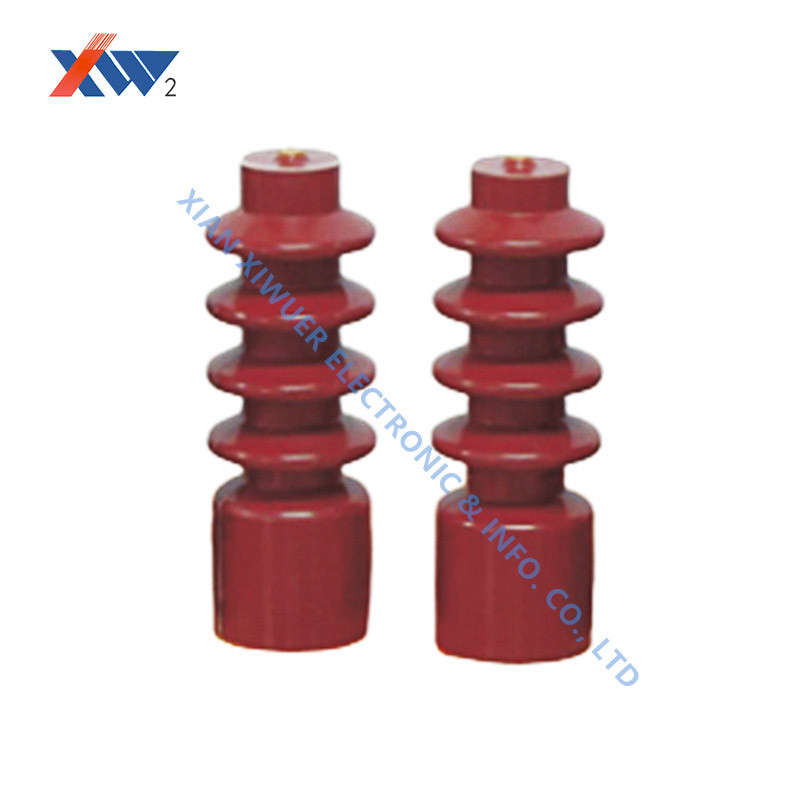

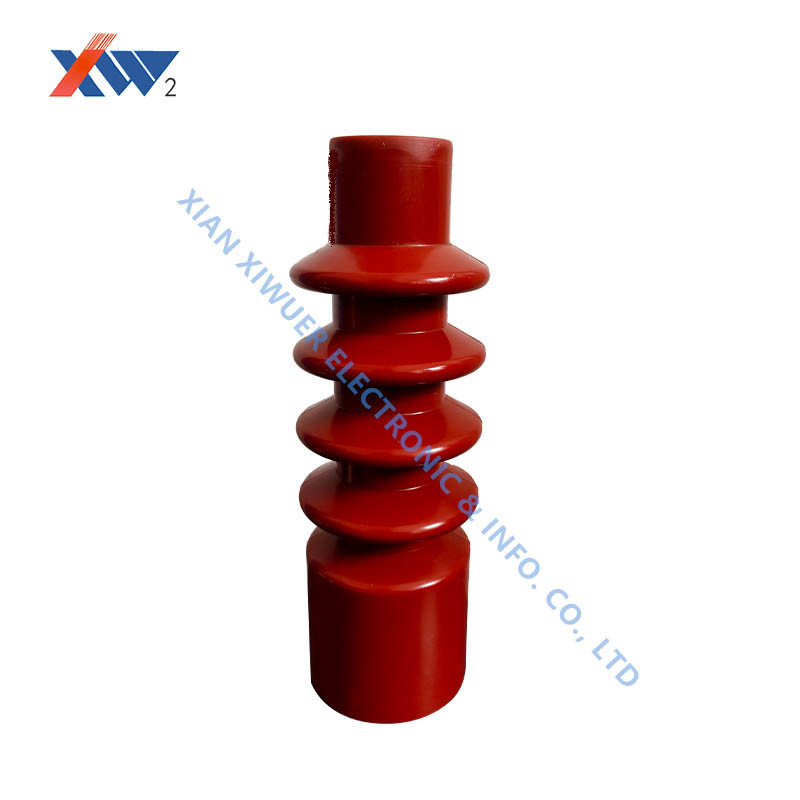

Outdoor/Indoor Capacitive voltage divider 12KV 3000PF Components of capacitive voltage transformers

Features

• Fuse and capacitor compose Built-in fuse. (outdoor);
• High safety. Ineffective capacitor will disconnect fuse and insulate high voltage bus and instrument as well;
• Do not destruct equipment of next process；
• Uvioresistant material for outdoor epoxy resin；
• Fuse is able to be used in severe conditions after thermocycling test 5 times(-30℃~85℃).

Main technical parameters of High Voltage Ceramic Capacitor

• System voltage:12kV；
• Capacitance: 2000~10000pF±20%；
• Dissipation:≤0.0040；
• Insulation resistance:>10⁵MΩ；
