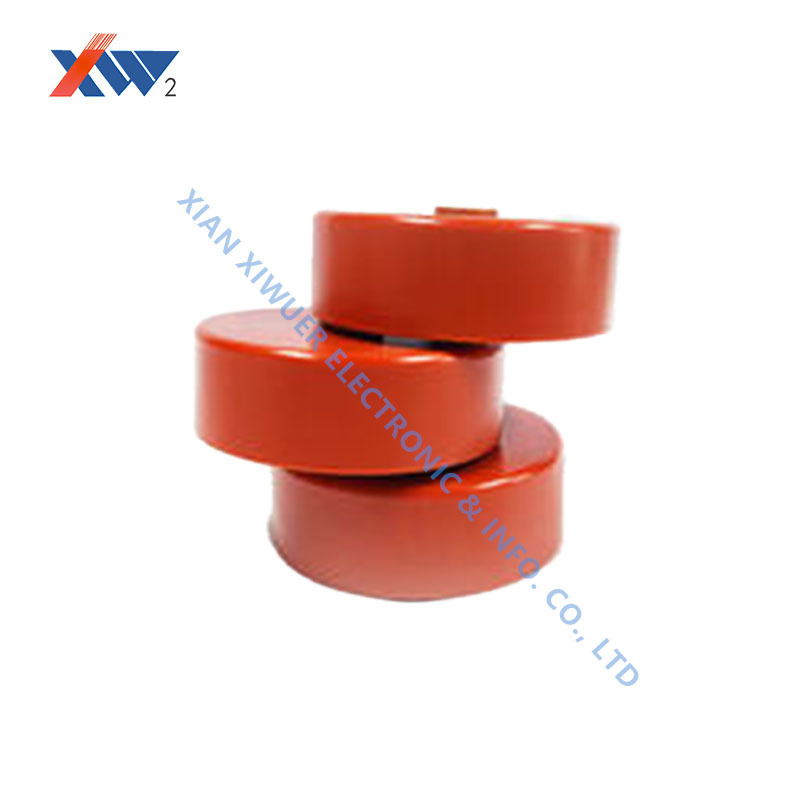

20kV 2000pF High Voltage Ceramic Capacitor

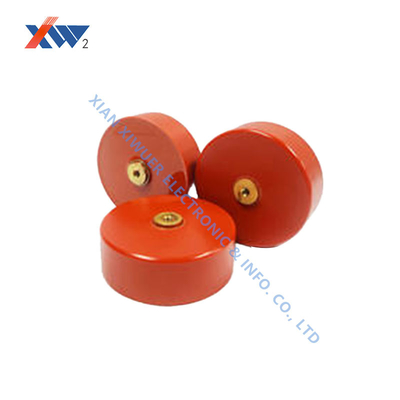

  • 20kV 2000pF High Voltage Ceramic Capacitor

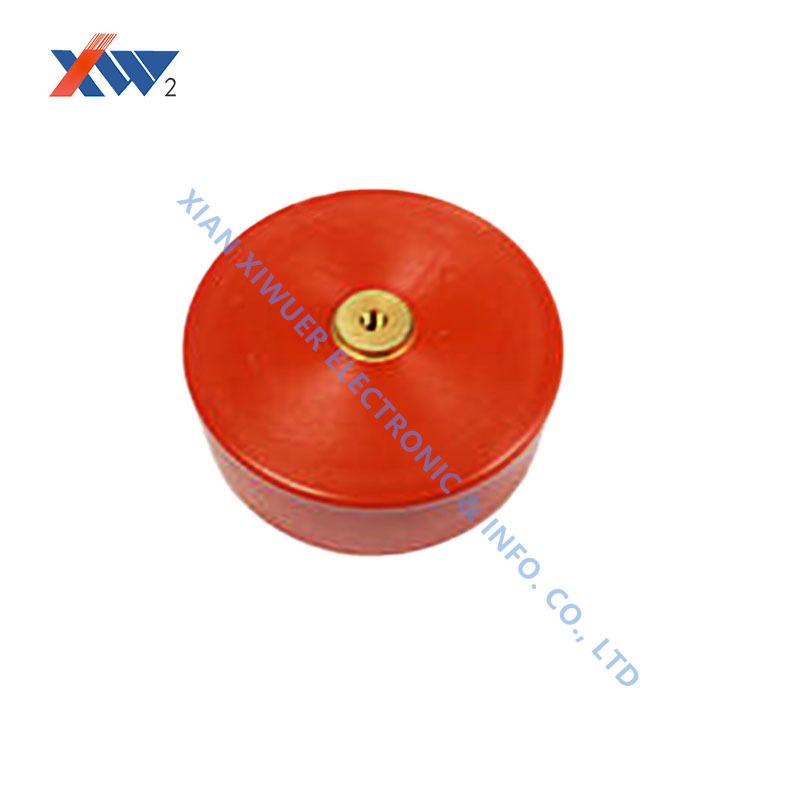

  • 20kV 2000pF High Voltage Ceramic Capacitor
  • 20kV 2000pF High Voltage Ceramic Capacitor
Place of Origin XIAN, SHANNXI CHINA
Brand Name XIWUER
Certification ISO9001,ISO14001,OHSAS18001
Model Number 20kV-2000pF
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details Carton
Delivery Time 10-15 days
Payment Terms L/C,T/T
Supply Ability 4,000,000 pcs a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Dissipation ≦0.0040 Withstanding Voltage 1.5Ur● 1min
Insulation Resistance ≧1.0×105MΩ Dimension(mm) 45*19*23*12*5
Highlight

20kV high voltage ceramic capacitor

,

2000pF doorknob capacitor

,

45x19mm high voltage capacitor
You can tick the products you need and communicate with us in the message board.
Leave a Message
Product Description
20kV-2000pF High Voltage Ceramic Capacitor
Product Overview

Ultra-high voltage ceramic capacitors are essential components for specialized industrial applications, offering high withstand voltage, low loss, and exceptional performance in high peak current and rapid pulse discharge scenarios.

Key Applications
  • Pulse power and laser equipment
  • Medical imaging systems
  • Industrial processing machinery
  • Power transmission and energy infrastructure
  • Scientific research and specialized industrial applications
20kV 2000pF High Voltage Ceramic Capacitor 0
Technical Specifications
No. Specification Dissipation Withstanding Voltage Insulation Resistance Dimensions (mm)
1 20kV-2000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 106MΩ D:45 | H:19 | L:23 | D:12 | M:5
2 20kV-10000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 106MΩ D:65 | H:15 | L:19 | D:12 | M:5
3 20kV-18000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 106MΩ D:80 | H:17 | L:25 | D:12 | M:5
4 30kV-1000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 106MΩ D:45 | H:24 | L:32 | D:12 | M:4
5 30kV-2700pF ≤0.0040 1.5Ur● 1min ≥1.0 x 106MΩ D:60 | H:20 | L:28 | D:12 | M:4
6 30kV-12000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 106MΩ D:45 | H:19 | L:23 | D:12 | M:5
7 40kV-150pF ≤0.0040 1.5Ur● 1min ≥1.0 x 106MΩ D:74 | H:18 | L:26 | D:12 | M:5
8 40kV-500pF ≤0.0040 1.5Ur● 1min ≥1.0 x 106MΩ D:28 | H:33 | L:41 | D:8 | M:4
9 40kV-7500pF ≤0.0040 1.5Ur● 1min ≥1.0 x 106MΩ D:80 | H:24 | L:29 | D:12 | M:6
10 40kV-10000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 106MΩ D:80 | H:22 | L:26 | D:16 | M:5
11 50kV-1000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 106MΩ D:50 | H:30 | L:34 | D:12 | M:4
12 50kV-1000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 106MΩ D:32 | H:27 | L:31 | D:16 | M:5
13 50kV-1000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 106MΩ D:80 | H:31 | L:35 | D:16 | M:5
14 50kV-1000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 106MΩ D:50 | H:31 | L:34 | D:12 | M:5
15 50kV-1000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 106MΩ D:65 | H:32 | L:35 | D:16 | M:5
16 50kV-1000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 106MΩ D:50 | H:54 | L:58 | D:12 | M:5
17 100kV-2000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 106MΩ D:51 | H:32 | L:35 | D:16 | M:5
18 100kV-1500pF(Insulator Type) ≤0.0040 1.5Ur● 1min ≥1.0 x 106MΩ D:68 | H:36 | L:40 | D:16 | M:5
19 150kV-820pF ≤0.0040 1.5Ur● 1min ≥1.0 x 106MΩ D:65 | H:95 | L:100 | D:12 | M:5
20 200kV-600pF ≤0.0040 1.5Ur● 1min ≥1.0 x 106MΩ D:50 | H:90 | L:94 | D:16 | M:5
Selection Guidelines

High-voltage ceramic capacitors require careful selection and handling. Consider these critical factors:

  • Voltage Margin: Operating voltage must be significantly below rated voltage, accounting for peak pulse conditions
  • Thermal Management: Proper heat dissipation is essential for high-frequency/high-current applications
  • Frequency Characteristics: Performance varies by dielectric material - consult detailed specifications
  • Safety Compliance: All design, installation and operation must follow strict safety regulations by qualified personnel
Product Certifications
20kV 2000pF High Voltage Ceramic Capacitor 1 20kV 2000pF High Voltage Ceramic Capacitor 2 20kV 2000pF High Voltage Ceramic Capacitor 3
Tags:

Doorknob Discs Ceramic Capacitor

DC High Voltage Doorknob Capacitors

Discs Hv Ceramic Capacitor
