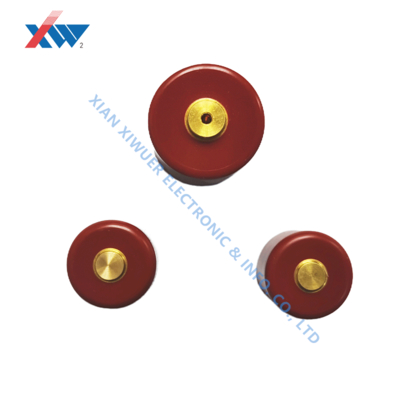

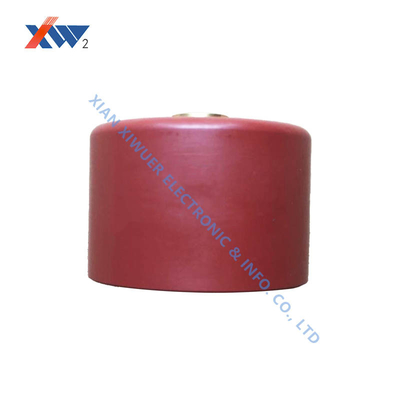

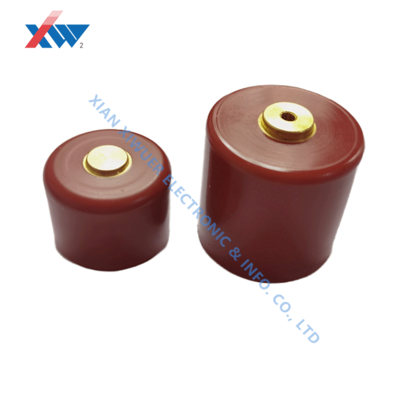

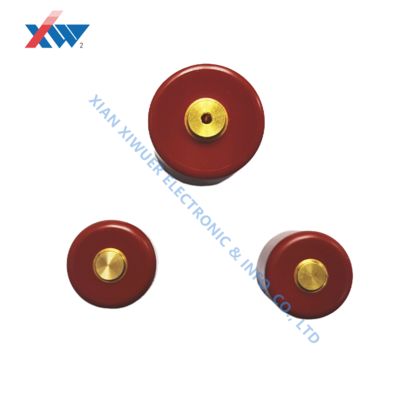

30kV 12000pF High Voltage Doorknob Capacitor 45x19x23mm

Name: 30kV 12000pF High Voltage Doorknob Capacitor 45x19x23mm
Brand: XIAN XIWUER ELECTRONIC AND INFO. CO., LTD
SKU: 30kV-12000pF
Price: negotiable USD
Availability: InStock

Brand Name:	XIWUER
Model Number:	30kV-12000pF
MOQ:	1 piece
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	4,000,000 pcs a year

Detail Information

Product Description

Detail Information

Place of Origin:

XIAN, SHANNXI CHINA

Certification:

ISO9001,ISO14001,OHSAS18001

Dissipation:

≦0.0040

Withstanding Voltage:

1.5Ur● 1min

Insulation Resistance:

≧1.0×105MΩ

Dimension(mm):

D:45 | H:19 | L:23 | D:12 | M:5

Packaging Details:

Carton

Supply Ability:

4,000,000 pcs a year

Highlight:

30kV high voltage doorknob capacitor

12000pF doorknob capacitor

45x19x23mm high voltage capacitor

Product Description

30kV-12000pF High Voltage Doorknob Capacitor

Product Overview

Ultra-high voltage ceramic capacitors are essential components for specialized industrial applications, offering high withstand voltage, low loss, and exceptional performance in high peak current and rapid pulse discharge scenarios.

Key Applications

Pulse power and laser equipment
Medical imaging systems
Industrial processing machinery
Power transmission and energy infrastructure
Scientific research and specialized industrial applications

Technical Specifications

No.	Specification	Dissipation	Withstanding Voltage	Insulation Resistance	Dimensions (mm)
1	20kV-2000pF	≤0.0040	1.5Ur● 1min	≥1.0 x 105MΩ	D:45 \| H:19 \| L:23 \| D:12 \| M:5
2	20kV-10000pF	≤0.0040	1.5Ur● 1min	≥1.0 x 105MΩ	D:65 \| H:15 \| L:19 \| D:12 \| M:5
3	20kV-18000pF	≤0.0040	1.5Ur● 1min	≥1.0 x 105MΩ	D:80 \| H:17 \| L:25 \| D:12 \| M:5
4	30kV-1000pF	≤0.0040	1.5Ur● 1min	≥1.0 x 105MΩ	D:45 \| H:24 \| L:32 \| D:12 \| M:4
5	30kV-2700pF	≤0.0040	1.5Ur● 1min	≥1.0 x 105MΩ	D:60 \| H:20 \| L:28 \| D:12 \| M:4
6	30kV-12000pF	≤0.0040	1.5Ur● 1min	≥1.0 x 105MΩ	D:45 \| H:19 \| L:23 \| D:12 \| M:5
7	40kV-150pF	≤0.0040	1.5Ur● 1min	≥1.0 x 105MΩ	D:74 \| H:18 \| L:26 \| D:12 \| M:5
8	40kV-500pF	≤0.0040	1.5Ur● 1min	≥1.0 x 105MΩ	D:28 \| H:33 \| L:41 \| D:8 \| M:4
9	40kV-7500pF	≤0.0040	1.5Ur● 1min	≥1.0 x 105MΩ	D:80 \| H:24 \| L:29 \| D:12 \| M:6
10	40kV-10000pF	≤0.0040	1.5Ur● 1min	≥1.0 x 105MΩ	D:80 \| H:22 \| L:26 \| D:16 \| M:5

Selection Guidelines

High-voltage ceramic capacitors require careful selection and handling. Consider these critical factors:

Voltage Margin: Operating voltage must be significantly below rated voltage, accounting for peak pulse conditions
Thermal Management: Proper heat dissipation is essential for high-frequency/high-current applications
Frequency Characteristics: Performance varies by dielectric material - consult detailed specifications
Safety Compliance: All design, installation and operation must follow strict safety regulations by qualified personnel
