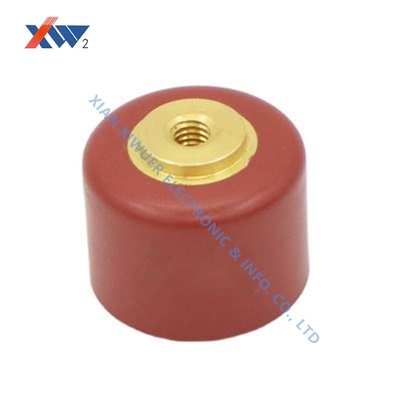

40kV 500pF High Voltage Doorknob Capacitor 28x33x41mm

  • 40kV 500pF High Voltage Doorknob Capacitor 28x33x41mm
  • 40kV 500pF High Voltage Doorknob Capacitor 28x33x41mm
  • 40kV 500pF High Voltage Doorknob Capacitor 28x33x41mm
Place of Origin XIAN, SHANNXI CHINA
Brand Name XIWUER
Certification ISO9001,ISO14001,OHSAS18001
Model Number 40kV 500pF
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details Carton
Delivery Time 10-15 days
Payment Terms L/C,T/T
Supply Ability 4,000,000 pcs a year
Product Details
Dissipation ≦0.0040 Withstanding Voltage 1.5Ur● 1min
Insulation Resistance ≧1.0×105MΩ Dimension(mm) D:28 | H:33 | L:41 | D:8 | M:4
Highlight

40kV high voltage doorknob capacitor

,

500pF high voltage capacitor

,

28x33x41mm doorknob capacitor
Leave a Message
Product Description
40kV 500pF High Voltage Doorknob Capacitor
Product Overview

Ultra-high voltage ceramic capacitors are essential components for specialized industrial applications, offering high withstand voltage, low loss, and exceptional performance in high peak current and rapid pulse discharge scenarios.

Key Applications
  • Pulse power and laser equipment
  • Medical imaging systems
  • Industrial processing machinery
  • Power transmission and energy infrastructure
  • Scientific research and specialized industrial applications
40kV 500pF High Voltage Doorknob Capacitor 28x33x41mm 0
Technical Specifications
No. Specification Dissipation Withstanding Voltage Insulation Resistance Dimensions (mm)
1 20kV-2000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:19 | L:23 | D:12 | M:5
2 20kV-10000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:65 | H:15 | L:19 | D:12 | M:5
3 20kV-18000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:17 | L:25 | D:12 | M:5
4 30kV-1000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:24 | L:32 | D:12 | M:4
5 30kV-2700pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:60 | H:20 | L:28 | D:12 | M:4
6 30kV-12000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:19 | L:23 | D:12 | M:5
7 40kV-150pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:74 | H:18 | L:26 | D:12 | M:5
8 40kV-500pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:28 | H:33 | L:41 | D:8 | M:4
9 40kV-7500pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:24 | L:29 | D:12 | M:6
10 40kV-10000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:22 | L:26 | D:16 | M:5
Selection Guidelines

High-voltage ceramic capacitors require careful selection and handling. Consider these critical factors:

  • Voltage Margin: Operating voltage must be significantly below rated voltage, accounting for peak pulse conditions
  • Thermal Management: Proper heat dissipation is essential for high-frequency/high-current applications
  • Frequency Characteristics: Performance varies by dielectric material - consult detailed specifications
  • Safety Compliance: All design, installation and operation must follow strict safety regulations by qualified personnel
Product Certifications

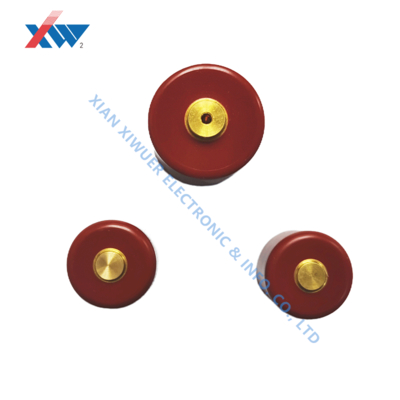

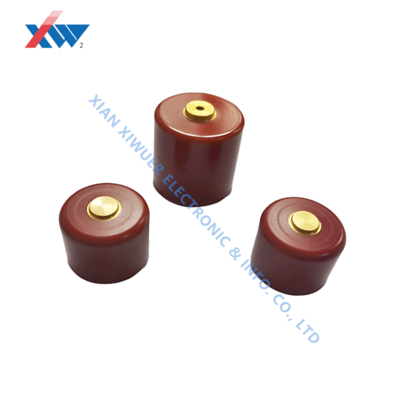

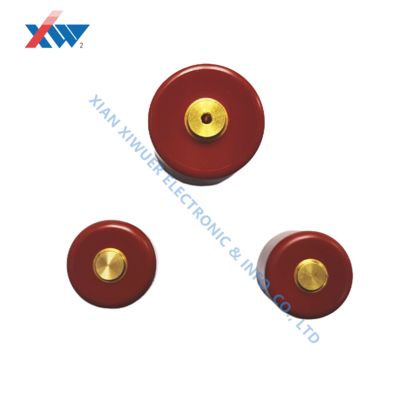

40kV 500pF High Voltage Doorknob Capacitor 28x33x41mm 1 40kV 500pF High Voltage Doorknob Capacitor 28x33x41mm 2 40kV 500pF High Voltage Doorknob Capacitor 28x33x41mm 3
Tags:

Doorknob Discs Ceramic Capacitor

DC High Voltage Doorknob Capacitors

Discs Hv Ceramic Capacitor
