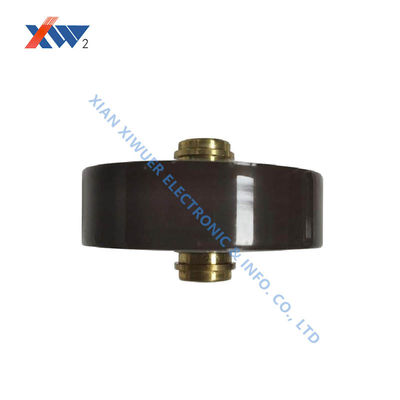

High Voltage Doorknob Capacitor with 3.5 kVAC to 14 kVAC Range High Current ≥50mA and Low Dissipation ≤0.0040 for Critical Applications

  • High Voltage Doorknob Capacitor with 3.5 kVAC to 14 kVAC Range High Current ≥50mA and Low Dissipation ≤0.0040 for Critical Applications
  • High Voltage Doorknob Capacitor with 3.5 kVAC to 14 kVAC Range High Current ≥50mA and Low Dissipation ≤0.0040 for Critical Applications
Place of Origin XIAN, SHANNXI CHINA
Brand Name XIWUER
Certification ISO9001,ISO14001,OHSAS18001
Model Number CT8-1
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details Carton
Delivery Time 10-15 days
Payment Terms L/C,T/T
Supply Ability 4,000,000 pcs a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Dissipation Factor 0.5% Isolation Materials Epoxy Resin Packaging & Delivery
Part No CT8-1 Temperature Coefficient NPO, X7R, Y5P
Voltage Range 10 KVDC To 40 KVDC / 3.5 KVAC To 14 KVAC Dissipation ≦0.0040
Screw Terminal Mouting M4 Iso Certifications ISO9001, ISO14001, And ISO45001
Supplier Type Original Manufacturer, ODM Dielectric Characteristic Class II X5U
High Current ≥50mA Dielectric Loss ≤0.0040
Dissipation Factorrange 0.5% Maximum
Highlight

3.5 kVAC to 14 kVAC High Voltage Doorknob Capacitor

,

High current ≥50mA HV Ceramic Capacitor

,

Low dissipation ≤0.0040 Pulse Power Capacitor
Leave a Message
Product Description

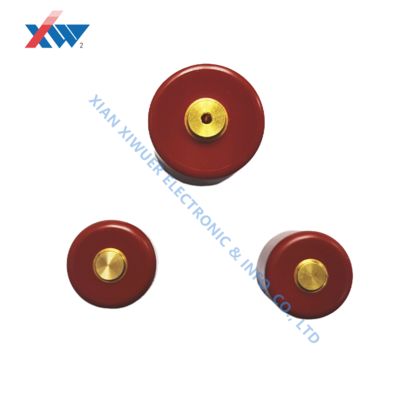

High Voltage Doorknob Capacitors
For Particle Accelerators, Nuclear Fusion Devices, Laser Processing, Non-Destructive Testing Equipment, and Medical Equipment
When your system needs to deliver megawatts of power in microseconds, you can't afford any uncertainty. Every discharge can impact the safety of multi-million dollar equipment, the success of critical experiments, and even the lives of operators. When you choose our pulse capacitors, you're choosing more than just a component—you're choosing a trusted partner.
No. Specification Dissipation Withstanding Voltage Insulation Resistance Dimensions (mm)
1 20kV-2000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:19 | L:23 | D:12 | M:5
2 20kV-10000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:65 | H:15 | L:19 | D:12 | M:5
3 20kV-18000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:17 | L:25 | D:12 | M:5
4 30kV-1000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:24 | L:32 | D:12 | M:4
5 30kV-2700pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:60 | H:20 | L:28 | D:12 | M:4
6 30kV-12000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:19 | L:23 | D:12 | M:5
7 40kV-150pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:74 | H:18 | L:26 | D:12 | M:5
8 40kV-500pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:28 | H:33 | L:41 | D:8 | M:4
9 40kV-7500pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:24 | L:29 | D:12 | M:6
10 40kV-10000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:22 | L:26 | D:16 | M:5
......
We Protect Your Core Values
Protecting the "Value of Exploration" for Scientific Pioneers
In particle accelerators or nuclear fusion devices, an unexpected capacitor breakdown can disrupt experiments for weeks or even months. The absolute reliability and exceptional lifespan of our products safeguard precious time and inspiration as scientists explore the unknown.
Protecting the "Value of Production" for Industrial Leaders
Every second counts on industrial production lines. Our capacitors for laser processing and non-destructive testing equipment, with their extremely high repetition rate tolerance and near-zero failure rate, ensure continuous operation of your customers' production lines, safeguarding their productivity and reputation.
Protecting the "Value of Life" through Medical Innovation
In medical devices such as proton therapy and precision laser surgery, pulse energy stability is directly linked to treatment effectiveness and patient safety. We adhere to the most stringent medical-grade quality standards, delivering not only products but also a solemn commitment to life.
Our Commitment is Rooted in Three Cornerstones
1. Ultimate Quality Control
From the selection of specialty ceramic powders to automated winding, vacuum impregnation, aging, and testing, we implement comprehensive process control. Every capacitor undergoes the following before shipment:
  • 100% High-Voltage Testing
  • 100% Capacitance and Dissipation Tangent Testing
  • Destructive Life Cycle Testing on a Random Sampling Basis
We deliver products with "zero-doubt" assurance.
2. In-depth Engineering Collaboration
We don't just wait for orders. Our team of pulsed power application engineers engages deeply with your design process from the beginning:
  • Simulation Support: Provides accurate SPICE models to help optimize circuit design
  • Failure Mode Analysis (FMEA): Collaborates to assess system risks and proactively mitigate them
  • Customized Development: Comprehensive customization from electrical parameters to physical structure
3. Global Service and Support
No matter where you are, when you need support, we are here:
  • Fast Sample Delivery: Accelerate your R&D process
  • Stable Supply Chain: Ensure worry-free mass production plans
  • Timely Technical Response: Professional technical feedback within 12 hours
