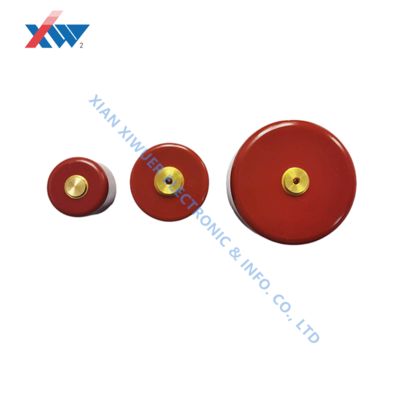

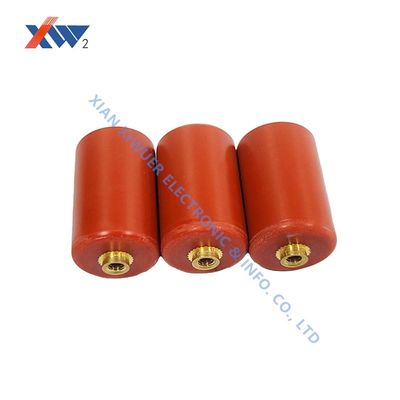

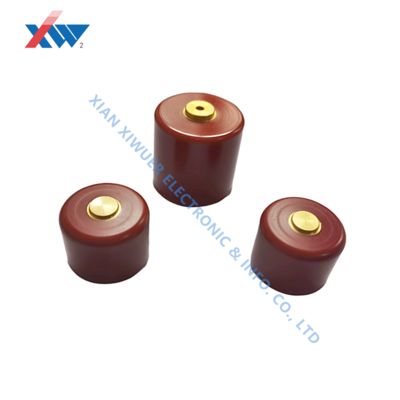

High-Voltage Doorknob Capacitor with Low Dissipation High Withstanding Voltage and High Insulation Resistance for Nondestructive Testing Equipment

  • High-Voltage Doorknob Capacitor with Low Dissipation High Withstanding Voltage and High Insulation Resistance for Nondestructive Testing Equipment
  • High-Voltage Doorknob Capacitor with Low Dissipation High Withstanding Voltage and High Insulation Resistance for Nondestructive Testing Equipment
  • High-Voltage Doorknob Capacitor with Low Dissipation High Withstanding Voltage and High Insulation Resistance for Nondestructive Testing Equipment
Place of Origin XIAN, SHANNXI CHINA
Brand Name XIWUER
Certification ISO9001,ISO14001,OHSAS18001
Model Number CT8-1-20kV-18000pF
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details Carton
Delivery Time 10-15 days
Payment Terms L/C,T/T
Supply Ability 4,000,000 pcs a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

Low Dissipation High-Voltage Doorknob Capacitor

,

High Withstanding Voltage HV Ceramic Capacitor

,

High Insulation Resistance High-Voltage Doorhandle Capacitor
Leave a Message
Product Description
High-Voltage Doorhandle Capacitors for Nondestructive Testing Equipment
Technical Specifications
No. Specification Dissipation Withstanding Voltage Insulation Resistance Dimensions (mm)
1 20kV-2000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:19 | L:23 | D:12 | M:5
2 20kV-10000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:65 | H:15 | L:19 | D:12 | M:5
3 20kV-18000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:17 | L:25 | D:12 | M:5
4 30kV-1000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:24 | L:32 | D:12 | M:4
5 30kV-2700pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:60 | H:20 | L:28 | D:12 | M:4
6 30kV-12000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:45 | H:19 | L:23 | D:12 | M:5
7 40kV-150pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:74 | H:18 | L:26 | D:12 | M:5
8 40kV-500pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:28 | H:33 | L:41 | D:8 | M:4
9 40kV-7500pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:24 | L:29 | D:12 | M:6
10 40kV-10000pF ≤0.0040 1.5Ur● 1min ≥1.0 x 105MΩ D:80 | H:22 | L:26 | D:16 | M:5
High-voltage doorhandle capacitors serve as the "heart of stability" for nondestructive testing equipment, providing the precise energy control required for X-ray testing, ultrasonic testing, and eddy current testing applications.
Nondestructive Testing Equipment Requirements
Nondestructive testing equipment demands high-voltage power supplies with:
  • Exceptional stability to prevent test signal fluctuations
  • Minimal ripple and noise for accurate test data
  • Robust shock resistance for frequent load changes
Core Functions
In high-voltage power modules, our doorhandle capacitors provide:
  • Filtering: Smooths high-frequency ripple for clean DC voltage output
  • Energy Storage: Buffers transient load changes to stabilize bus voltage
Key Advantages
  • Superior voltage stability with Class II/III ceramic dielectrics
  • Ultra-low ESR for effective high-frequency ripple filtering
  • Robust mechanical construction with screw terminals
  • Epoxy resin vacuum potting for environmental protection
Our high-voltage doorhandle capacitors provide the reliable foundation needed for precise nondestructive testing diagnostics, ensuring accurate results in demanding industrial environments.
