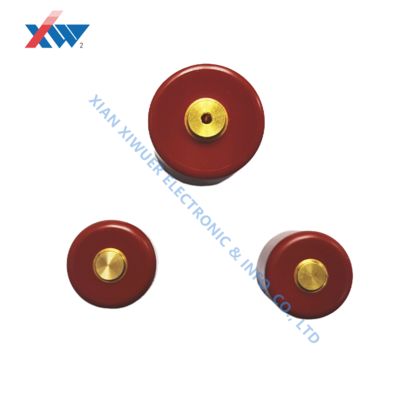

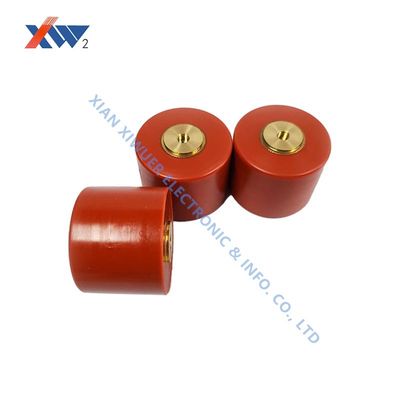

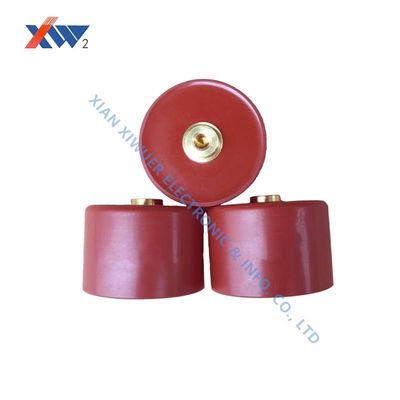

High Voltage Doorknob Capacitor HV Doorknob Capacitor with 20kV-2000pF 20kV-10000pF 20kV-18000pF for Industrial X-ray Imaging
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | 20kV-2000pF High Voltage Doorknob Capacitor,20kV-10000pF HV Doorknob Capacitor,20kV-18000pF Industrial X-ray Capacitor |
||
|---|---|---|---|
Product Description
High Voltage Doorknob Capacitors for Industrial X-ray Real-Time Imaging Systems
Technical Specifications
| No. | Specification | Dissipation | Withstanding Voltage | Insulation Resistance | Dimensions (mm) |
|---|---|---|---|---|---|
| 1 | 20kV-2000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:45 | H:19 | L:23 | D:12 | M:5 |
| 2 | 20kV-10000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:65 | H:15 | L:19 | D:12 | M:5 |
| 3 | 20kV-18000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:80 | H:17 | L:25 | D:12 | M:5 |
| 4 | 30kV-1000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:45 | H:24 | L:32 | D:12 | M:4 |
| 5 | 30kV-2700pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:60 | H:20 | L:28 | D:12 | M:4 |
| 6 | 30kV-12000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:45 | H:19 | L:23 | D:12 | M:5 |
| 7 | 40kV-150pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:74 | H:18 | L:26 | D:12 | M:5 |
| 8 | 40kV-500pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:28 | H:33 | L:41 | D:8 | M:4 |
| 9 | 40kV-7500pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:80 | H:24 | L:29 | D:12 | M:6 |
| 10 | 40kV-10000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:80 | H:22 | L:26 | D:16 | M:5 |
Sharp Observation: Noise-Free High-Voltage Power for X-ray Imaging
In high-end industrial X-ray real-time imaging systems, image clarity and signal-to-noise ratio directly determine defect detection capabilities. The system requires continuous, stable X-ray emission. Any fluctuations or noise in the high-voltage power supply will produce artifacts or noise in the image, obscuring critical information.
Power Supply Noise Impact on Image Quality
Ripple noise in the high-voltage power supply directly modulates X-ray intensity, resulting in:
- Uneven grayscale and fixed-pattern background noise
- Reduced visibility of small, low-contrast defects (microcracks, loose surfaces)
- Flickering streaks during dynamic imaging that affect judgment
Solution: Ultra-low ESR Doorknob Capacitors
Our high-voltage doorknob capacitors feature:
- Ultra-low equivalent series resistance (ESR) and inductance (ESL)
- Maintain extremely low impedance across high-frequency ranges (tens of kHz to MHz)
- Create a "current dead zone" for effective high-frequency ripple current bypass
- Deliver near-perfect DC high-voltage output
Customer Benefits
Improved Image Quality: Higher signal-to-noise ratios reveal micron-level defects
Enhanced Inspection Efficiency: Reduces repeated exposures and manual misjudgments
Increased System Reliability: Excellent heat dissipation ensures long life in continuous operation
Production Line Suitability: Ideal for in-line inspection equipment with stable performance
