High-voltage doorknob capacitors play a central role in advanced materials processing equipment // Plasma cleaning, magnetron sputtering, laser surface modification...

Place of Origin	XIAN, SHANNXI CHINA
Brand Name	XIWUER
Certification	ISO9001,ISO14001,OHSAS18001
Model Number	CT8-2-30kV-1000pF
Minimum Order Quantity	1 piece
Price	Negotiable
Packaging Details	Carton
Delivery Time	10-15 days
Payment Terms	L/C,T/T
Supply Ability	4,000,000 pcs a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Highlight

30kV-1000pF High Voltage Doorknob Capacitor

30kV-2700pF HV Ceramic Capacitor

30kV-12000pF Doorknob Capacitor

Leave a Message

Product Description

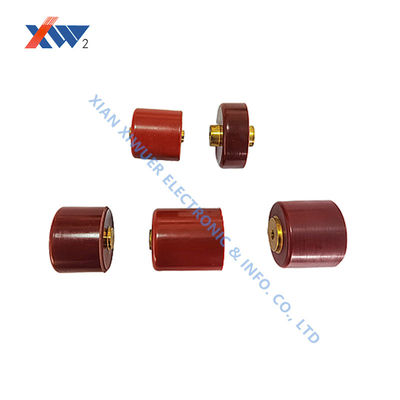

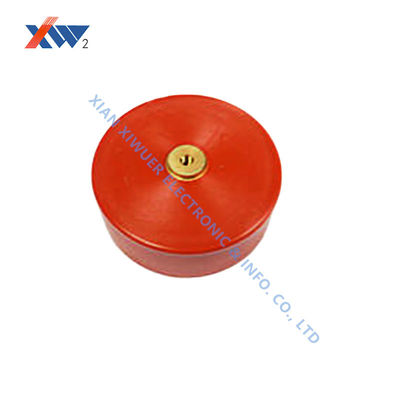

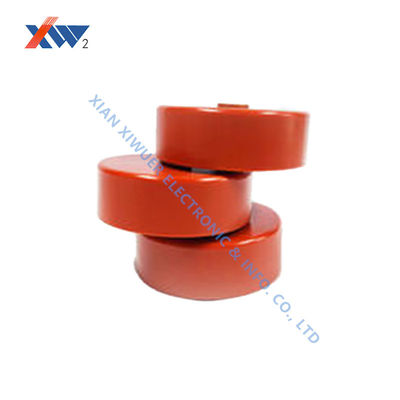

High-Voltage Doorknob Capacitors for Advanced Materials Processing

Essential components for plasma cleaning, magnetron sputtering, laser surface modification, and other advanced materials processing applications.

Technical Specifications

No.	Specification	Dissipation	Withstanding Voltage	Insulation Resistance	Dimensions (mm)
1	20kV-2000pF	≤0.0040	1.5Ur● 1min	≥1.0 x 10⁵MΩ	D:45 \| H:19 \| L:23 \| D:12 \| M:5
2	20kV-10000pF	≤0.0040	1.5Ur● 1min	≥1.0 x 10⁵MΩ	D:65 \| H:15 \| L:19 \| D:12 \| M:5
3	20kV-18000pF	≤0.0040	1.5Ur● 1min	≥1.0 x 10⁵MΩ	D:80 \| H:17 \| L:25 \| D:12 \| M:5
4	30kV-1000pF	≤0.0040	1.5Ur● 1min	≥1.0 x 10⁵MΩ	D:45 \| H:24 \| L:32 \| D:12 \| M:4
5	30kV-2700pF	≤0.0040	1.5Ur● 1min	≥1.0 x 10⁵MΩ	D:60 \| H:20 \| L:28 \| D:12 \| M:4
6	30kV-12000pF	≤0.0040	1.5Ur● 1min	≥1.0 x 10⁵MΩ	D:45 \| H:19 \| L:23 \| D:12 \| M:5
7	40kV-150pF	≤0.0040	1.5Ur● 1min	≥1.0 x 10⁵MΩ	D:74 \| H:18 \| L:26 \| D:12 \| M:5
8	40kV-500pF	≤0.0040	1.5Ur● 1min	≥1.0 x 10⁵MΩ	D:28 \| H:33 \| L:41 \| D:8 \| M:4
9	40kV-7500pF	≤0.0040	1.5Ur● 1min	≥1.0 x 10⁵MΩ	D:80 \| H:24 \| L:29 \| D:12 \| M:6
10	40kV-10000pF	≤0.0040	1.5Ur● 1min	≥1.0 x 10⁵MΩ	D:80 \| H:22 \| L:26 \| D:16 \| M:5

Precise Energy Control for Advanced Materials Processing

High-voltage doorknob capacitors serve as critical components in energy regulation and stabilization for:

Plasma cleaning systems
Magnetron sputtering equipment
Laser surface modification tools

Key Power Supply Requirements for Material Processing

Extremely stable and low noise: Ensures consistent plasma density, laser energy, and sputtering rates
Efficient pulse power capability: Supports high-frequency, high-energy instantaneous pulses
Strong load shock resistance: Maintains stability during plasma ignition and fluctuations

Core Functions in High-Voltage Power Systems

DC link support and filtering: Smooths high-frequency ripple for clean, stable DC high voltage
Pulse energy reservoirs: Stores and releases energy for high-peak power pulses

Our Capacitor Advantages

High energy density with rapid charge/discharge capabilities
Extremely low equivalent series inductance (ESL) for instantaneous energy delivery
Rugged epoxy resin vacuum casting with metal housing for industrial durability
Excellent resistance to moisture, dust, and chemical corrosion

Choosing our high-voltage doorknob capacitors ensures precision energy control for your most demanding material processing applications.
