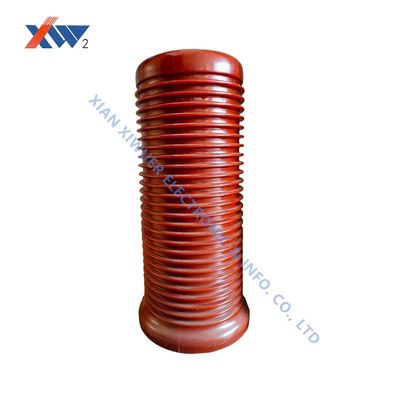

20kV-2000pF 30kV-1000pF 40kV-150pF High Voltage Doorknob Capacitor and Doorhandle Capacitor for Lightning Arresters

  • 20kV-2000pF 30kV-1000pF 40kV-150pF High Voltage Doorknob Capacitor and Doorhandle Capacitor for Lightning Arresters
  • 20kV-2000pF 30kV-1000pF 40kV-150pF High Voltage Doorknob Capacitor and Doorhandle Capacitor for Lightning Arresters
  • 20kV-2000pF 30kV-1000pF 40kV-150pF High Voltage Doorknob Capacitor and Doorhandle Capacitor for Lightning Arresters
  • 20kV-2000pF 30kV-1000pF 40kV-150pF High Voltage Doorknob Capacitor and Doorhandle Capacitor for Lightning Arresters
Place of Origin XIAN, CHINA
Brand Name XIWUER
Certification ISO9001,ISO14001,ISO45001
Model Number CT8-2-30KV-2700pF
Minimum Order Quantity 1pcs
Price Negotiable
Packaging Details Carton
Delivery Time 5-7days
Payment Terms L/C,T/T
Supply Ability 4,000,000 pcs a year
Product Details
Highlight

20kV-2000pF High Voltage Doorknob Capacitor

,

30kV-1000pF Doorhandle Capacitor

,

40kV-150pF HV Ceramic Capacitor
Leave a Message
Product Description
High Voltage Doorknob Capacitors: Selection Guide
Comprehensive guide for choosing the right doorhandle capacitor for your lightning arrester system.

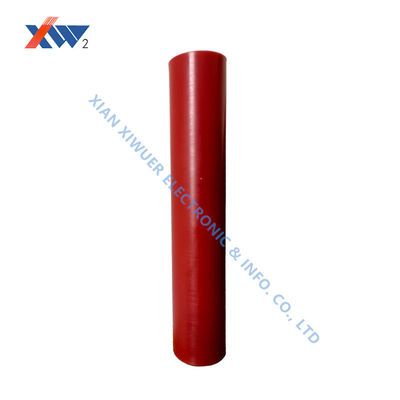

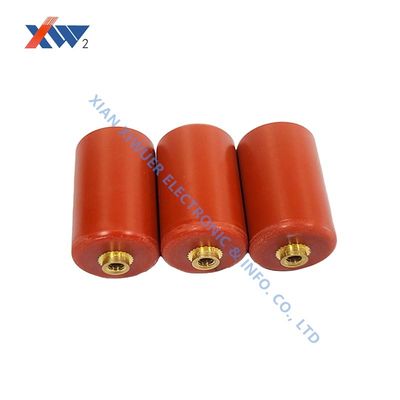

High Voltage Doorknob Capacitor product photo
Technical Specifications
No. Specification Dissipation Withstanding voltage Insulation resistance Dimension(mm)
1 20kV-2000pF








≦0.0040








1.5Ur● 1min








≧1.0×105MΩ

 D H L D M
2 20kV-10000pF 45 19 23 12 5
3 20kV-18000pF 65 15 19 12 5
4 30kV-1000pF 80 17 25 12 5
5 30kV-2700pF 45 24 32 12 4
6 30kV-12000pF 60 20 28 12 4
7 40kV-150pF 20 33 41 8 4
8 40kV-500pF 28 33 41 8 4
9 40kV-7500pF 80 24 29 12 6
10 40kV-10000pF 80 22 26 16 5
11 50kV-1000pF 50 30 34 12 4
12 50kV-1000pF 32 27 31 16 5
13 50kV-5600pF 80 31 35 16 5
14 60kV-1500pF 50 31 34 12 5
15 60kV-3000pF 65 32 35 16 5
16 100kV-500pF 50 54 58 12 5
17 100kV-2000pF 51 32 35 16 5
18 Insulator type 100kV-1500pF 68 36 40 16 5
19 150kV-820pF 65 95 100 12 5
20 200kV-600pF 50 90 94 16 5
Selection Criteria for Lightning Arrester Capacitors
Improper capacitor selection can compromise protection system integrity. Consider these critical parameters:
  • Rated voltage: Should exceed system's maximum continuous operating voltage (Uc) by 20% (e.g., 520V+ for 480V systems)
  • Capacitance Value & Pulse Withstand: Select based on required discharge energy (100pF-0.1µF range) with capacity for nominal discharge current (20kA/8/20µs)
  • Low Equivalent Series Inductance (ESL): ≤20nH to prevent pulse response delays
  • Environmental Adaptability: IP68 sealing for coastal areas, altitude compensation (1% Uc reduction per 100m above 2000m), vibration-resistant designs for wind turbines
High Voltage Doorknob Capacitor application diagram
High Voltage Doorknob Capacitor technical illustration
High Voltage Doorknob Capacitor installation example
Tags:

Doorknob Discs Ceramic Capacitor

DC High Voltage Doorknob Capacitors

Discs Hv Ceramic Capacitor
