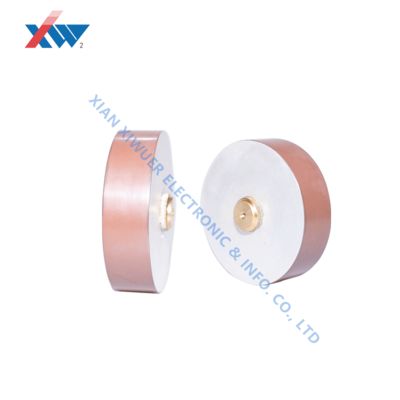

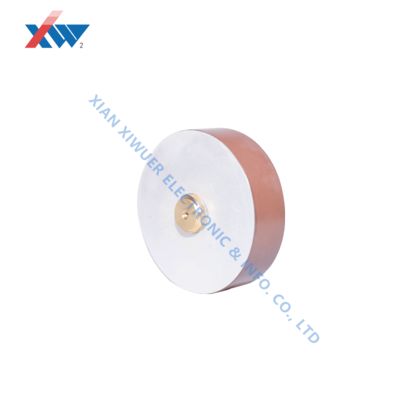

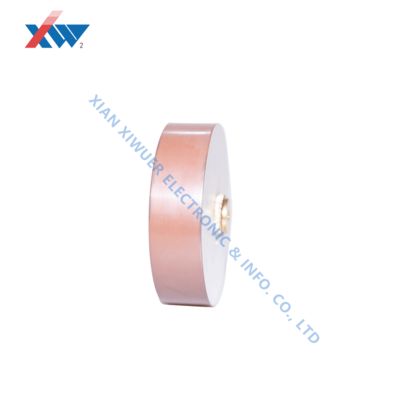

50KV 5600pF High Voltage Doorknob Capacitor for Smart Grid Lightning Protection with Precision Engineering and Pulse Power Applications
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | Smart Grid Lightning Protection High Voltage Doorknob Capacitor,Precision Engineering HV Doorknob Capacitor,Pulse Power Applications Ceramic Doorknob Capacitor |
||
|---|---|---|---|
You can tick the products you need and communicate with us in the message board.
Product Description
High Voltage Doorknob Capacitors: CT8-2-50KV-5600pF
Capacitor Solutions for Smart Grid Lightning Protection
Technical Specifications
| No. | Specification | Dissipation | Withstanding voltage | Insulation resistance | Dimension(mm) | ||||
| 1 | 20kV-2000pF |
≦0.0040 |
1.5Ur● 1min |
≧1.0×105MΩ |
D | H | L | D | M |
| 2 | 20kV-10000pF | 45 | 19 | 23 | 12 | 5 | |||
| 3 | 20kV-18000pF | 65 | 15 | 19 | 12 | 5 | |||
| 4 | 30kV-1000pF | 80 | 17 | 25 | 12 | 5 | |||
| 5 | 30kV-2700pF | 45 | 24 | 32 | 12 | 4 | |||
| 6 | 30kV-12000pF | 60 | 20 | 28 | 12 | 4 | |||
| 7 | 40kV-150pF | 20 | 33 | 41 | 8 | 4 | |||
| 8 | 40kV-500pF | 28 | 33 | 41 | 8 | 4 | |||
| 9 | 40kV-7500pF | 80 | 24 | 29 | 12 | 6 | |||
| 10 | 40kV-10000pF | 80 | 22 | 26 | 16 | 5 | |||
| 11 | 50kV-1000pF | 50 | 30 | 34 | 12 | 4 | |||
| 12 | 50kV-1000pF | 32 | 27 | 31 | 16 | 5 | |||
| 13 | 50kV-5600pF | 80 | 31 | 35 | 16 | 5 | |||
| 14 | 60kV-1500pF | 50 | 31 | 34 | 12 | 5 | |||
| 15 | 60kV-3000pF | 65 | 32 | 35 | 16 | 5 | |||
| 16 | 100kV-500pF | 50 | 54 | 58 | 12 | 5 | |||
| 17 | 100kV-2000pF | 51 | 32 | 35 | 16 | 5 | |||
| 18 | Insulator type 100kV-1500pF | 68 | 36 | 40 | 16 | 5 | |||
| 19 | 150kV-820pF | 65 | 95 | 100 | 12 | 5 | |||
| 20 | 200kV-600pF | 50 | 90 | 94 | 16 | 5 | |||
Smart Grid Lightning Protection Applications
With the advancement of smart grid technology, lightning protection systems are evolving from passive protection to active monitoring and predictive maintenance solutions. In smart SPDs integrated with NB-IoT technology, our high-voltage doorknob capacitors serve dual functions:
- Traditional filtering capabilities for surge protection
- Providing stable voltage sampling references for online monitoring circuits
For instance, in Dekai Technology's smart capacitor cabinet SPDs, these capacitors enable real-time data transmission of leakage current and temperature measurements via RS485 communication. The capacitors' exceptional performance characteristics include:
- Low voltage coefficient
- Linear temperature characteristics (±0.5% value change from -40°C to +85°C)
These features ensure precise monitoring data accuracy. In UHV substations, our custom doorknob capacitors (voltage ≥ 300kV) form RC absorption circuits with ZnO varistors, achieving:
- Over 60% reduction in switching overvoltage steepness
- Effective protection for GIS (gas insulated switchgear) against VFTO (fast transient overvoltage)
