High Voltage Doorknob Capacitor with Self-Resilience and IoT Integration for Lightning Protection Systems

  • High Voltage Doorknob Capacitor with Self-Resilience and IoT Integration for Lightning Protection Systems
  • High Voltage Doorknob Capacitor with Self-Resilience and IoT Integration for Lightning Protection Systems
  • High Voltage Doorknob Capacitor with Self-Resilience and IoT Integration for Lightning Protection Systems
Place of Origin XIAN, CHINA
Brand Name XIWUER
Certification ISO9001,ISO14001,ISO45001
Model Number 60kV-1500pF
Minimum Order Quantity 1pcs
Price Negotiable
Packaging Details Carton
Delivery Time 5-7days
Payment Terms L/C,T/T
Supply Ability 4,000,000 pcs a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

Self-Resilience High Voltage Doorknob Capacitor

,

IoT Integration HV Ceramic Capacitor

,

Lightning Protection Doorknob Capacitor
You can tick the products you need and communicate with us in the message board.
Leave a Message
Product Description
High Voltage Doorknob Capacitors
Future Trends - Lightning Protection Systems Integrating Self-Resilience and IoT

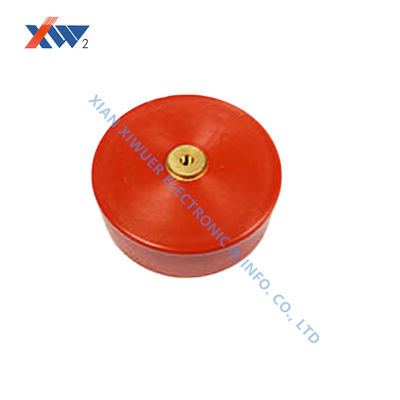

High Voltage Doorknob Capacitor with Self-Resilience and IoT Integration for Lightning Protection Systems 0
Technical Specifications
No. Specification Dissipation Withstanding voltage Insulation resistance Dimension(mm)
1 20kV-2000pF








≦0.0040








1.5Ur● 1min








≧1.0×105MΩ

 D H L D M
2 20kV-10000pF 45 19 23 12 5
3 20kV-18000pF 65 15 19 12 5
4 30kV-1000pF 80 17 25 12 5
5 30kV-2700pF 45 24 32 12 4
6 30kV-12000pF 60 20 28 12 4
7 40kV-150pF 20 33 41 8 4
8 40kV-500pF 28 33 41 8 4
9 40kV-7500pF 80 24 29 12 6
10 40kV-10000pF 80 22 26 16 5
11 50kV-1000pF 50 30 34 12 4
12 50kV-1000pF 32 27 31 16 5
13 50kV-5600pF 80 31 35 16 5
14 60kV-1500pF 50 31 34 12 5
15 60kV-3000pF 65 32 35 16 5
16 100kV-500pF 50 54 58 12 5
17 100kV-2000pF 51 32 35 16 5
18 Insulator type 100kV-1500pF 68 36 40 16 5
19 150kV-820pF 65 95 100 12 5
20 200kV-600pF 50 90 94 16 5
Future Trends in Lightning Protection
SPDs are evolving toward self-recovery and digitalization. Our silicon carbide (SiC) door handle capacitors automatically restore dielectric properties after repeated surges, offering three times the lifespan of traditional MOVs. IoT-enabled SPDs with built-in capacitors provide predictive maintenance through cloud connectivity.
  • Real-time monitoring of capacitance drift and ESL trends for early performance warnings
  • Surge frequency and peak energy recording for optimized protection strategies
  • Proven solutions in wind power and data center applications
  • Transforms SPDs from replaceable components to manageable assets

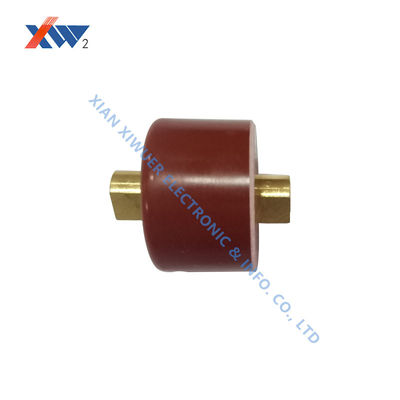

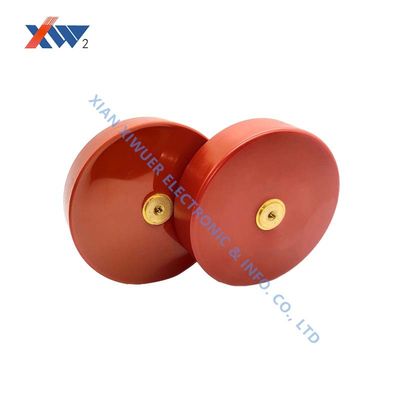

High Voltage Doorknob Capacitor with Self-Resilience and IoT Integration for Lightning Protection Systems 1 High Voltage Doorknob Capacitor with Self-Resilience and IoT Integration for Lightning Protection Systems 2 High Voltage Doorknob Capacitor with Self-Resilience and IoT Integration for Lightning Protection Systems 3
