Customized Solutions - UHV Measurement and Pulse Applications: High Voltage Doorknob Capacitors

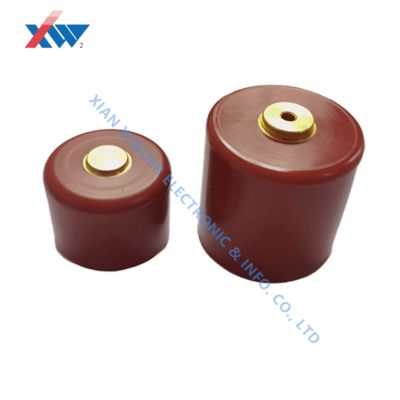

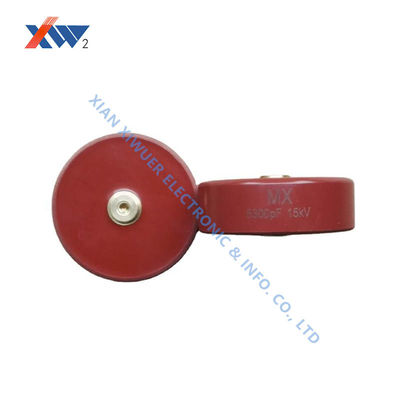

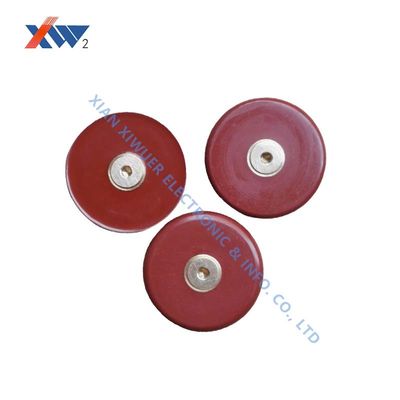

Customized High Voltage Doorknob Capacitors for UHV Measurement and Pulse Applications with 20kV-2000pF 30kV-1000pF 40kV-150pF Specifications 0
Technical Specifications
No. Specification Dissipation Withstanding voltage Insulation resistance Dimension(mm)
1 20kV-2000pF








≦0.0040








1.5Ur● 1min








≧1.0×105MΩ

 D H L D M
2 20kV-10000pF 45 19 23 12 5
3 20kV-18000pF 65 15 19 12 5
4 30kV-1000pF 80 17 25 12 5
5 30kV-2700pF 45 24 32 12 4
6 30kV-12000pF 60 20 28 12 4
7 40kV-150pF 20 33 41 8 4
8 40kV-500pF 28 33 41 8 4
9 40kV-7500pF 80 24 29 12 6
10 40kV-10000pF 80 22 26 16 5
11 50kV-1000pF 50 30 34 12 4
12 50kV-1000pF 32 27 31 16 5
13 50kV-5600pF 80 31 35 16 5
14 60kV-1500pF 50 31 34 12 5
15 60kV-3000pF 65 32 35 16 5
16 100kV-500pF 50 54 58 12 5
17 100kV-2000pF 51 32 35 16 5
18 Insulator type 100kV-1500pF 68 36 40 16 5
19 150kV-820pF 65 95 100 12 5
20 200kV-600pF 50 90 94 16 5
UHV Measurement and Pulse Applications
UHV (Ultra-High Voltage) power grids and pulse power measurement place extreme demands on voltage dividers:
  • DC transmission voltage dividers require capacitors with extremely high insulation resistance (≥105 MΩ) to suppress drift caused by DC leakage.
  • Surge voltage dividers require nanosecond response and low inductance to accurately capture the full lightning wave (1.2/50μs) or chopped wave (2-5μs).
By using customized doorknob capacitors (e.g., 500kV voltage, 500pF ±5%, ESL <15nH), the ZSRCF series voltage dividers can achieve AC ±1.5% and DC ±0.5% measurement accuracy, replacing high-voltage electrostatic voltmeters.
