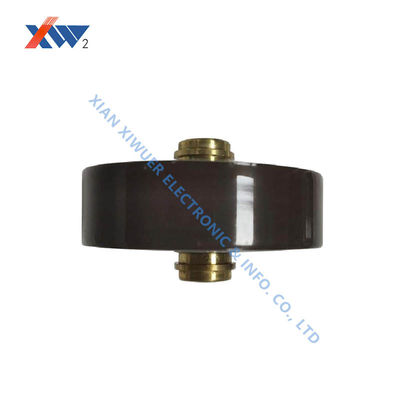

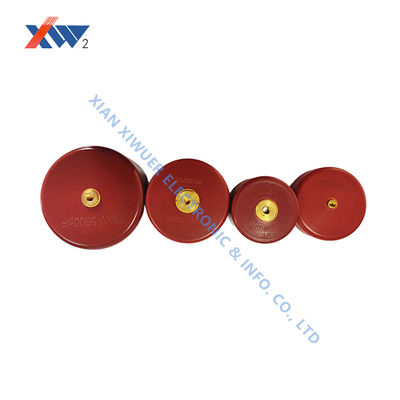

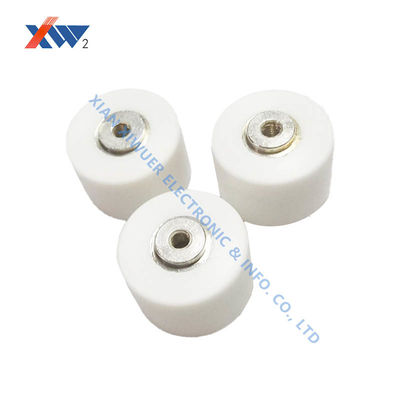

High Voltage Doorknob Capacitor with Smart Substation Integration Long-Term Stability and EMI Protection for Precision Engineering

  • High Voltage Doorknob Capacitor with Smart Substation Integration Long-Term Stability and EMI Protection for Precision Engineering
  • High Voltage Doorknob Capacitor with Smart Substation Integration Long-Term Stability and EMI Protection for Precision Engineering
  • High Voltage Doorknob Capacitor with Smart Substation Integration Long-Term Stability and EMI Protection for Precision Engineering
Place of Origin XIAN, CHINA
Brand Name XIWUER
Certification ISO9001,ISO14001,ISO45001
Model Number CT8-2-200KV-600pF
Minimum Order Quantity 1pcs
Price Negotiable
Packaging Details Carton
Delivery Time 5-7days
Payment Terms L/C,T/T
Supply Ability 4,000,000 pcs a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

Smart Substation Integration High Voltage Doorknob Capacitor

,

Long-Term Stability HV Ceramic Capacitor

,

EMI Protection Doorknob Capacitor
You can tick the products you need and communicate with us in the message board.
Leave a Message
Product Description
System Integration - The Role of Voltage Dividers in Smart Substations
High Voltage Doorknob Capacitor with Smart Substation Integration Long-Term Stability and EMI Protection for Precision Engineering 0
No. Specification Dissipation Withstanding voltage Insulation resistance Dimension(mm)
1 20kV-2000pF








≦0.0040








1.5Ur● 1min








≧1.0×105MΩ

 D H L D M

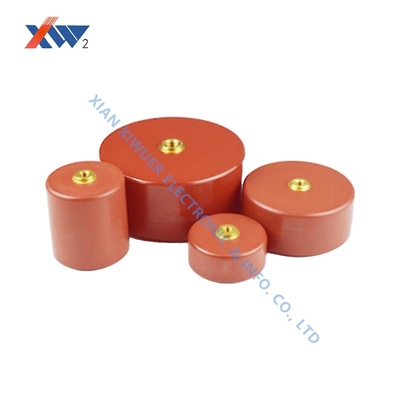

2 20kV-10000pF 45 19 23 12 5

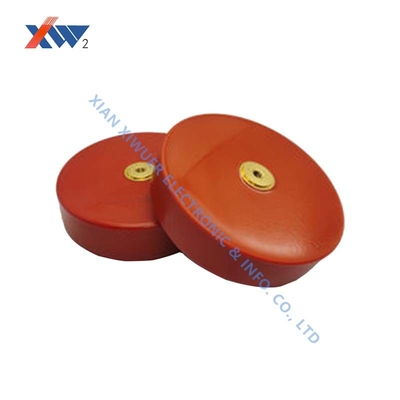

3 20kV-18000pF 65 15 19 12 5
4 30kV-1000pF 80 17 25 12 5
5 30kV-2700pF 45 24 32 12 4
6 30kV-12000pF 60 20 28 12 4
7 40kV-150pF 20 33 41 8 4
8 40kV-500pF 28 33 41 8 4
9 40kV-7500pF 80 24 29 12 6
10 40kV-10000pF 80 22 26 16 5
11 50kV-1000pF 50 30 34 12 4
12 50kV-1000pF 32 27 31 16 5
13 50kV-5600pF 80 31 35 16 5
14 60kV-1500pF 50 31 34 12 5
15 60kV-3000pF 65 32 35 16 5
16 100kV-500pF 50 54 58 12 5
17 100kV-2000pF 51 32 35 16 5
18 Insulator type 100kV-1500pF 68 36 40 16 5
19 150kV-820pF 65 95 100 12 5
20 200kV-600pF 50 90 94 16 5

In smart substations, capacitive voltage dividers serve not only as measurement units but also as signal sources for relay protection and metering equipment. The electromagnetic compatibility design of door handle capacitors (such as shielded electrodes and sealed packaging) protects against EMI interference caused by switching operations, outputting a pure voltage signal.

For example, in the State Grid "One-Button Sequential Control" project, voltage dividers use capacitor voltage division to obtain bus voltage. The long-term stability of the door handle capacitors (annual capacitance change <0.1%) ensures accurate timing determination of disconnector opening and closing.
