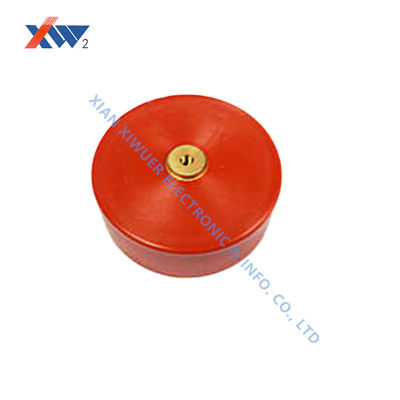

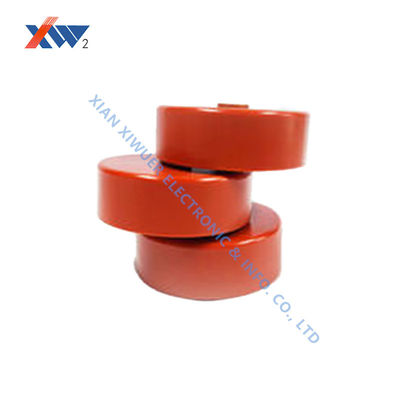

High Voltage Doorknob Capacitor for Synchrotron Radiation Source with DC Link Support and Pulse Energy Buffering

High Voltage Doorknob Capacitor for Synchrotron Radiation Source with DC Link Support and Pulse Energy Buffering

High Voltage Doorknob Capacitor for Synchrotron Radiation Source with DC Link Support and Pulse Energy Buffering

Brand Name:	XIWUER
MOQ:	1pcs
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	4,000,000 pcs a year

Detail Information

Product Description

Detail Information

Place of Origin:

XIAN, CHINA

Certification:

ISO9001,ISO14001,ISO45001

Document:

High Voltage Ceramic Capaci...25.pdf

Dissipation:

≦0.0040

Withstanding Voltage:

1.5Ur● 1min

Insulation Resistance:

≧1.0×105MΩ

Packaging Details:

Carton

Supply Ability:

4,000,000 pcs a year

Highlight:

Synchrotron Radiation Source High Voltage Doorknob Capacitor

,

DC Link Support HV Doorknob Capacitor

,

Pulse Energy Buffering Ceramic Doorknob Capacitor

Product Description

High-Voltage Doorknob Capacitor for Synchrotron Radiation Source Applications

High Voltage Doorknob Capacitor product image

Core Functions and Applications

In synchrotron radiation source high-voltage power supply systems, doorknob capacitors perform two critical functions:

DC Link Support and Filtering: Positioned at switching power supply outputs, they form the core of π-type or LC filter networks. Their superior high-frequency response and low equivalent series resistance effectively suppress high-frequency ripple, delivering smooth DC high voltage for electron guns and accelerating cavities.
Pulse Energy Buffering and Release: In pulsed magnet power supplies (including beam kicker and correction magnet power supplies), these capacitors serve as instantaneous energy reservoirs. They charge and discharge within milliseconds or microseconds, delivering high-peak pulse currents to ensure fast magnetic field waveform rise times and precise flat tops for accurate electron injection and extraction.

Technical Specifications

No.	Specification	Dissipation	Withstanding voltage	Insulation resistance	Dimension(mm)
1	20kV-2000pF	≦0.0040	1.5Ur_● 1min	≧1.0×105MΩ	D	H	L	D	M
2	20kV-10000pF				45	19	23	12	5
3	20kV-18000pF				65	15	19	12	5
4	30kV-1000pF				80	17	25	12	5
5	30kV-2700pF				45	24	32	12	4
6	30kV-12000pF				60	20	28	12	4
7	40kV-150pF				20	33	41	8	4
8	40kV-500pF				28	33	41	8	4
9	40kV-7500pF				80	24	29	12	6
10	40kV-10000pF				80	22	26	16	5
11	50kV-1000pF				50	30	34	12	4
12	50kV-1000pF				32	27	31	16	5
13	50kV-5600pF				80	31	35	16	5
14	60kV-1500pF				50	31	34	12	5
15	60kV-3000pF				65	32	35	16	5
16	100kV-500pF				50	54	58	12	5
17	100kV-2000pF				51	32	35	16	5
18	Insulator type 100kV-1500pF				68	36	40	16	5
19	150kV-820pF				65	95	100	12	5
20	200kV-600pF				50	90	94	16	5
