Beyond BOM Cost: The Lifecycle Value of High-Voltage Doorknob Capacitors in Synchrotron Radiation Sources

  • Beyond BOM Cost: The Lifecycle Value of High-Voltage Doorknob Capacitors in Synchrotron Radiation Sources
  • Beyond BOM Cost: The Lifecycle Value of High-Voltage Doorknob Capacitors in Synchrotron Radiation Sources
Place of Origin XIAN, CHINA
Brand Name XIWUER
Certification ISO9001,ISO14001,ISO45001
Document High Voltage Ceramic Capaci...25.pdf
Minimum Order Quantity 1pcs
Price Negotiable
Packaging Details Carton
Delivery Time 5-7days
Payment Terms L/C,T/T
Supply Ability 4,000,000 pcs a year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Dissipation ≦0.0040 Withstanding Voltage 1.5Ur● 1min
Insulation Resistance ≧1.0×105MΩ
Highlight

high voltage doorknob capacitors for synchrotrons

,

doorknob capacitors with lifecycle value

,

high voltage capacitors for radiation sources
Leave a Message
Product Description

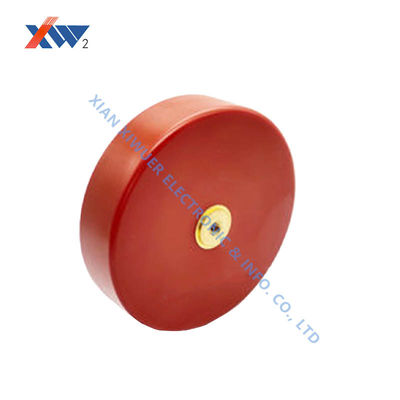

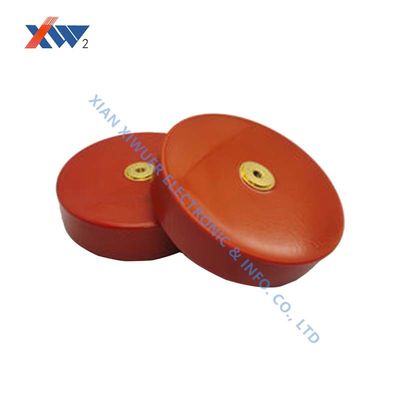

Beyond BOM Cost: The Lifecycle Value of High-Voltage Doorknob Capacitors in Synchrotron Radiation Sources

Drawing:
Beyond BOM Cost: The Lifecycle Value of High-Voltage Doorknob Capacitors in Synchrotron Radiation Sources 0

Parameters:

No. Specification Dissipation Withstanding voltage Insulation resistance Dimension(mm)
1 20kV-2000pF








≦0.0040








1.5Ur● 1min








≧1.0×105MΩ

 D H L D M
2 20kV-10000pF 45 19 23 12 5
3 20kV-18000pF 65 15 19 12 5
4 30kV-1000pF 80 17 25 12 5
5 30kV-2700pF 45 24 32 12 4
6 30kV-12000pF 60 20 28 12 4
7 40kV-150pF 20 33 41 8 4
8 40kV-500pF 28 33 41 8 4
9 40kV-7500pF 80 24 29 12 6
10 40kV-10000pF 80 22 26 16 5
11 50kV-1000pF 50 30 34 12 4
12 50kV-1000pF 32 27 31 16 5
13 50kV-5600pF 80 31 35 16 5
14 60kV-1500pF 50 31 34 12 5
15 60kV-3000pF 65 32 35 16 5
16 100kV-500pF 50 54 58 12 5
17 100kV-2000pF 51 32 35 16 5
18 Insulator type 100kV-1500pF 68 36 40 16 5
19 150kV-820pF 65 95 100 12 5
20 200kV-600pF 50 90 94 16 5




In major scientific projects like synchrotron radiation sources, which require significant investment and serve national strategic purposes, procurement decisions have long since shifted from a single "initial purchase cost" analysis to a more comprehensive "total cost of ownership" and "scientific output value" analysis. As a core component in a critical subsystem, the value of a high-voltage doorknob capacitor must be measured beyond its unit price.

Visible cost (initial):Capacitor purchase price

Unseen costs and risks (long term):

Unplanned downtime caused by premature capacitor failure results in the loss of valuable machine time (costly for user experimentation) and opportunities for scientific discovery.

Emergency on-site repairs incur high costs and the potential for damage to associated systems.

Slow degradation of capacitor performance (such as capacitance drift and increased losses) can lead to a subtle degradation in electron beam quality, impacting the accuracy and repeatability of experimental data across multiple beamlines.

Power supply noise or instability issues can prevent the achievement of designed brightness and stability specifications, hindering the full utilization of cutting-edge experimental capabilities and resulting in significant asset waste.

Our value proposition: Invest in reliability, reap the rewards of scientific discovery

Choosing our high-quality, high-voltage doorknob capacitors is a strategic investment in your facility's overall performance and scientific output:

Maximize facility availability and scientific output: Our extremely low failure rate translates directly into near-100% planned uptime, ensuring your users (research teams) can advance cutting-edge research on schedule and produce more and more significant scientific discoveries.

Maintain peak facility performance: Our exceptional long-term stability ensures that core indicators such as beam brightness and stability at synchrotron radiation sources continue to meet or approach their design values ​​years after they are operational, safeguarding the facility's international competitiveness.

.
